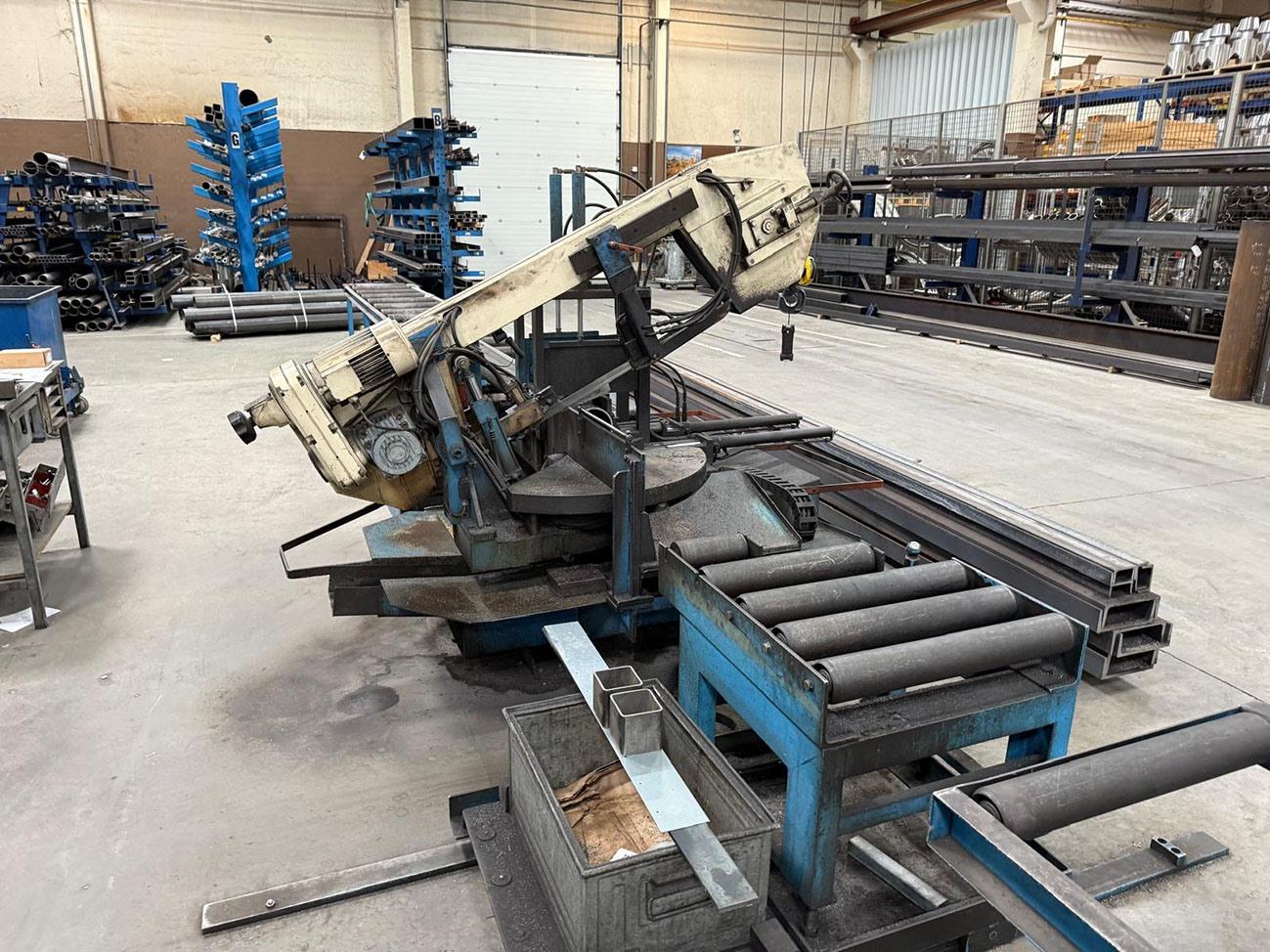

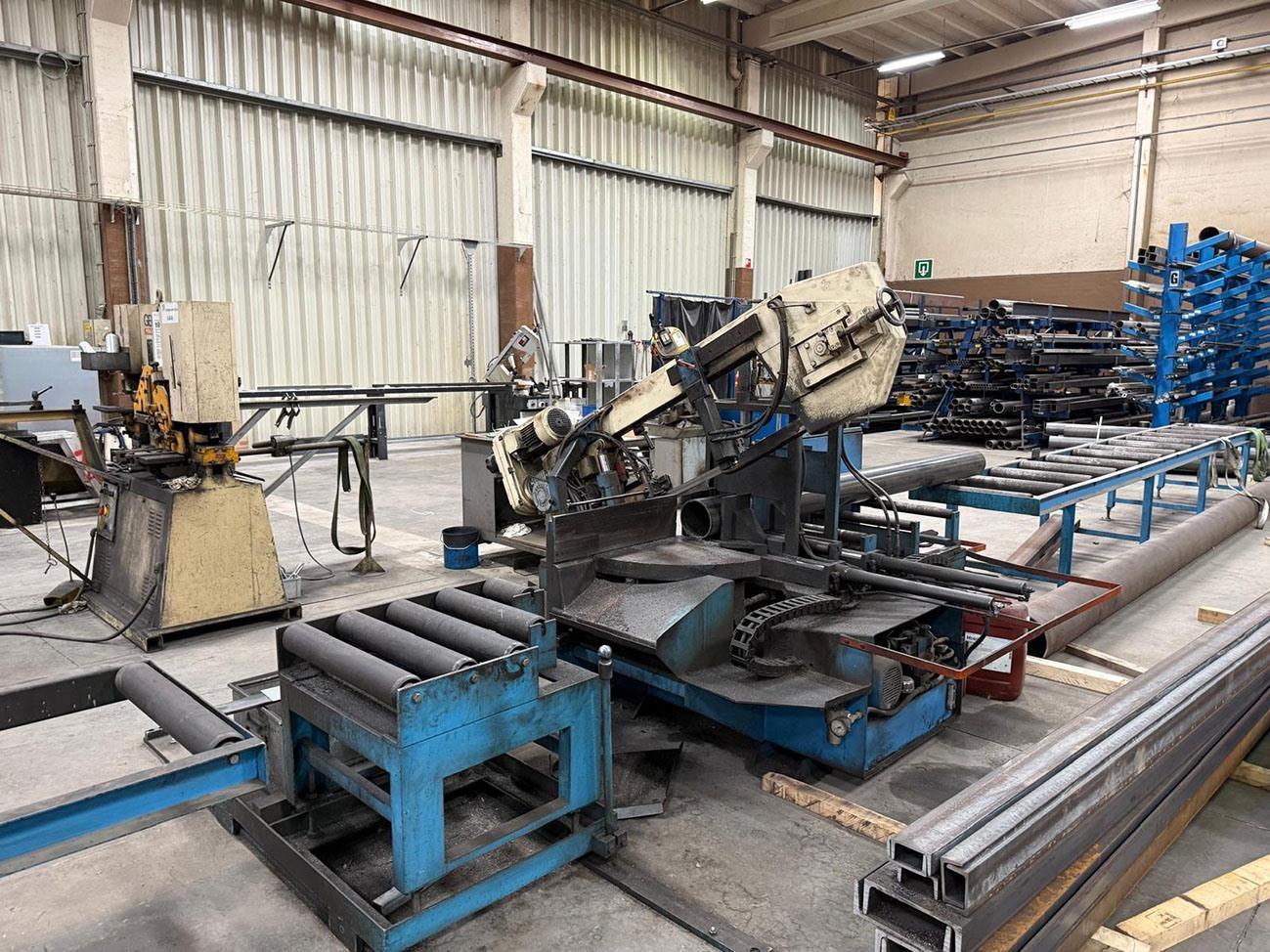

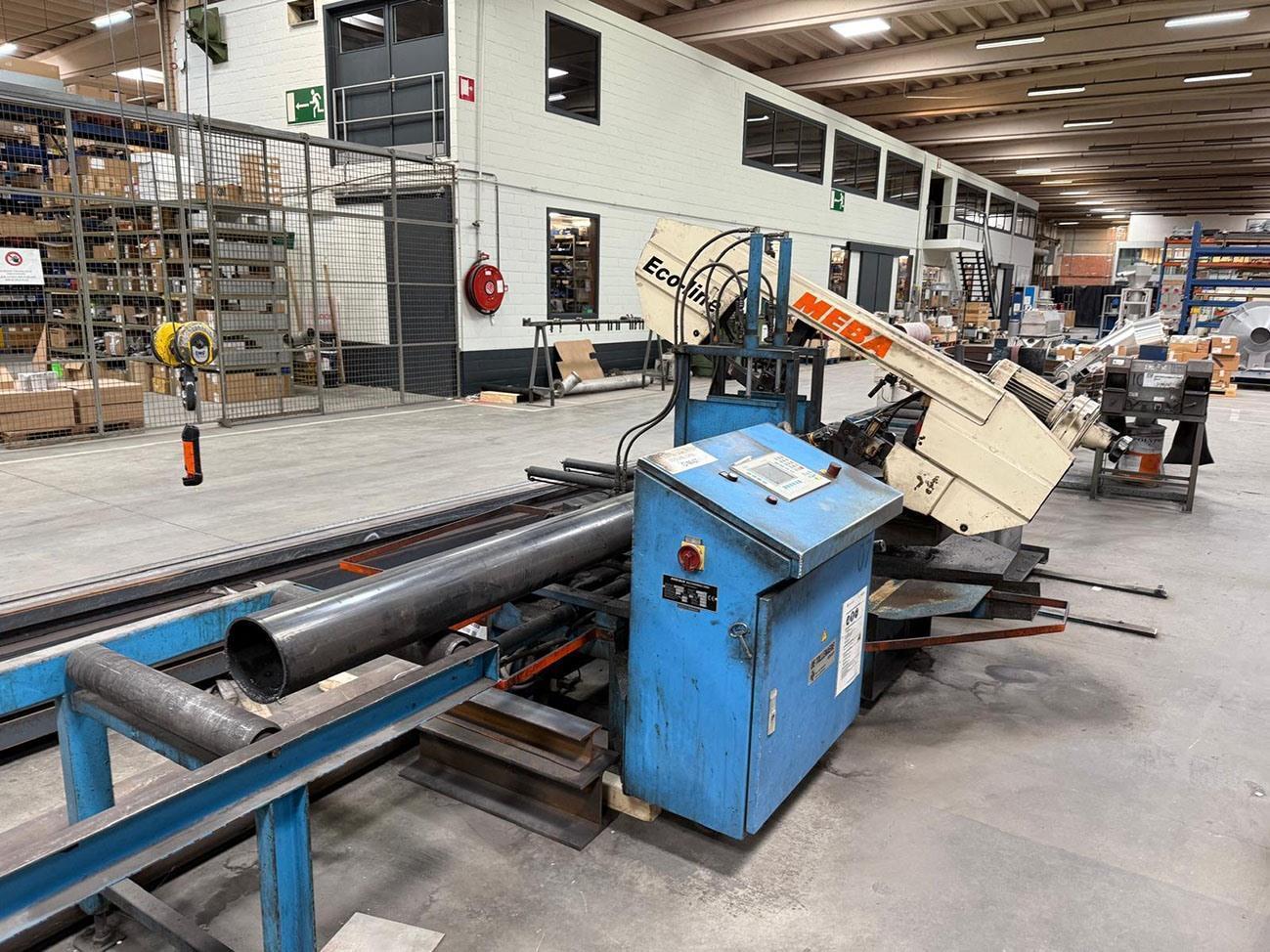

Band sawing machines Meba Eco-line 320 DGA automatic
Technical information
- Depth of throat500 mm
- Max height of workpiece325 mm
- Sawspeed18 > 115 m/min
- Length of band saw4400 x 34 x 1.1 mm
- Length 2680 mm
- Depth 2350 mm
- Height1350 mm
- Weight1800 kg
Additional info
- Full automatic bandsaw with bundle clamp and autofeed

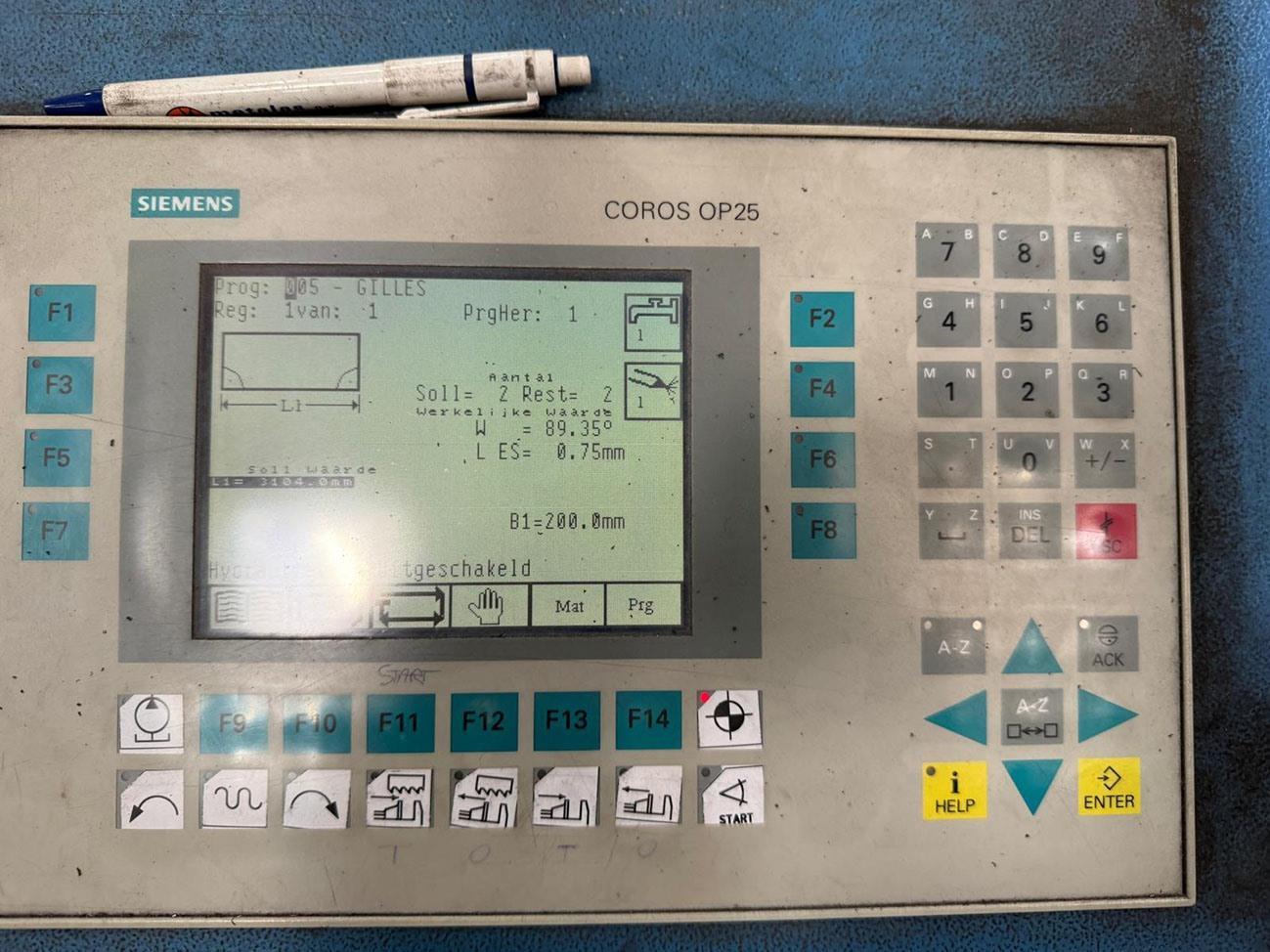

CNC controlled angle positioning
workpiece width in bundle clamping: 0-300 mm
workpiece height in bundle clamping: 5-300 mm
single material feed length: 0-600 mm
repeated material feed length: 0-9999 mm
maximum cutting capacity (90°, round): 325 mm
maximum cutting capacity (90°, rectangle): 500 x 300 mm
right mitre cut (45°, round): 300 mm
right mitre cut (45°, rectangle): 300 x 300 mm
right mitre cut (30°, round): 200 mm
right mitre cut (30°, rectangle): 200 x 200 mm
left mitre cut (45°, round): 300 mm
left mitre cut (45°, rectangle): 300 x 300 mm
- Type/Model: 320 DGA automatic
- Stocknumber: L.03 15939
- Main category: [L] Sawing machines, Filing machines & Cutting-off machines
- Sub category: [L.03] Band sawing machines
- Brand: Meba Eco-line
Stocknumber: L.03 15939
Watch video of working machinery
