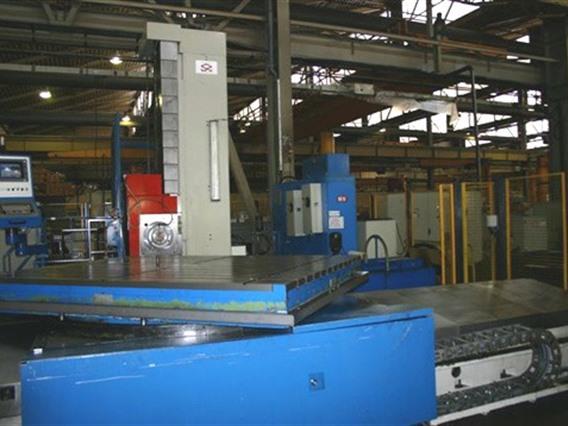

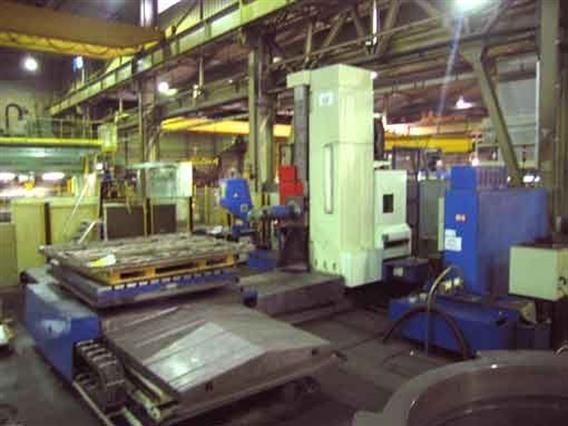

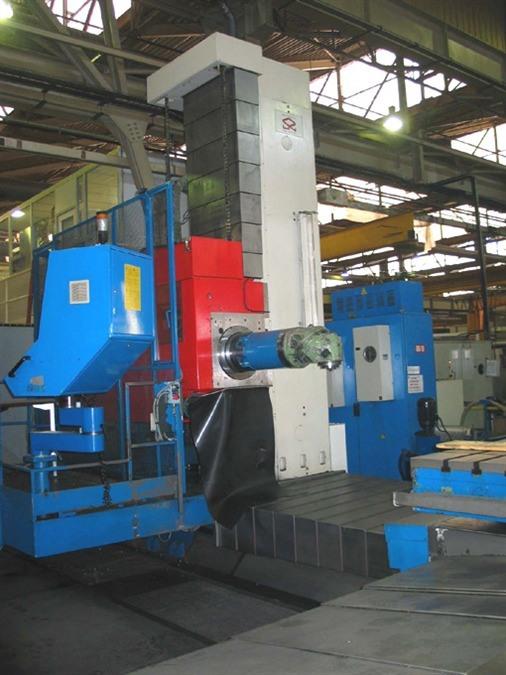

Futura - san rocco 130 R cnc
Technical information
- Longitudinal travel X-axe2566 mm
- Crosstravel Y -axe2200 mm
- Travel Z-axe (Height)2000 mm
- Admission in millingheadspindle (ISO)iso 50
- Universal (2x 360°) +
- Max quill travel Z'W-as,ram 680mm
- ControlECS CNC 2400
- Power needed380 V
Additional info
- Machine work 8 axis simultaneously.
C-as , ramturning +/- 182 ° simultaneous
B-as tableturning 360 ° simultaneous
A-as robotmillinghead +/- 91° simultaneous
C'-as controlled amount of spindle speed rotation - simultaneous, spindle-Sincron Tappen
Max dia horiz of workpiece 7300 mm
Spindle dia 130 mm;
Ram dia 325 mm
Equipment:

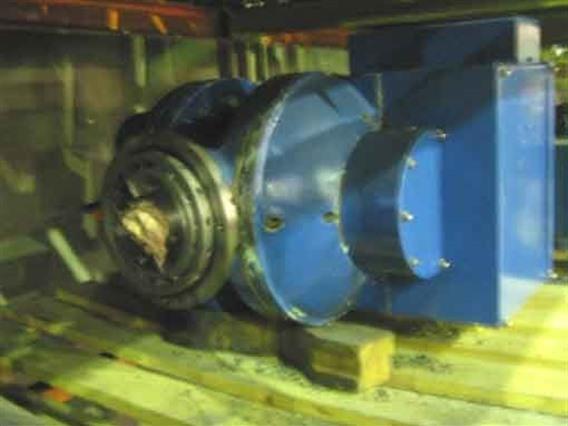

1 milling head type Robot , type Forest -Line, simulaneous
1 extention - dia 220 mm, lengte 600 mm
1 univers.millinghead, links-rechts 90°, manual with exention piece
1 Huron Head - milling head 2 x 360° manual with exention piece
Transport dimensions: ( L x B x H x weight)
1.Table + X as slide 7400 x 2500 x 1200 mm x 20 T
2. Slide without column 5500 x 1500 x 900 mm x 15T
3.Column 3900 x 2900 x 1300 mm x 12T
+/- 20 foot container full met hydraulic and electric tools
see more info F01 3030 and F02 3030
- Type/Model: 130 R cnc
- Stocknumber: B.04 3030 *06
- Main category: [B] Milling machines
- Sub category: [B.04] Bed milling machine with moving column & CNC
- Brand: Futura - san rocco
