Parpas ML120-1 -8 axes X: 12 000- Y: 3500- Z: 1250 mm CNC
Technical information
- Longitudinal travel X-axe12 000 mm
- Crosstravel Y -axe1250 mm (ram-travel)
- Travel Z-axe (Height)3500 mm
- Power on spindle37 kW
- Admission in millingheadspindle (ISO)ISO 50
- Max quill travel Z'1250 + 650 mm
- Max speedrange6 > 2000 rpm
- ControlHeidenhain
Additional info
Type: ML120-12000
6 axes simult. (X / Y / Z / W / B / V) + 2 axes indexing milling head (2,5°)
8 axes simult. (X / Y / Z / W / B / V) + continuous orthogonal milling head (A: +-120° / C: +-180°)
Heavy duty CNC milling & boring machine / CNC floor type borer & floor type milling

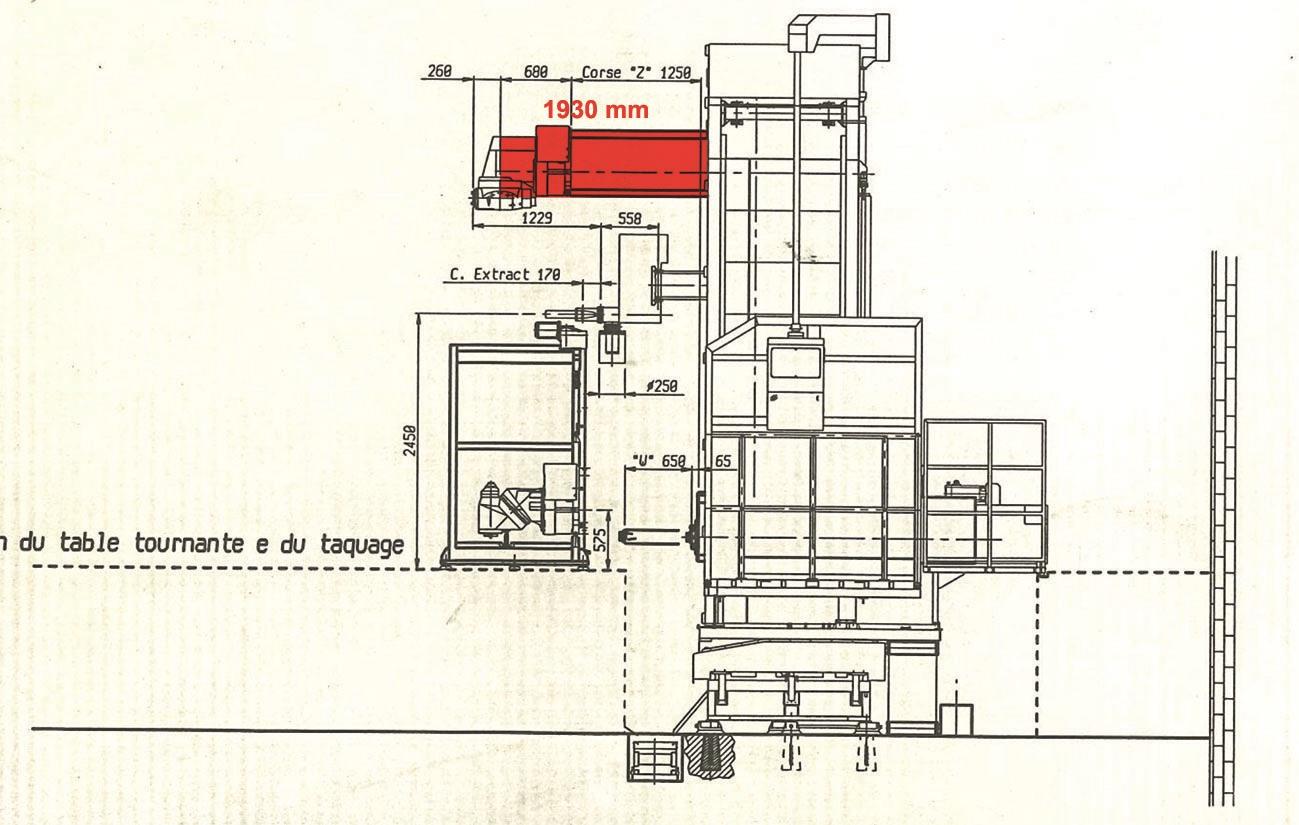

ram size: 630 x 500 mm - ram-travel: 1250 mm
spindle dia 130 mm - travel: 650 mm - without milling head you can use as borer

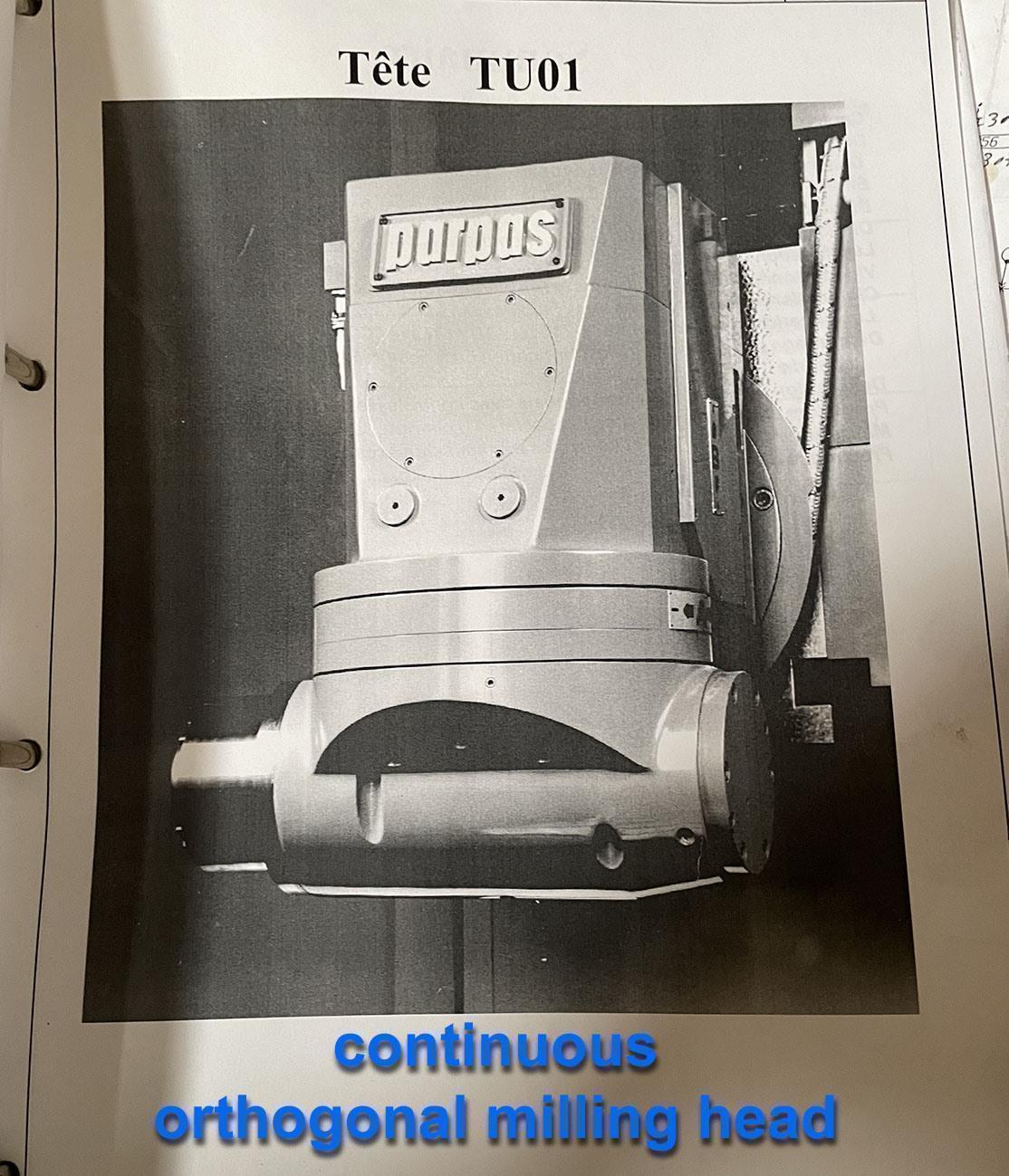

CNC continuous orthogonal milling head (A: +-120° / C: +-180°)
CNC indexing milling head (2,5°)
toolchanger for automatic changing two milling heads
cooling through spindle

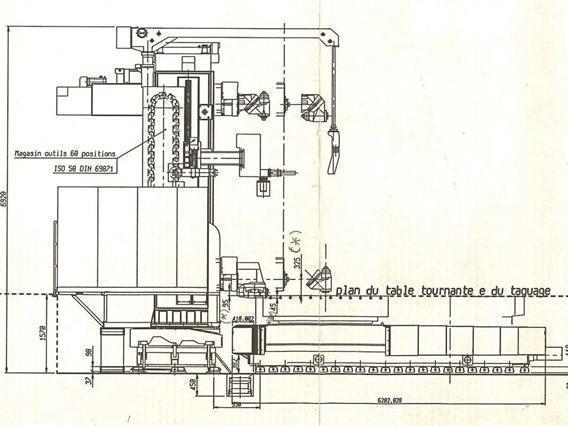

toolchanger with 60 positions
chipconveyor
Siemens drives & motors

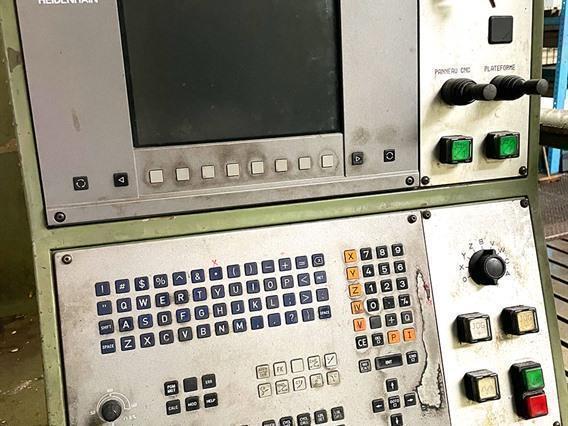

Heidenhain control & measuring rulers
weight of machine: 60 ton
dimensions of machine: 19 meter x 12 meter x 6,65 meter

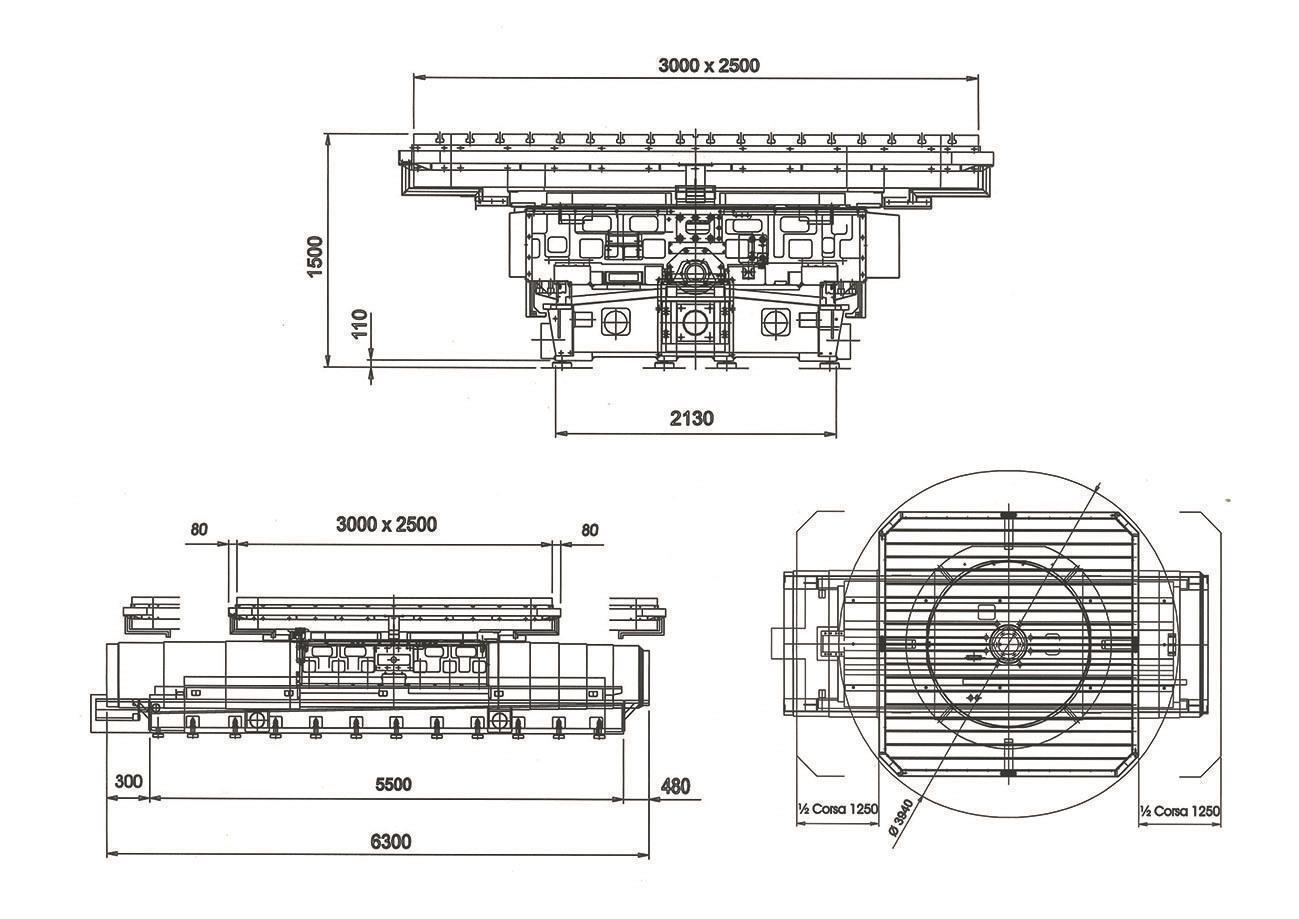

TIRT3025 CNC-turntable continuous:
- max 60 ton workpiece weight
- dimensions: 3000 x 2500 mm
- travel of turntable: 2500 mm
- max 2 rpm
- weight of table: 37 ton
- dimensions: 6500 x 2500 x 1500 mm

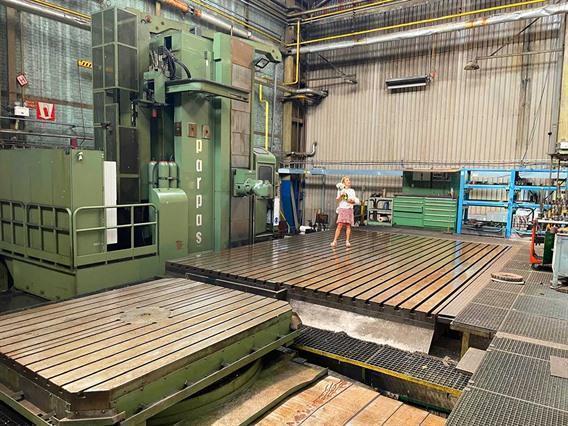

T-slot tables 7600 x 5282 mm
- weight of tables: 50 ton
Fresatrice a montante mobile - Milling machine with mobile column - Fraiseuse-aleseuse avec montant mobile - Fräs-Bohrmaschine mit beweglichem Ständer
- Type/Model: ML120-1 -8 axes X: 12 000- Y: 3500- Z: 1250 mm CNC
- Stocknumber: B.04 14131
- Main category: [B] Milling machines
- Sub category: [B.04] Bed milling machine with moving column & CNC
- Brand: Parpas
