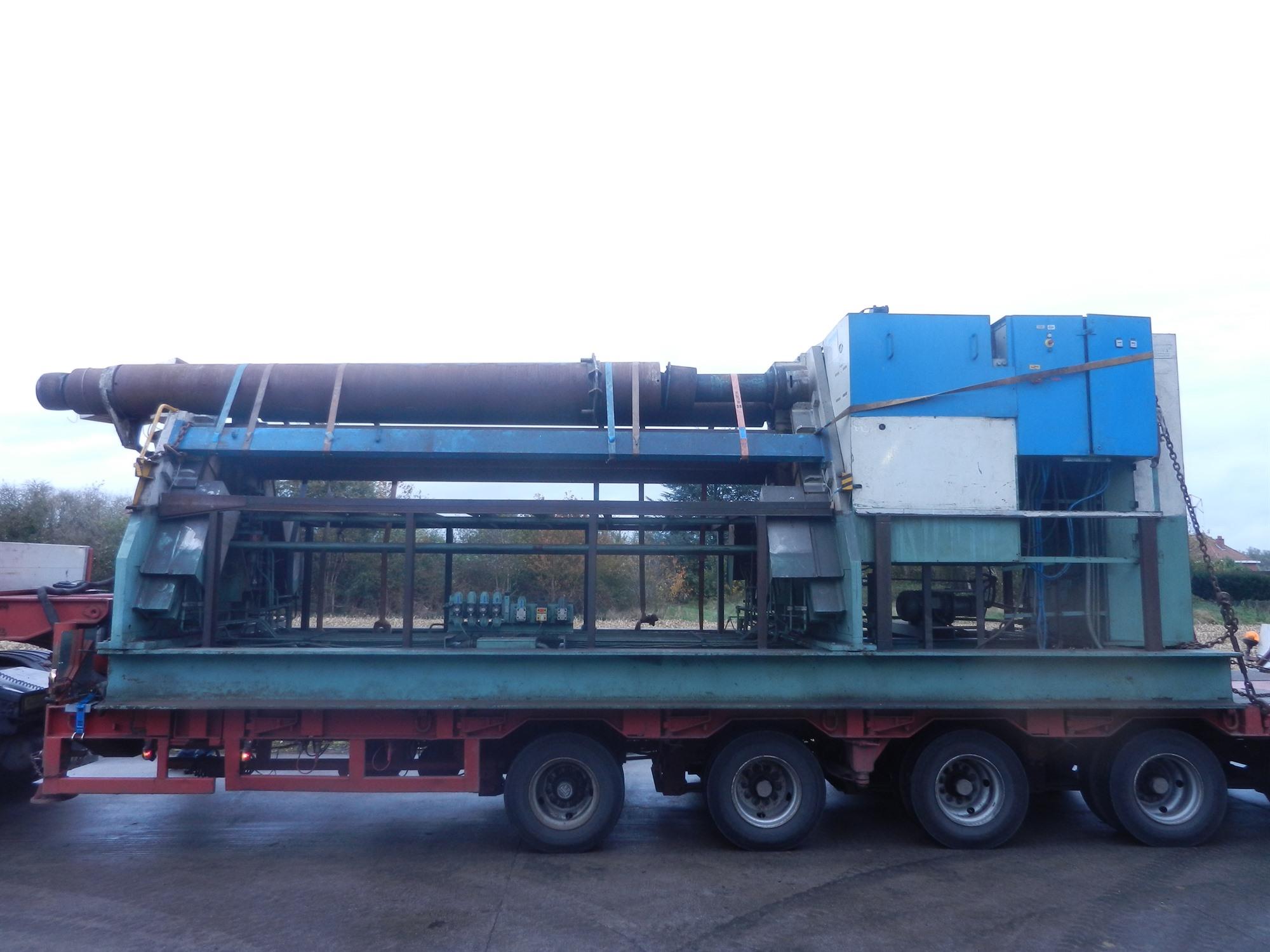

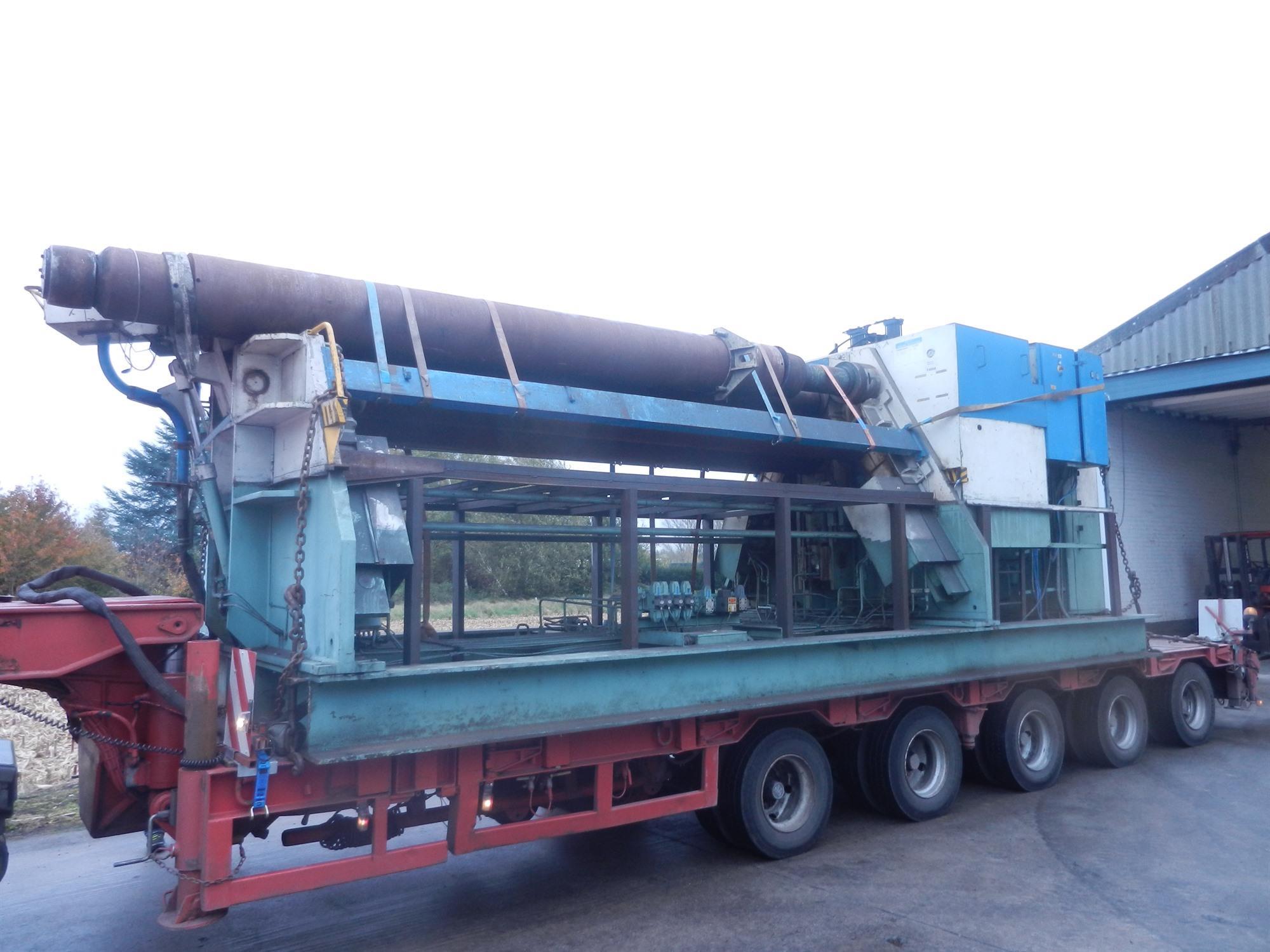

Bending rolls Haeusler VRM-E 4180 x 20 mm

Product added to your favorites

» Request a personalised quote

Technical information

Number of rolls4x
Roll capacity cold4180 x 20 mm
Roll dia upside420 mm
Dia under roll - side rolls330 mm
Power needed30 HP
Length7600 mm
Depth2900 mm
Hight3000 mm
Weight36+7 ton

Additional info

Hydraulic machine
- extra upperroll of dia 300 mm included (weight: 8 ton)
- hardened rolls

- 2 syncrhonized driven rolls (upper and lower roll)

> with upperroll of 420 mm the smallest rollable diameter is 460 mm

cap: 4180 x 20 mm / 3100 x 30 mm

> with upperroll of 300 mm the smallest rollable diameter is 330 mm

cap: 4180 x 10 mm / 3100 x 20 mm

conical bending
Type/Model: VRM-E 4180 x 20 mm
Stocknumber: O.06 8556
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.06] Bending rolls
Brand: Haeusler

» Request a personalised quote

Stocknumber: O.06 8556

Download all pictures in ZIP
