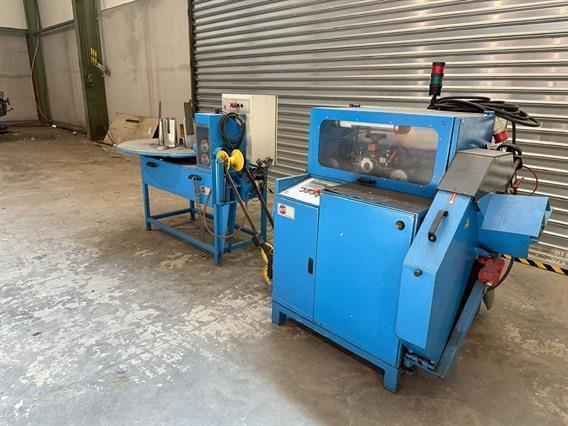

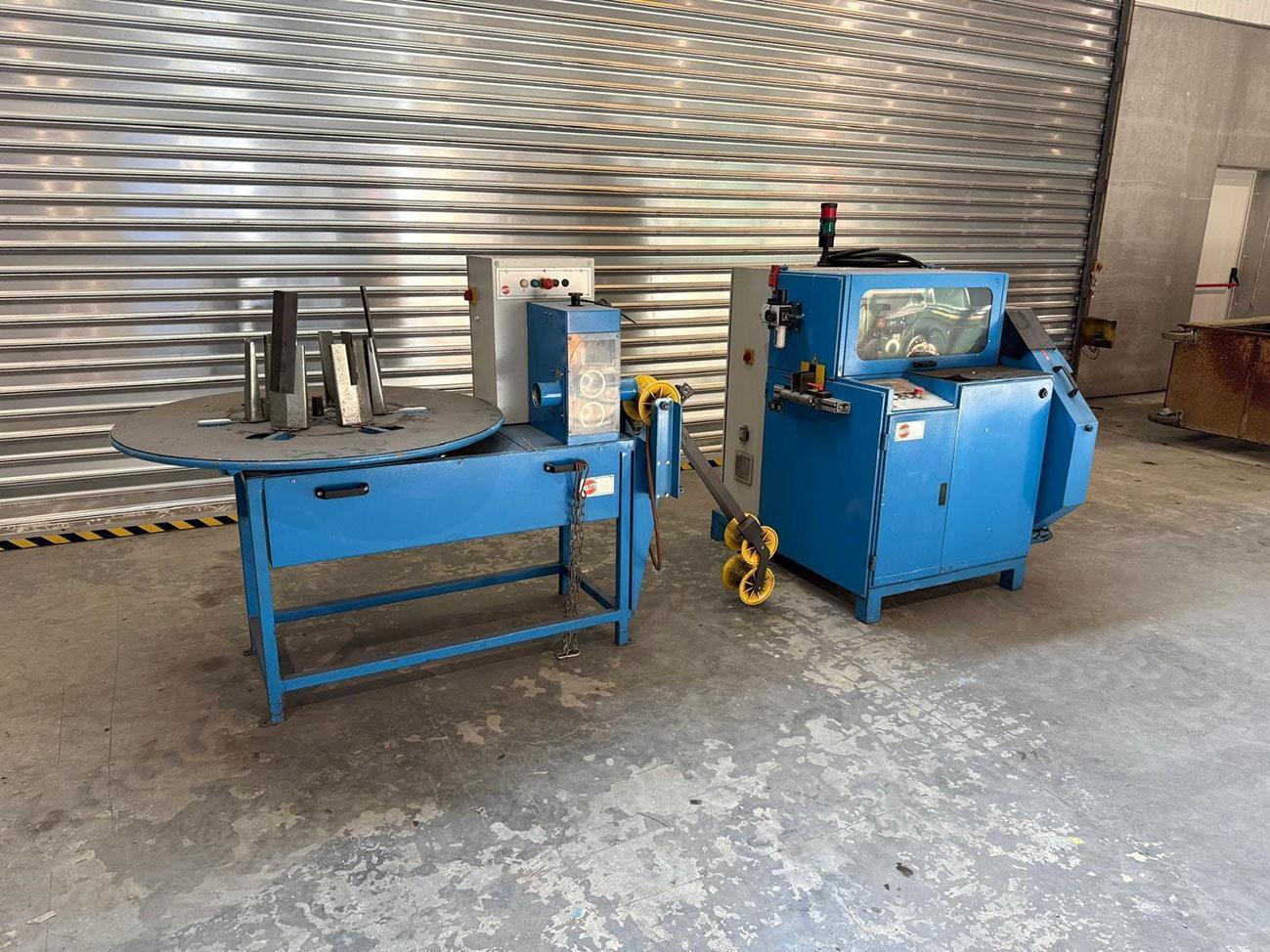

Circular & abrasive cold sawing machines Clavel TA177 automatic cutting of metal reinforced hoses
Additional info
- Capacity hose: max 2 inches / 50 mm

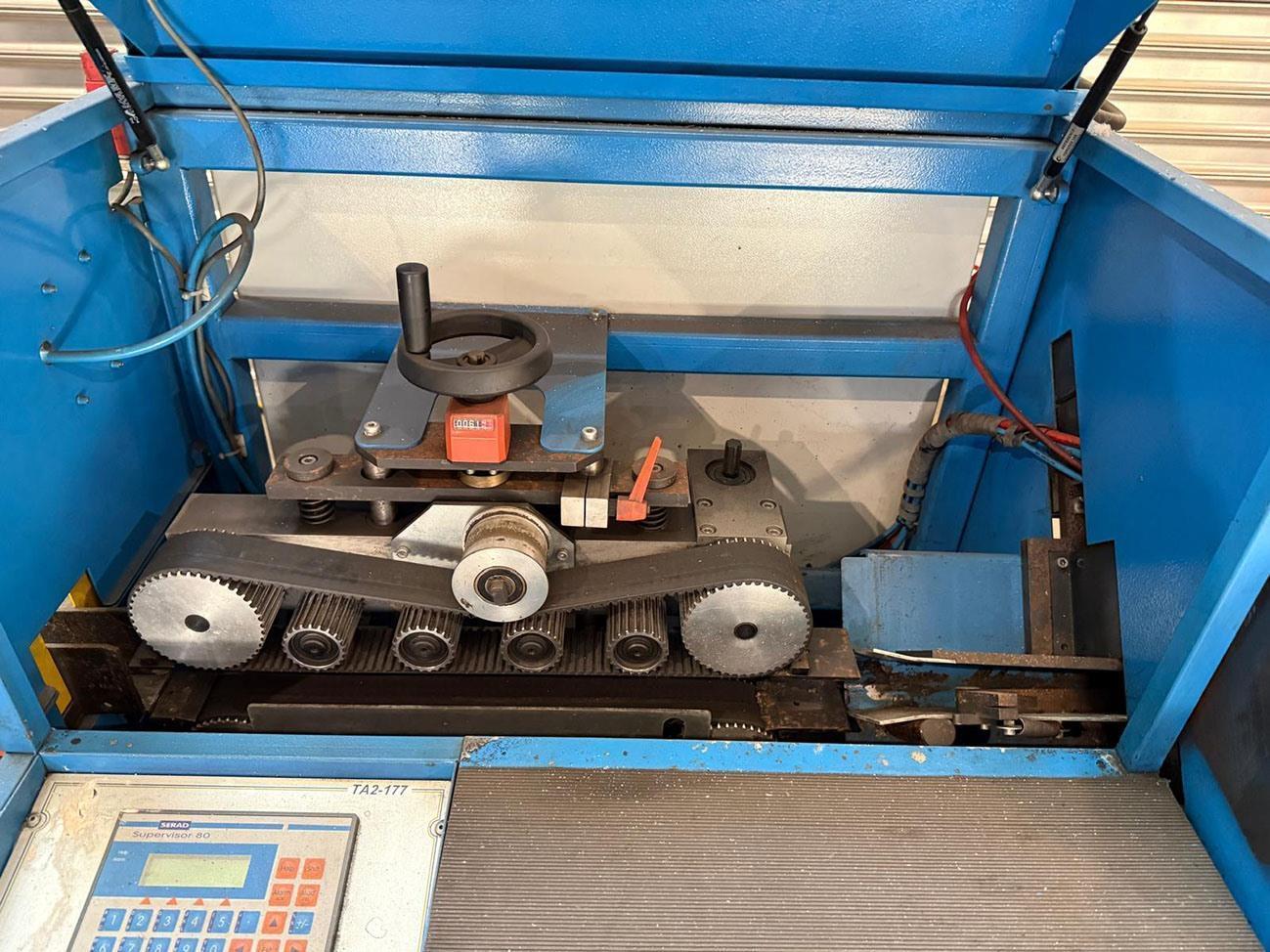

The hose is fed into the machine by a caterpillar system and is controlled by an electric motor
The feeding speed is adjustable from 0 to 40m/min
The distance between the belts on the caterpillar system is manually adjusted with a hand wheel equipped with a digital counter

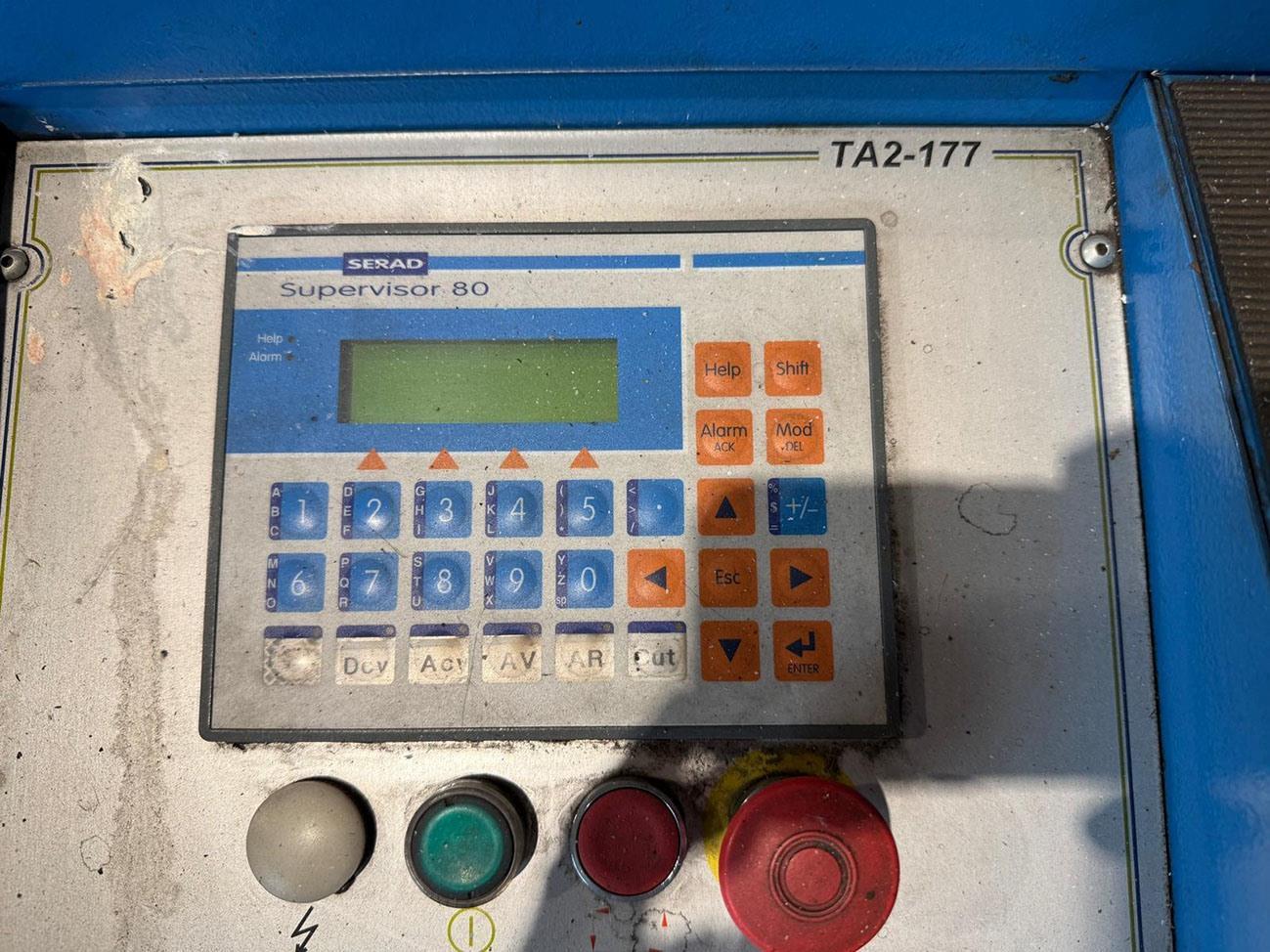

Capacity: 500 programs
One program includes: the part length, the number of parts, the elongation adjuster, the hose running speed, the name of the hose, the program number and the diameter of the hose
The hose is cut with a special serrated disc: 520x4x40mm

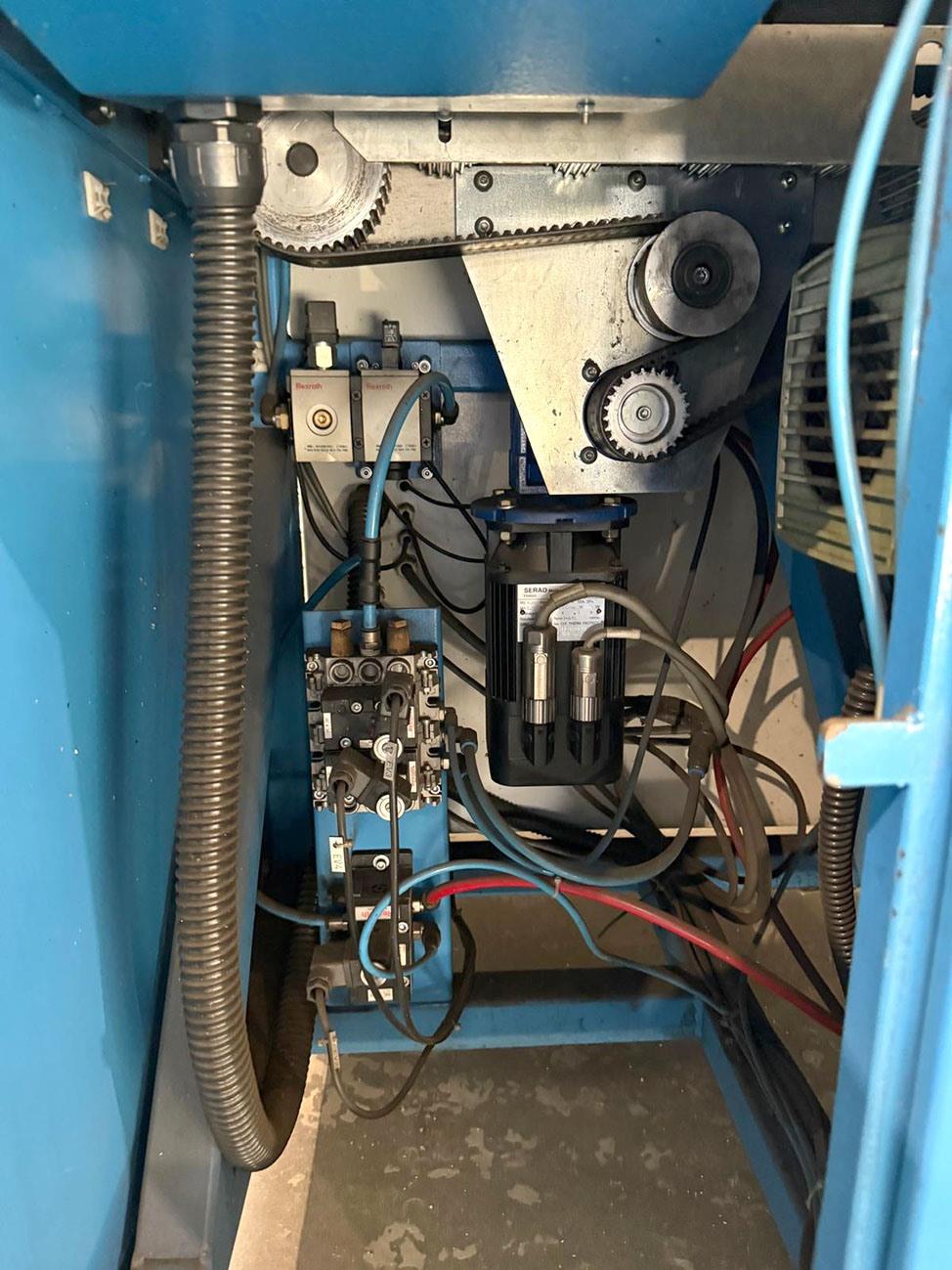

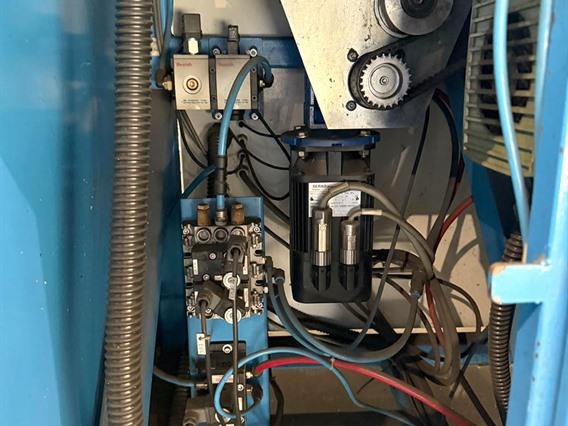

9 kW spindle motor with brake
Rotation speed: 3000 rpm
During the cut, 2 articulated jaws, manually adjusted by a wheel, hold the hose and guide it
The bending of the hose and the advance of the cutting head are carried out by two pneumatic cylinders
Air supply: 6 bars
Dimensions H x W x L: 1300 x 1300 x 1350mm
Weight: 580kg
- Type/Model: TA177 automatic cutting of metal reinforced hoses
- Stocknumber: L.02 15932
- Main category: [L] Sawing machines, Filing machines & Cutting-off machines
- Sub category: [L.02] Circular & abrasive cold sawing machines
- Brand: Clavel
Stocknumber: L.02 15932
