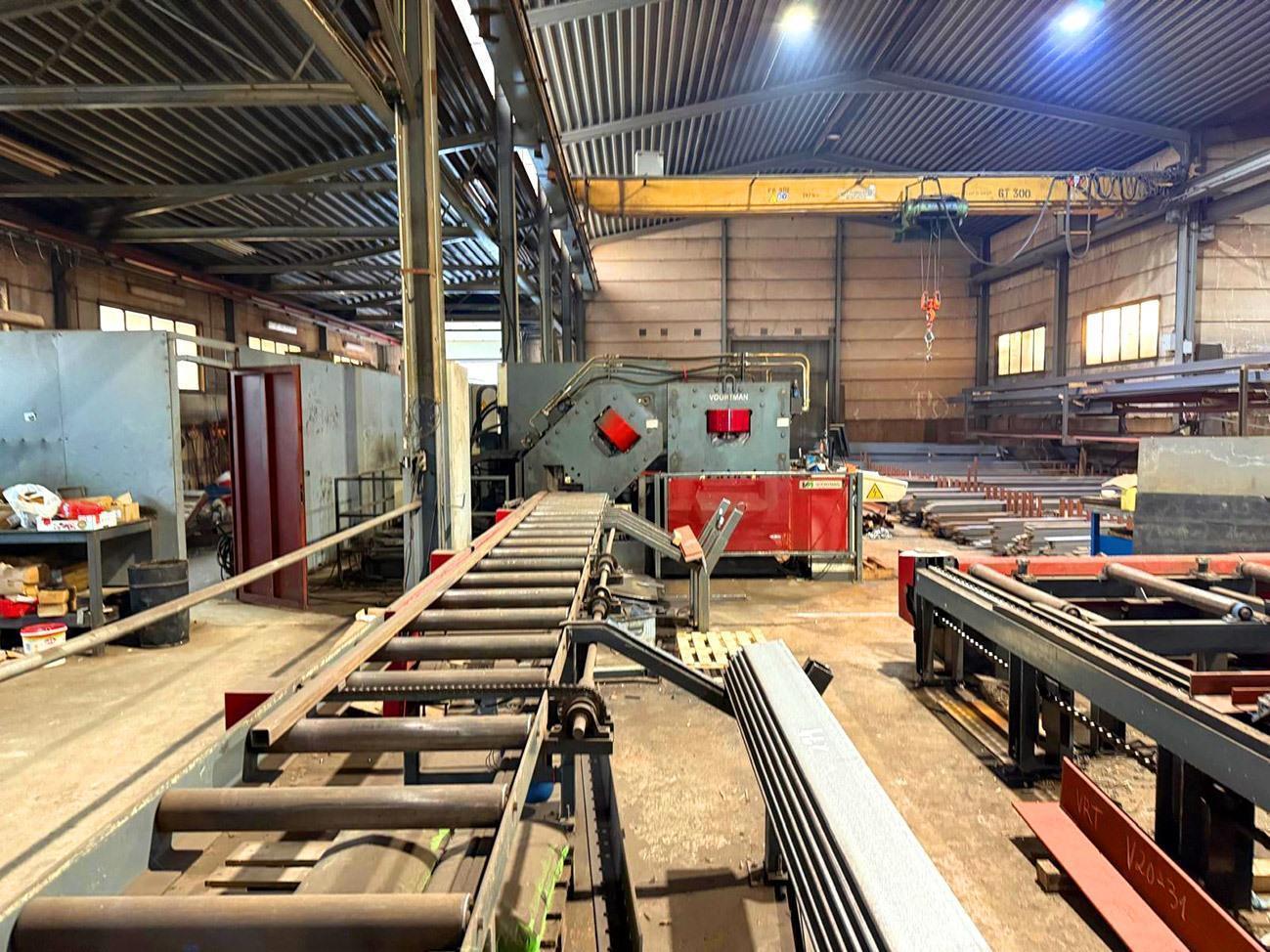

Voortman - V550A flat and angle processing machine

CNC center for platepunching, drilling, plasmacutting and marking Voortman V550A flat and angle processing machine

Name: Voortman V550A flat and angle processing machine
Brand: Voortman
SKU: O.21b 15806

Product added to your favorites

» Request a personalised quote

Additional info

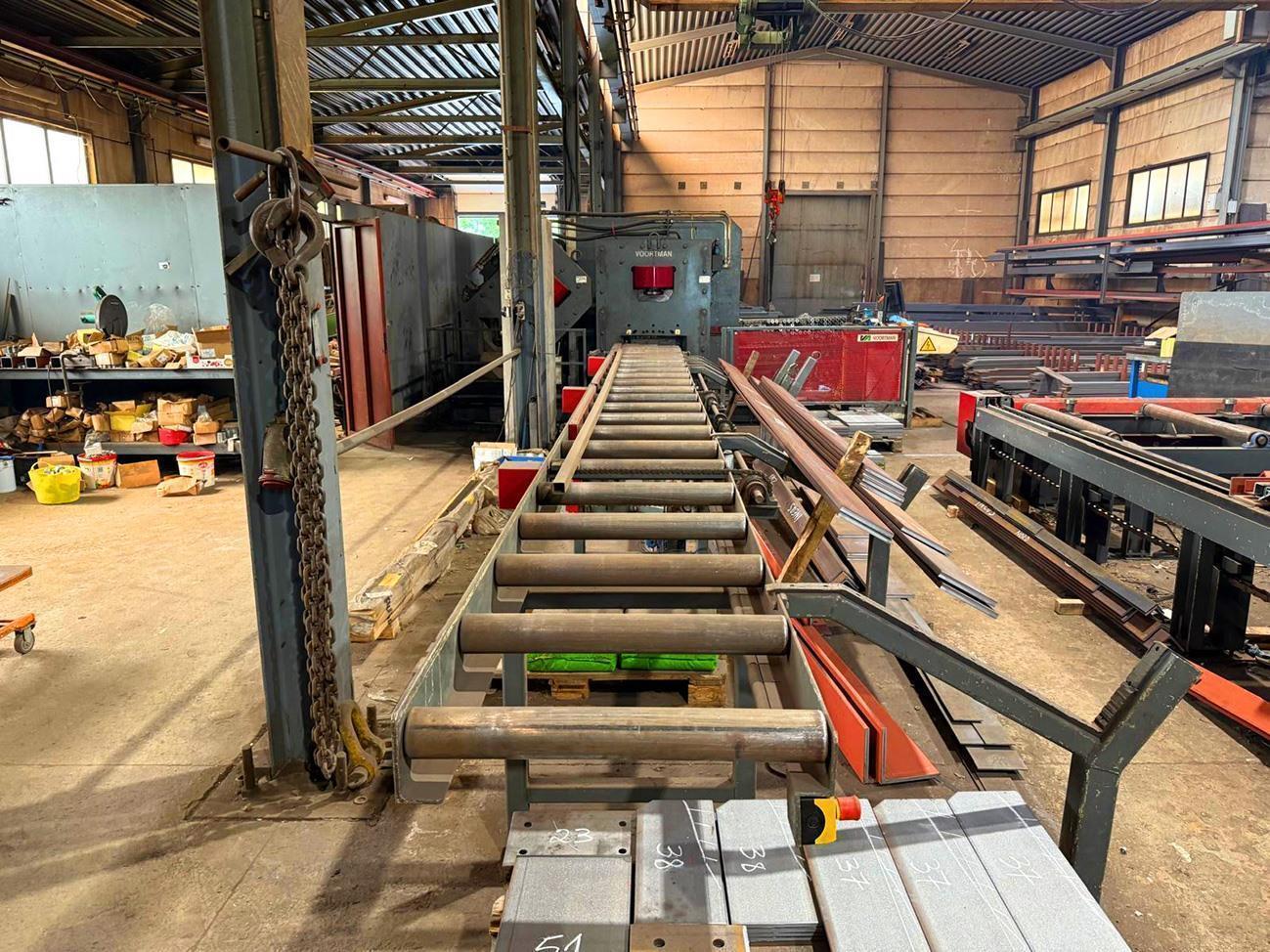

- input system for flat and angle steel
- with feed trolley and material clamp
- Vacon 110 software CNC control

Hydraulic shear for flat steel VPS 2200
> cap: 220 tons
> maximum length: 15,200 mm
width/thickness: 500/25 mm
> angle: +/- 45°

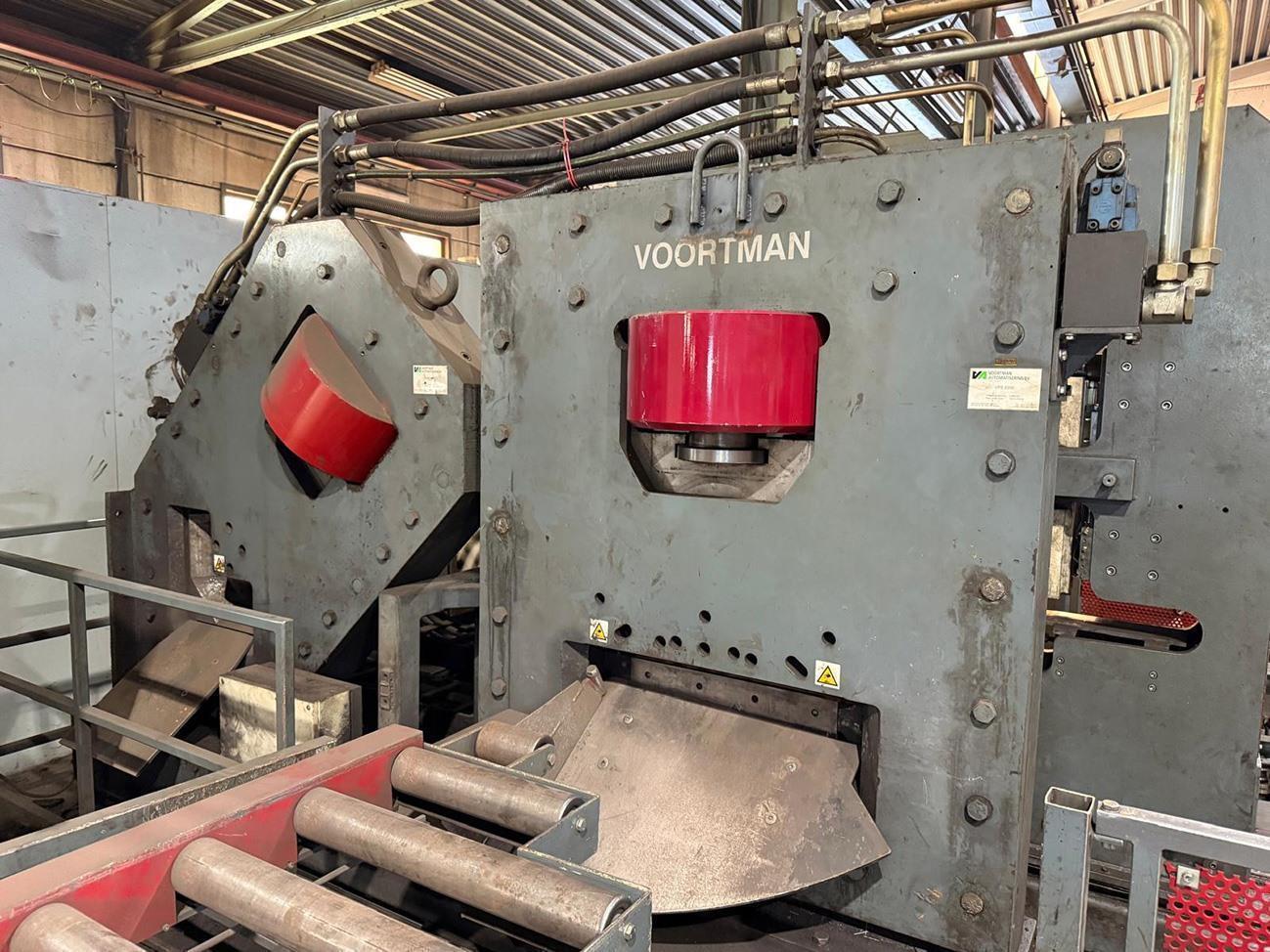

Hydraulic angle shear for steel VHS 2400
> cap: 240 tons
> maximum length: 15,200 mm
> 200 x 200 mm / 16 mm

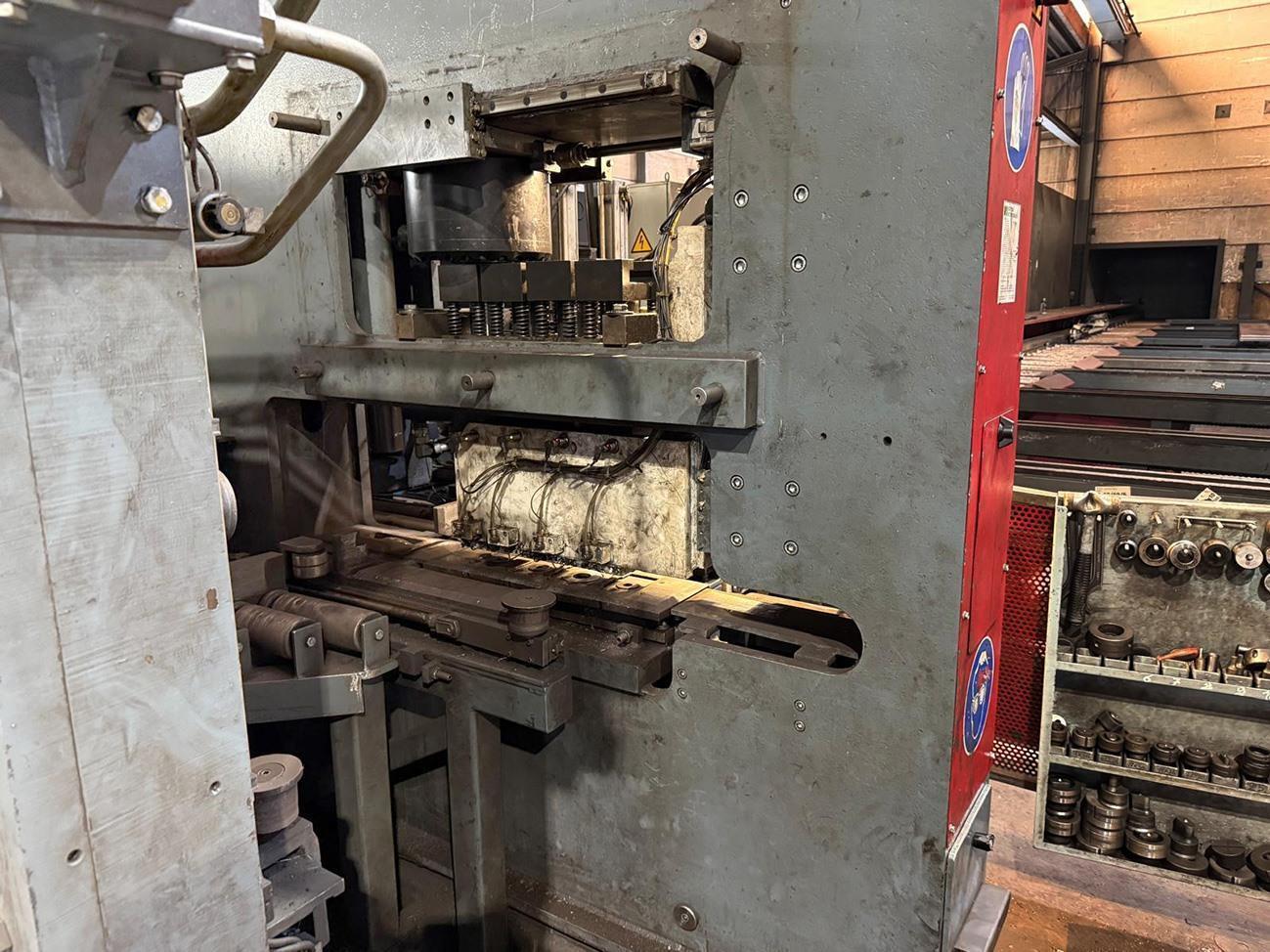

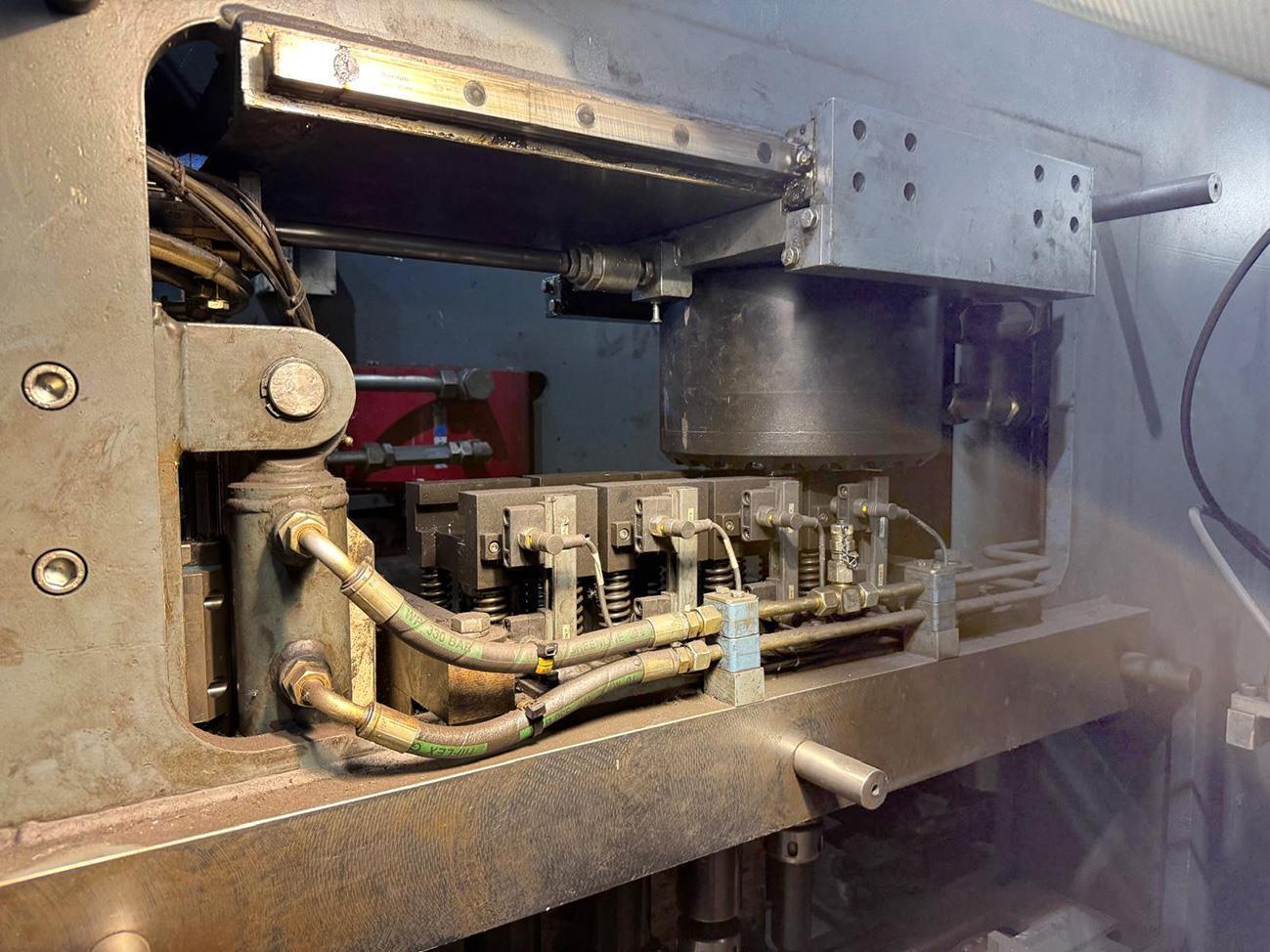

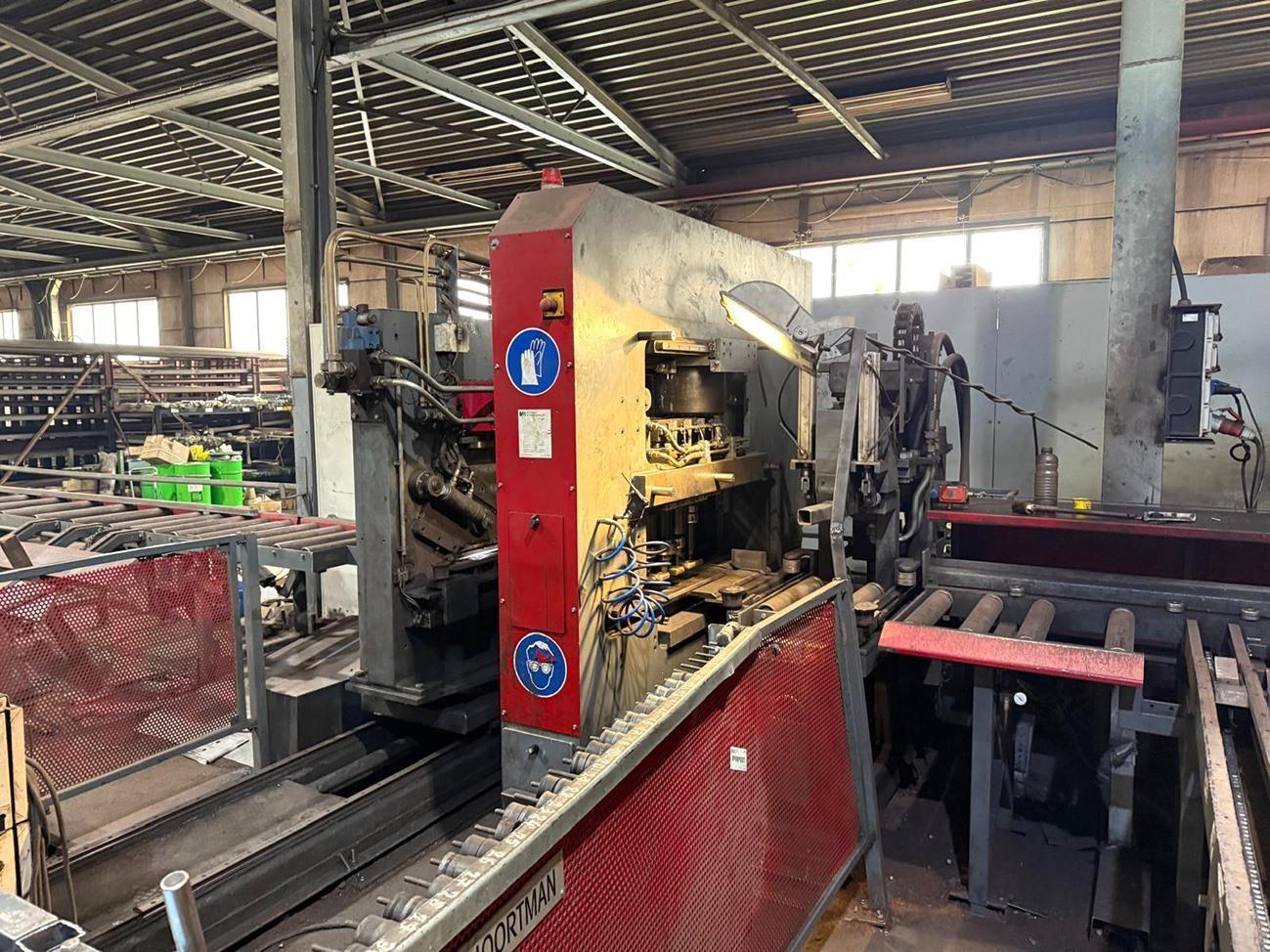

Hydraulic punching VPO 1000
> cap: 100 tons
> punch diameter/thickness: 57/15 mm or 32/25 mm
> 4 punching units for flat steel (Vertical position)
> 1 angle steel punching unit (Horizontal position)
incl. tools

Hydraulic numerator VNI 1/36
> 1 coding disk
> 36 characters
> character height x depth: 10 x 1 mm

Hydraulic aggregate VHA 37
> 37 kW - 250 bar
Type/Model: V550A flat and angle processing machine
Stocknumber: O.21b 15806
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.21b] CNC center for platepunching, drilling, plasmacutting and marking
Brand: Voortman

» Request a personalised quote

Stocknumber: O.21b 15806

Watch video of working machinery

Voortman V550A flat and angle processing machine
