SWF 70 ton + 5 ton x 25 meter

Product added to your favorites

» Request a personalised quote

Technical information

Kind ofportal crane
Capacity70 + 5 ton
Span25 meter
Drop18 meter
Tackle speed6 m/min
Rotationspeed6 m/min
Displacementspeed6 m/min
Weight115 ton

Additional info

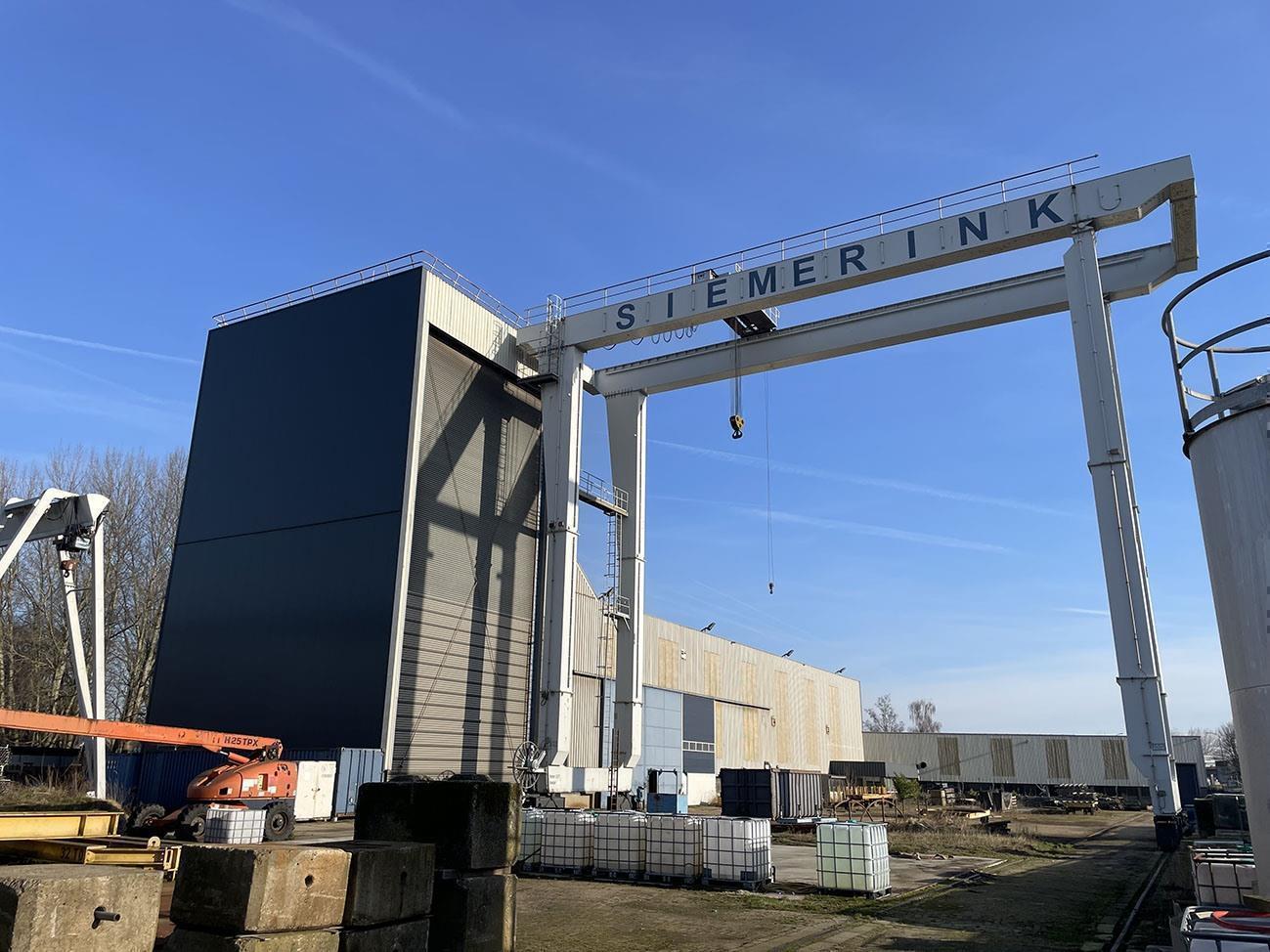

Portal crane with SWF hoist 70 ton (main hoist) & 5 ton (secundaire hoist)
Hoist type: SWF NF28A4XEP66DT1S
All movements frequency controlled
30 meter lifting cable
center center distance of wheels: 25 meter

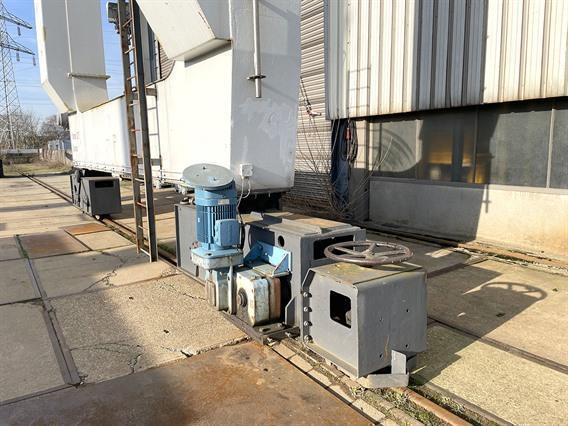

4 driven wheel carriages with 8 wheels
crane travel speed: 6m/min
hoist travel speed: 6m/min
lifting speed: 6m/min
use class: A
lifting class: A

Total weight: 115 ton
Type/Model: 70 ton + 5 ton x 25 meter
Stocknumber: Z.04 14025
Main category: [Z] Complete plants-factories / Vehicles (transport), Overhead Travelling Crane, Jigs / Compressors & generators / Hot air blowers
Sub category: [Z.04] Conveyors, Overhead Travelling Crane, Jig Cranes
Brand: SWF

» Request a personalised quote

Stocknumber: Z.04 14025

Watch video of working machinery

Download all pictures in ZIP
