CBM sandwich panel line / Manni & Cannon
Additional info
Rollforming line for making panels:
- for thermal insulation of industrial buildings
- for sectional doors (current configuration)
- for residential roof insulation
Equipment consists out of:
1 - Decoiler 10 ton 1350 mm
2 - Straightener 1350 mm + embossing roll
3 - Rollerconveyor 15 meters

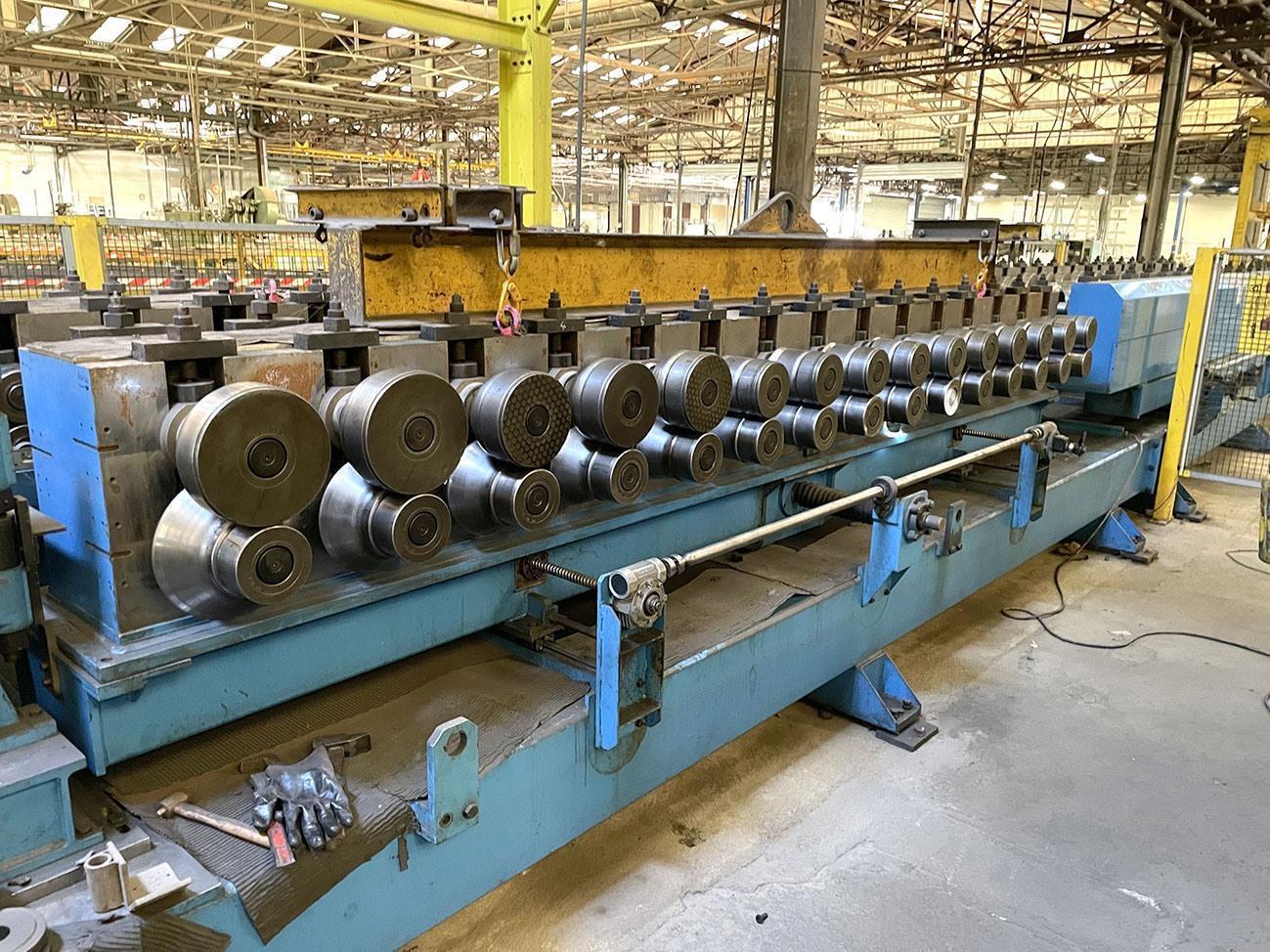

4 - CBM rollforming line with variable width:
> min/max width: 300 > 1300 mm
> min/max thickness: 0,5 > 1 mm
> first section: 15 rollstands
> second section: 20 rollstands
Current configuration (for sectional doors) consists out of 4 different tooling rollsets (which don't require dismantling)
4 different panels can be made (for two thicknesses; 50 & 42 mm):
- 1 > panel with grooves, with embossed texture
- 2 > panel without grooves,with embossed texture
- 3 > panel with grooves, without embossed texture
- 4 > panel without grooves, without embossed texture
Manni / Cannon PU press >> click here
Rollforming line for making different profiles for installation sectional doors >> click here
Tubebender for bending the main vertical profiles for guide wheels of sectional doors >> click here
- Type/Model: sandwich panel line / Manni & Cannon
- Stocknumber: O.27 14280
- Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
- Sub category: [O.27] Decoiling + / or Roll forminglines
- Brand: CBM
Stocknumber: O.27 14280
Watch video of working machinery
