Hydraulic pressbrakes Haco ERM 220 ton x 4300 mm CNC

Name: Haco ERM 220 ton x 4300 mm CNC
Brand: Haco ERM
SKU: O.01 15851

Product added to your favorites

» Request a personalised quote

Technical information

Capacity225 ton x 4100 mm
BackgaugeCNC

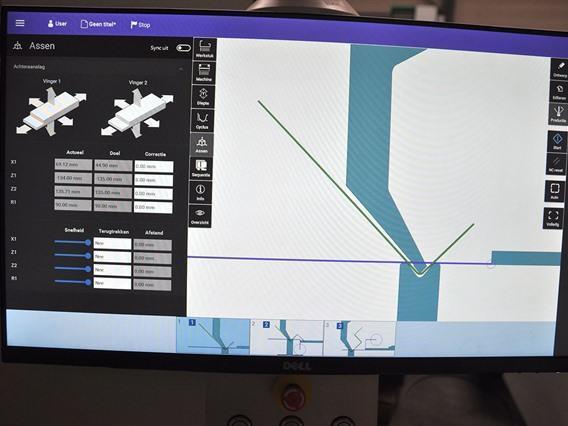

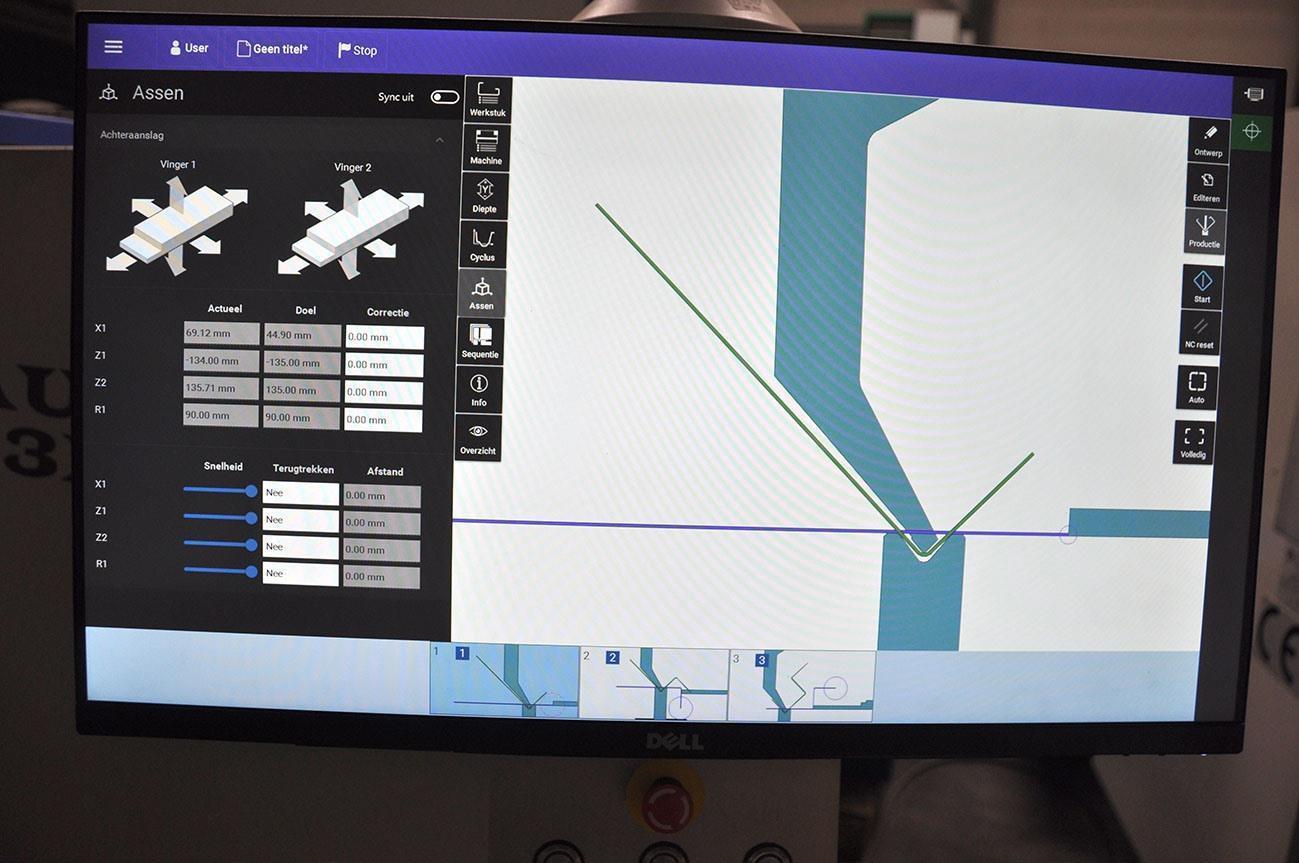

Control2D Touch
Passage between uprights3750 mm
Max stroke200 mm
Max distance between table -- ram450 mm
Depth of throat350 mm
Locking speed80 mm/sec
Working speed7 mm/sec
Returning speed80 mm/sec
Electric motor (power)18,7 kW
Length4400 mm
Depth1900 mm
Height2900 mm
Weight17,7 ton

Additional info

7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V
heavy duty back gauge
Type/Model: 220 ton x 4300 mm CNC
Stocknumber: O.01 15851
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic pressbrakes
Brand: Haco ERM

» Request a personalised quote

Stocknumber: O.01 15851

Watch video of working machinery

Download all pictures in ZIP
