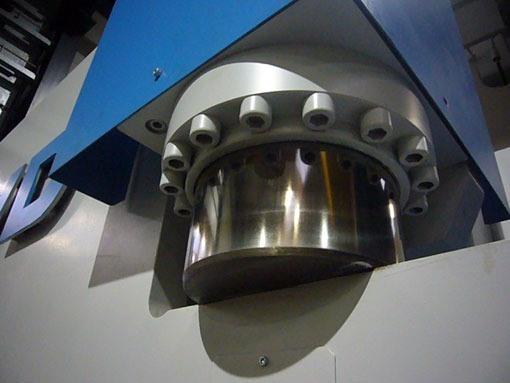

Hydraulic pressbrakes LVD PPEB 320/4 cnc
Technical information
- Capacity320 T x 4000 mm
- Backgaugecnc 4 axis
- ControlMNC 85000 grafisch
- Passage between uprights3150 mm
- Max stroke300 mm
- Max distance between table -- ram570 mm
- Depth of throat400 mm
- Table width200 mm
- Locking speed100 mm/s
- Working speed15 mm/s
- Returning speed130 mm/s
- Electric motor (power)33 kW
- Length4100 mm
- Depth2200 mm
- Height3400 mm
- Weight25 000 kg
- Bedknife+
- Multi V-shaped clamp+
