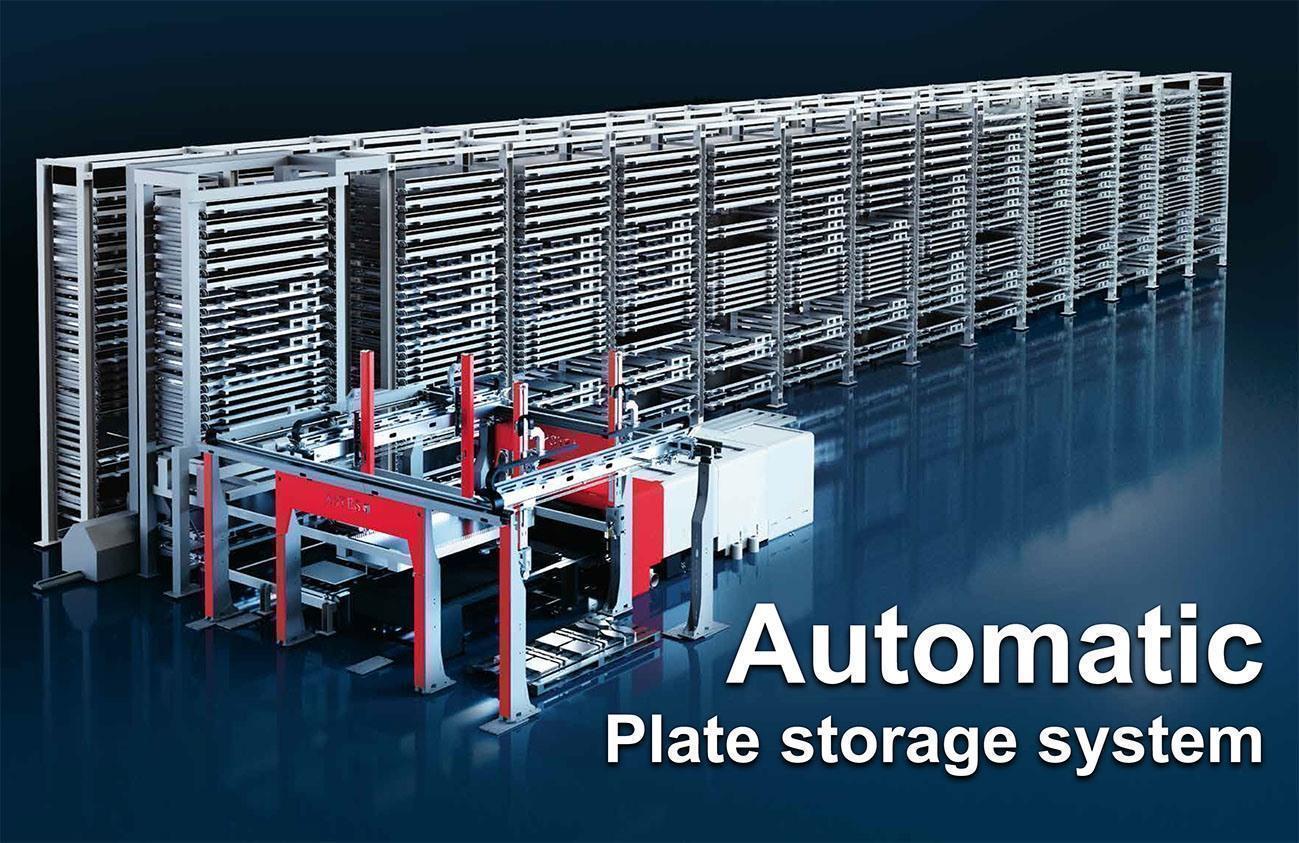

Laser cutting machines Astes4 / Tekmag Automated plate storage system
Additional info

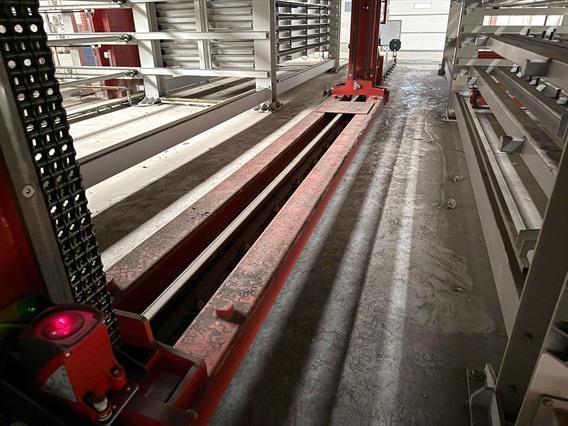

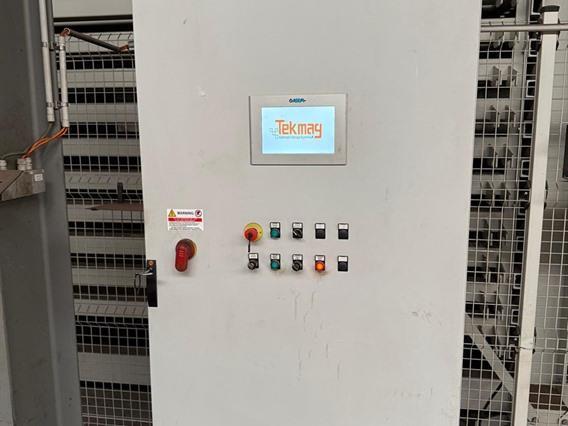

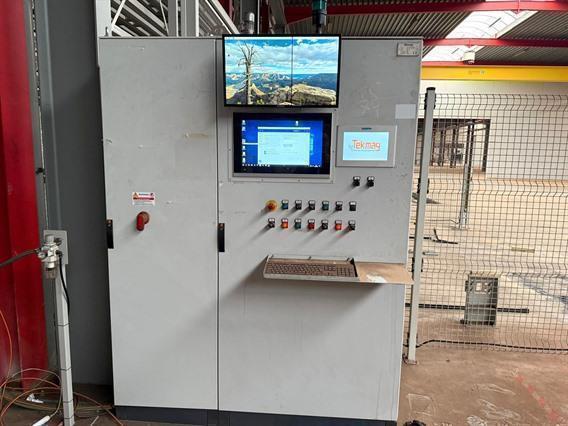

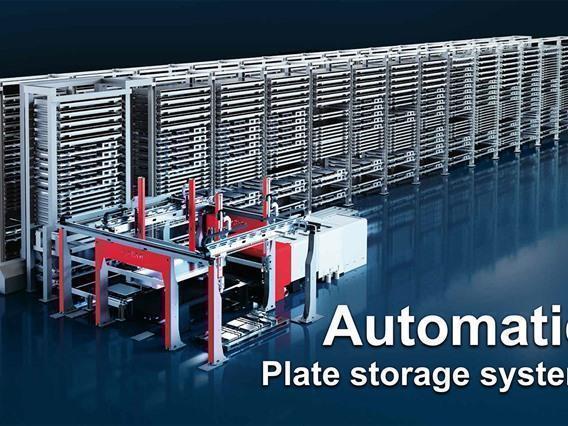

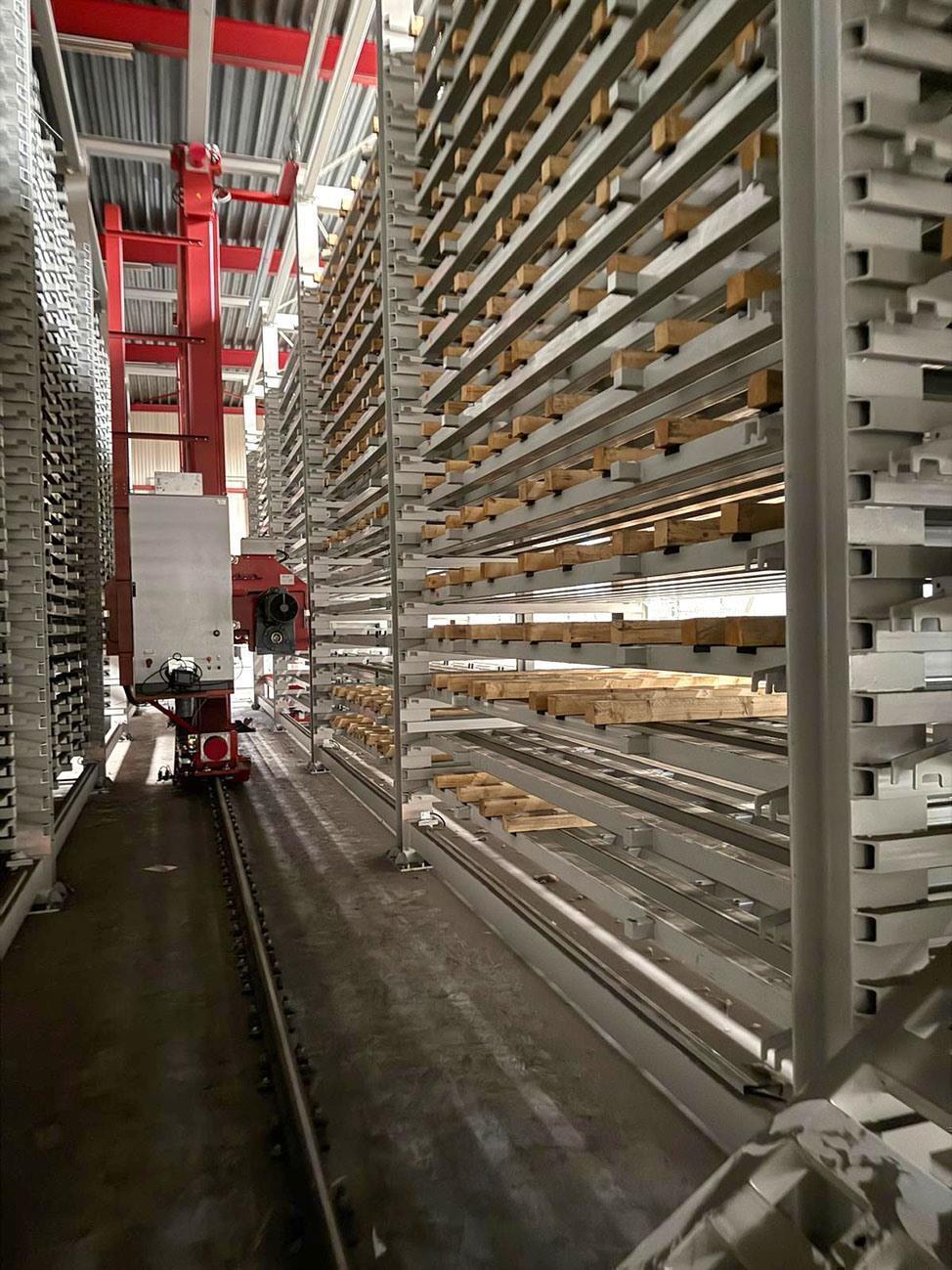

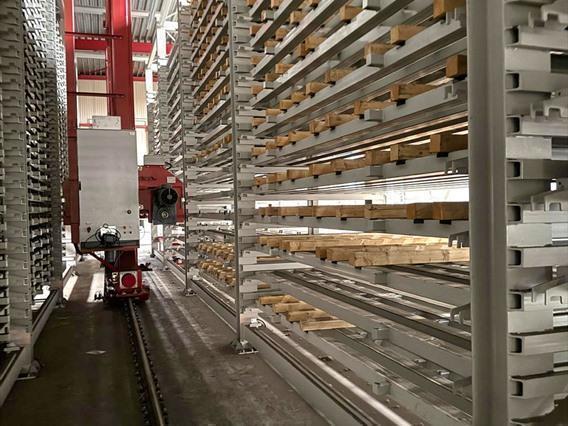

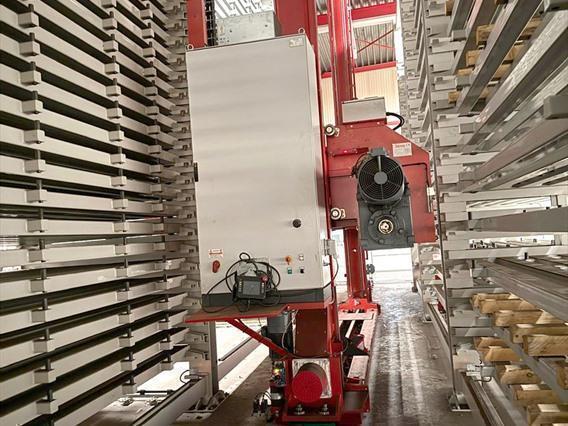

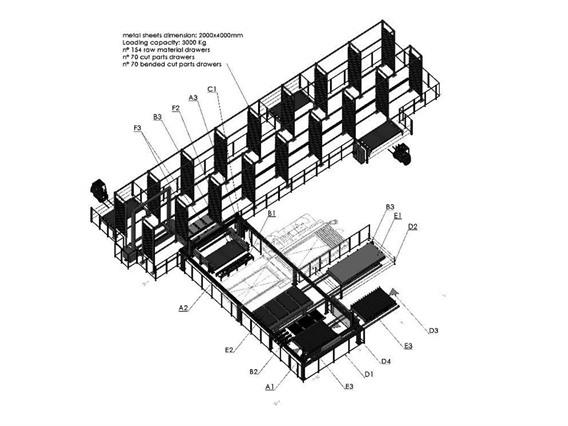

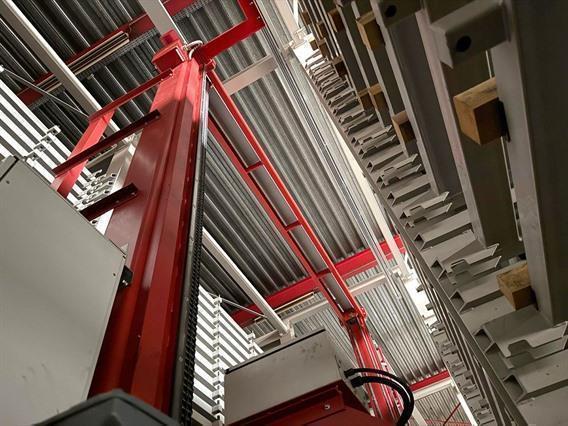

Tekmag sheet metal storage system

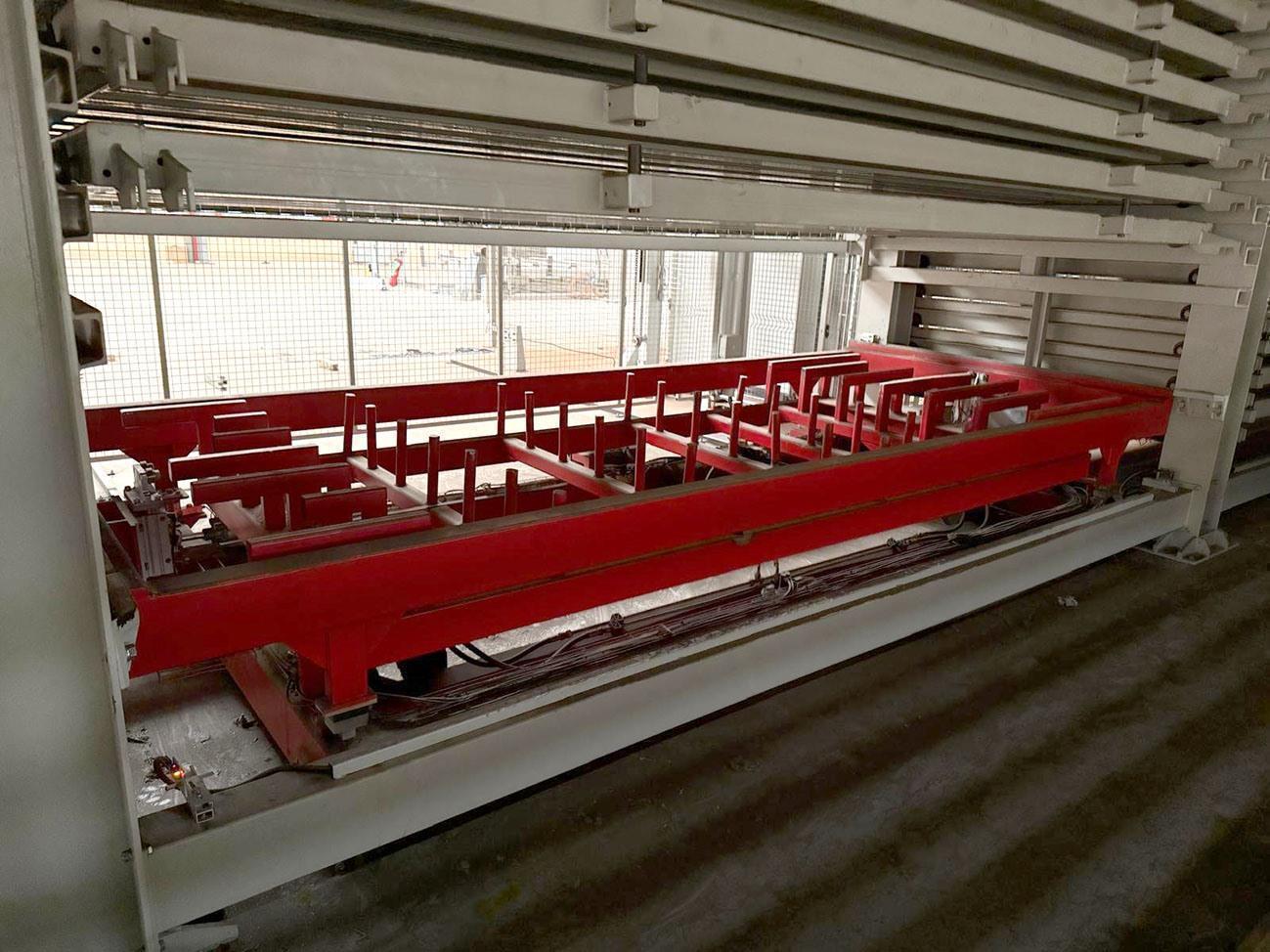

with 16 towers + Tekmag (un)loading system

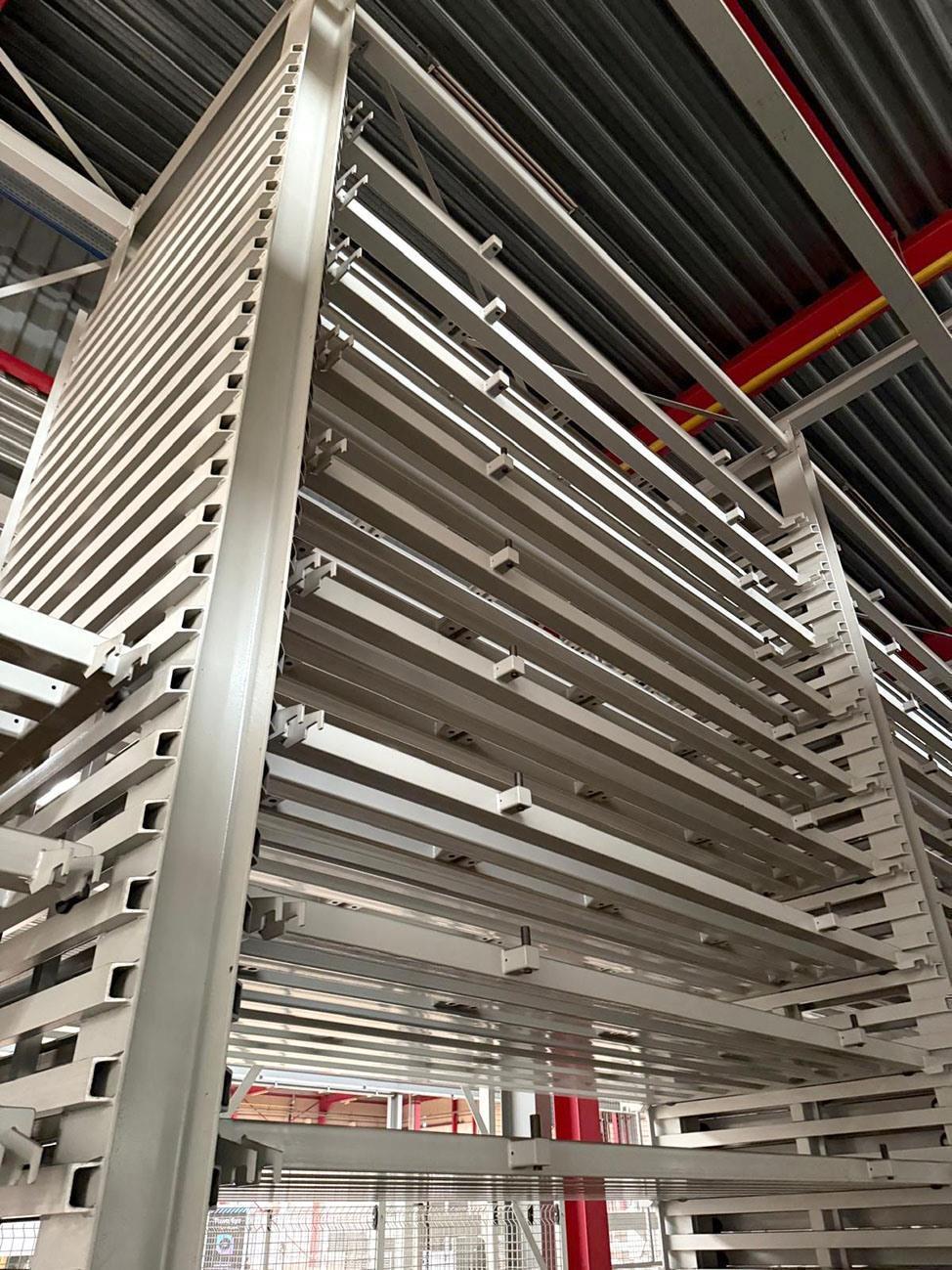

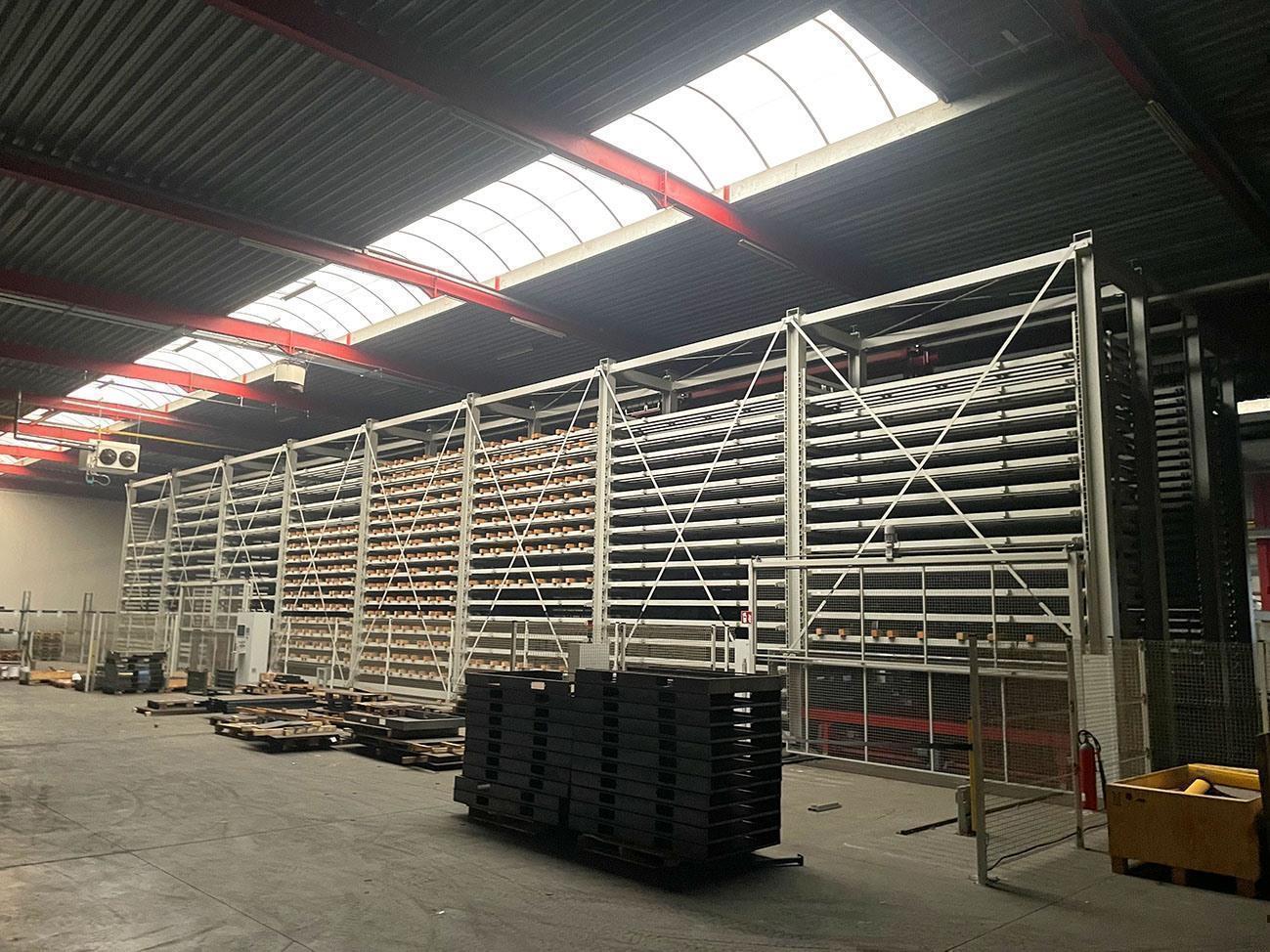

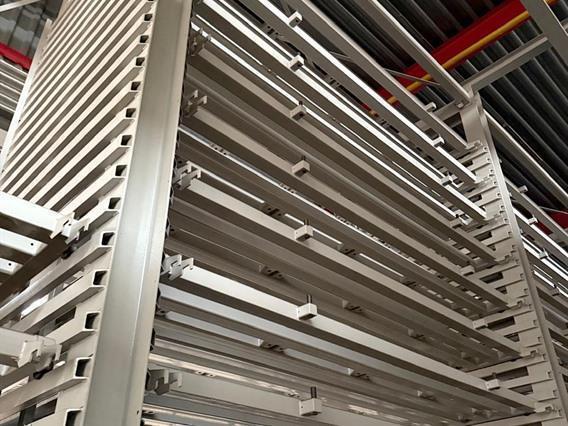

> 16 towers with 294 shelves in total
> 1 tower can contain maximum 32 shelves

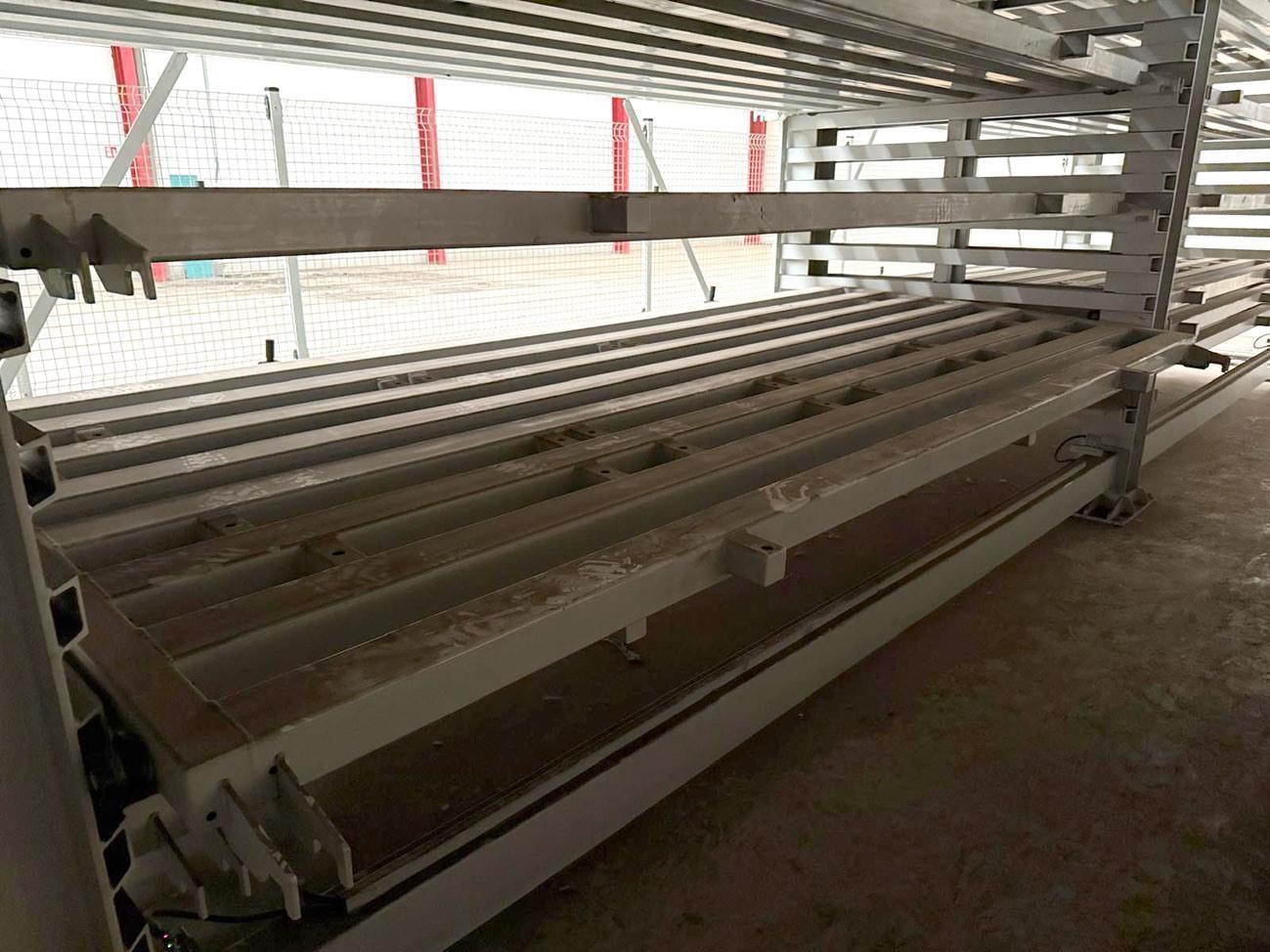

> 1 shelf measures 4400 x 2000 mm
> max 3 tons per shelf

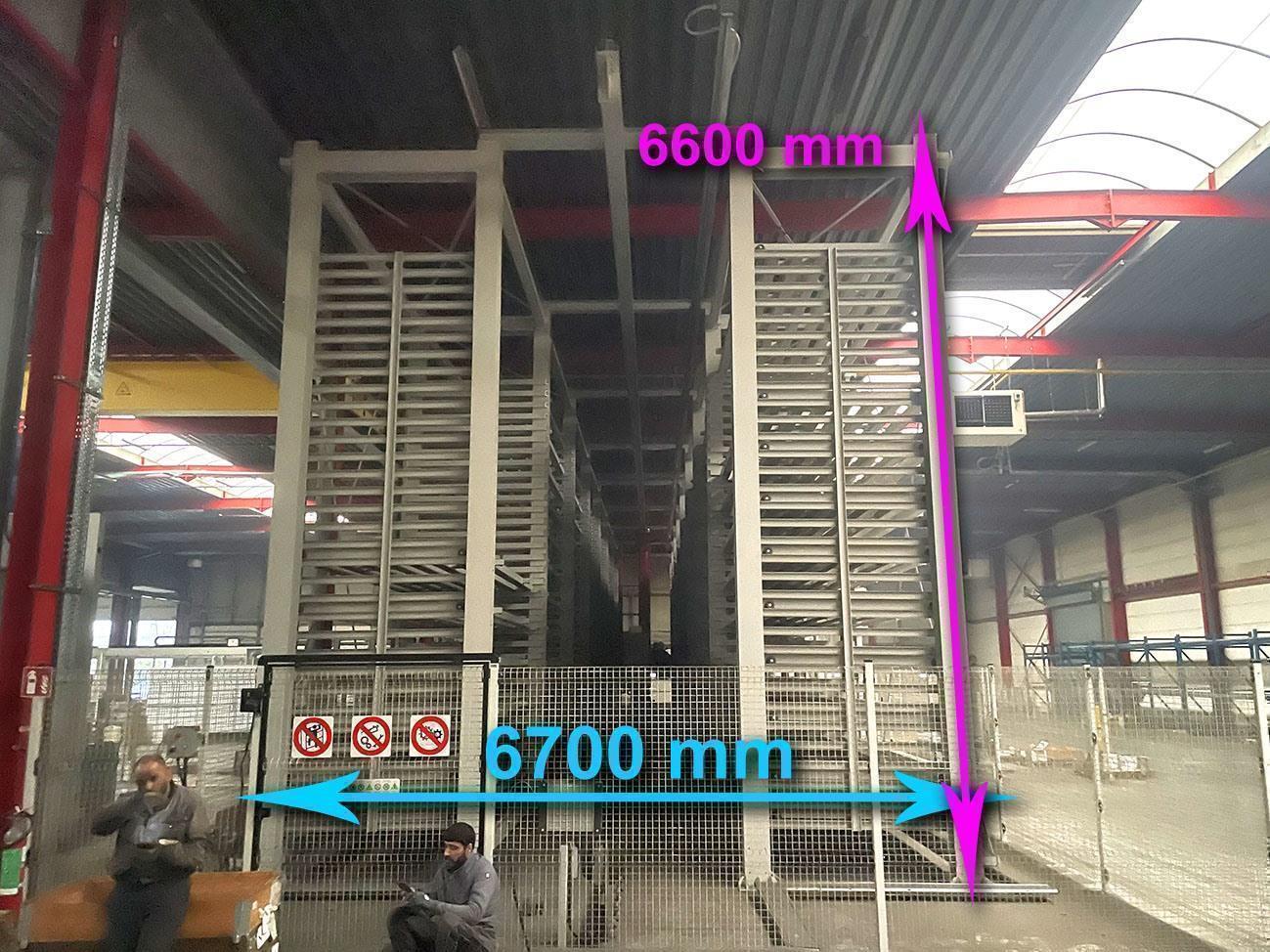

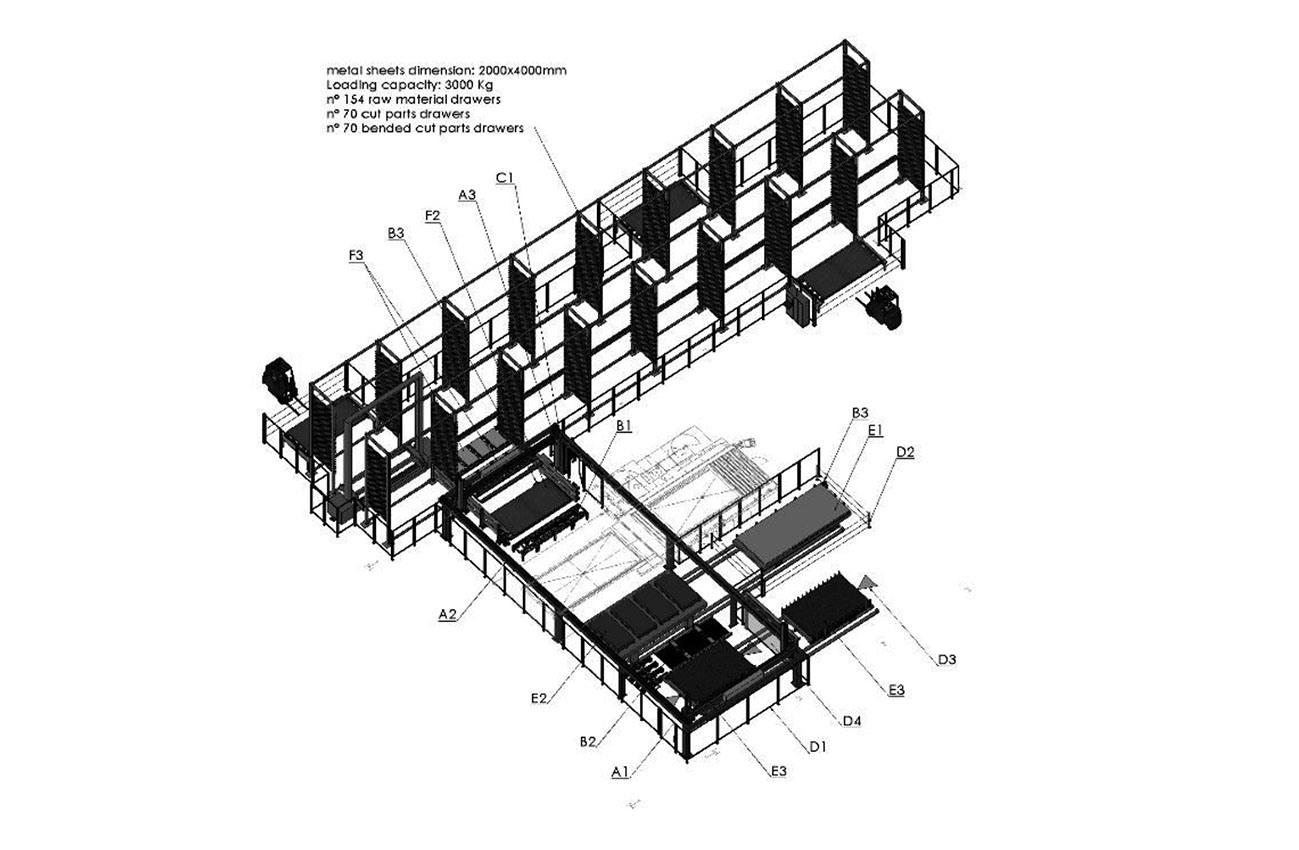

required space for the 16 towers:
40 meters long
6.7 meters wide
6.6 meters high

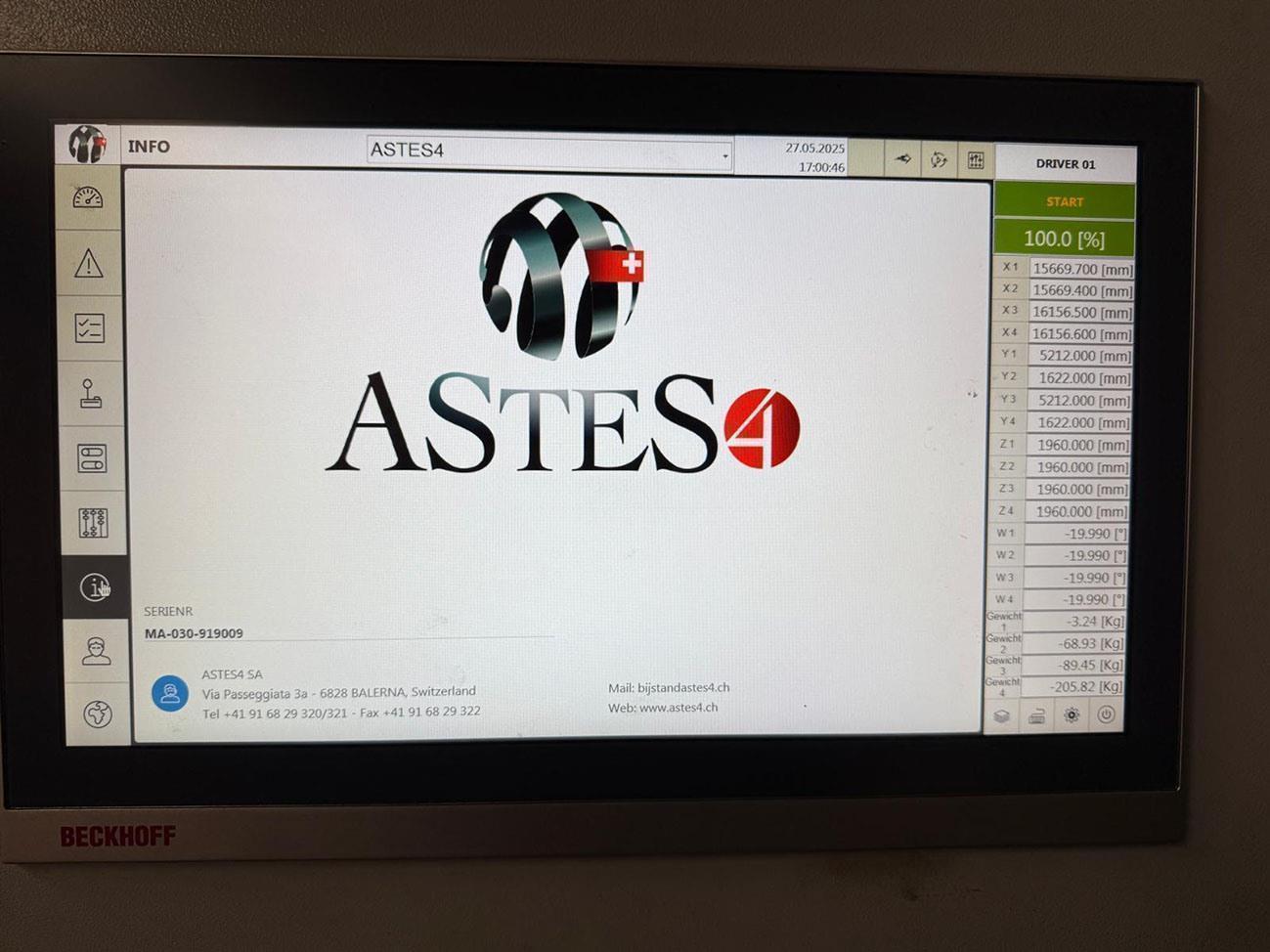

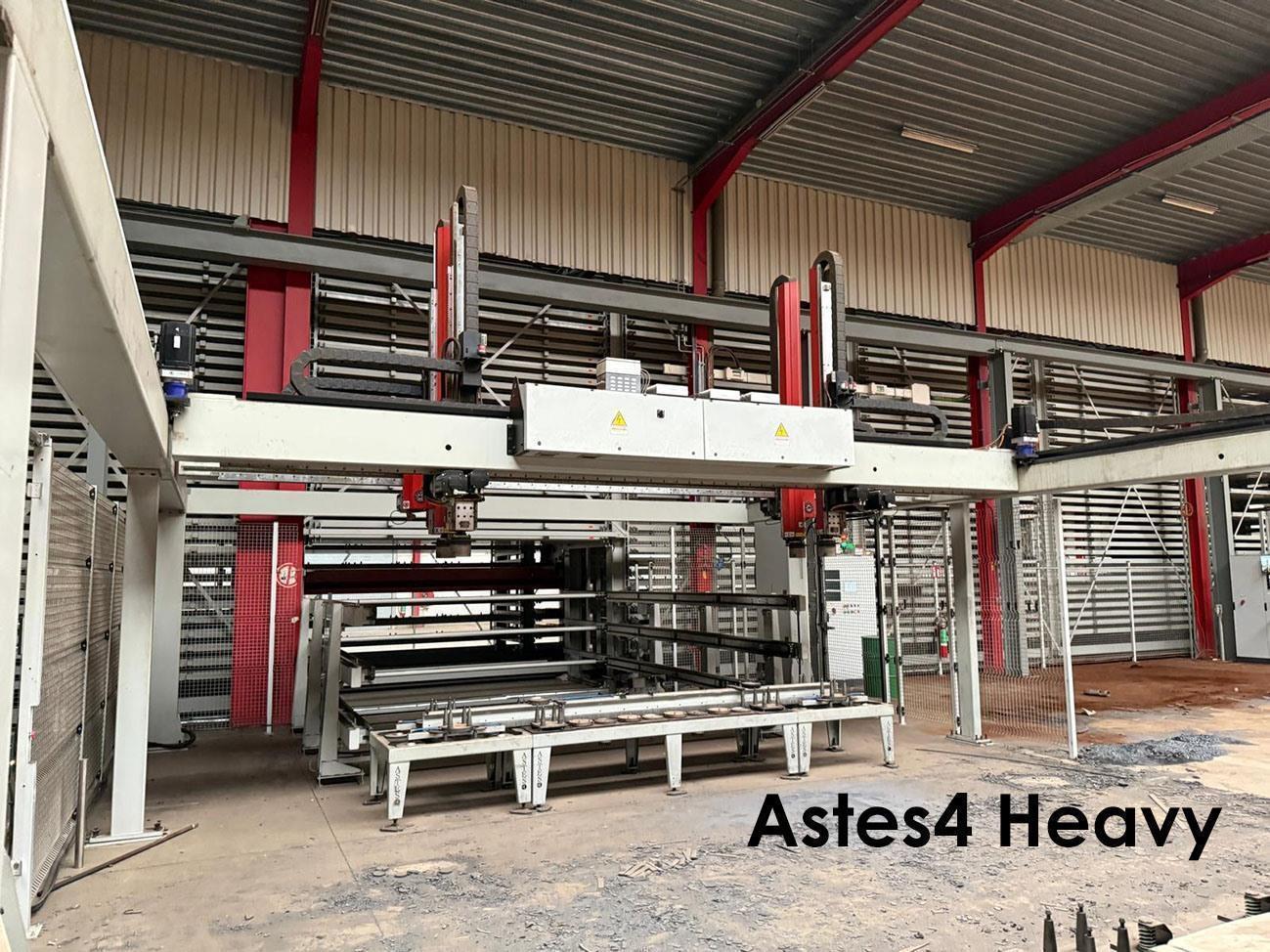

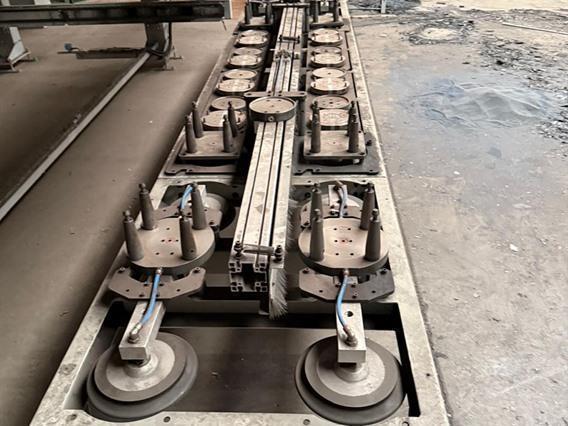

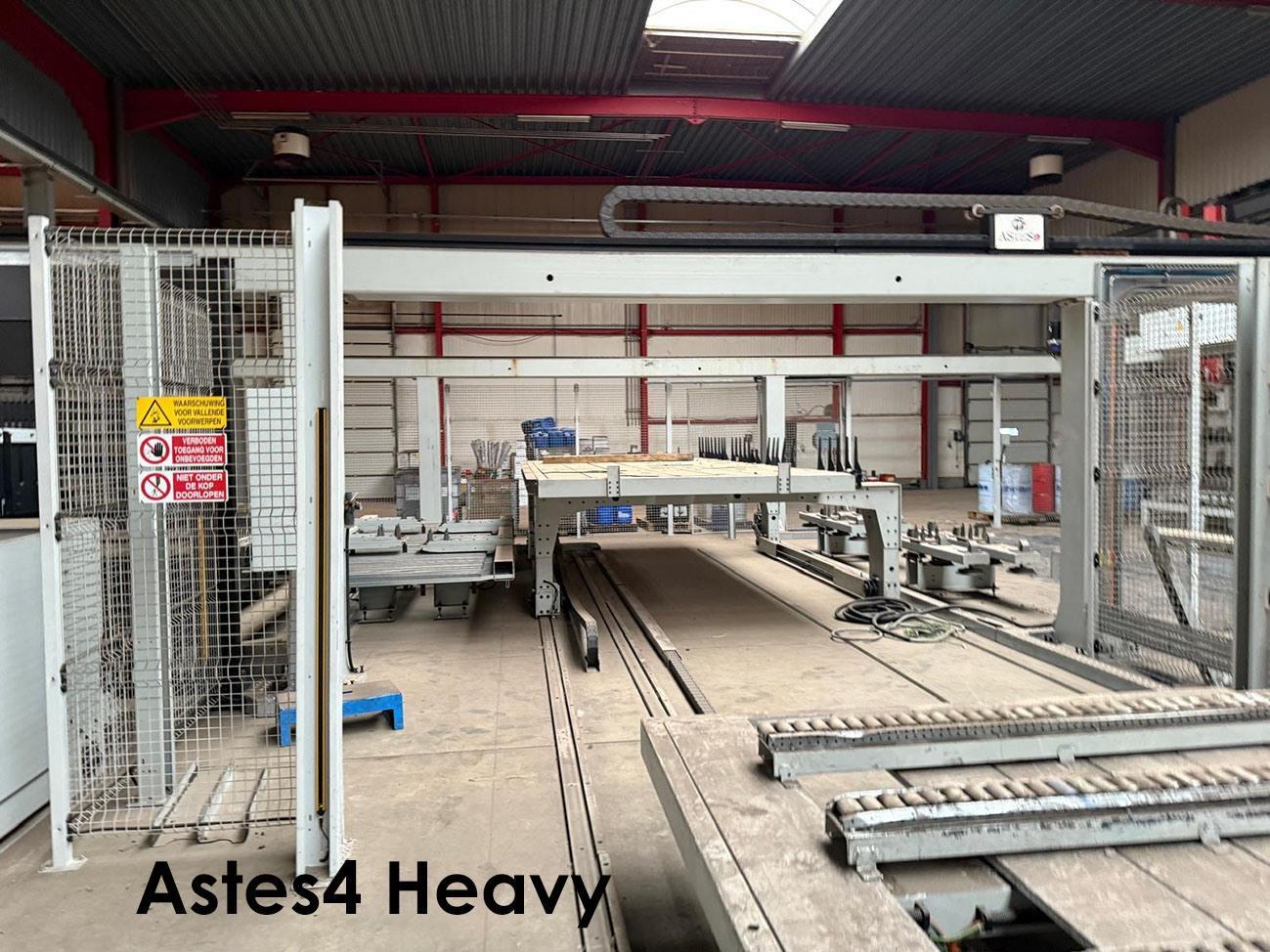

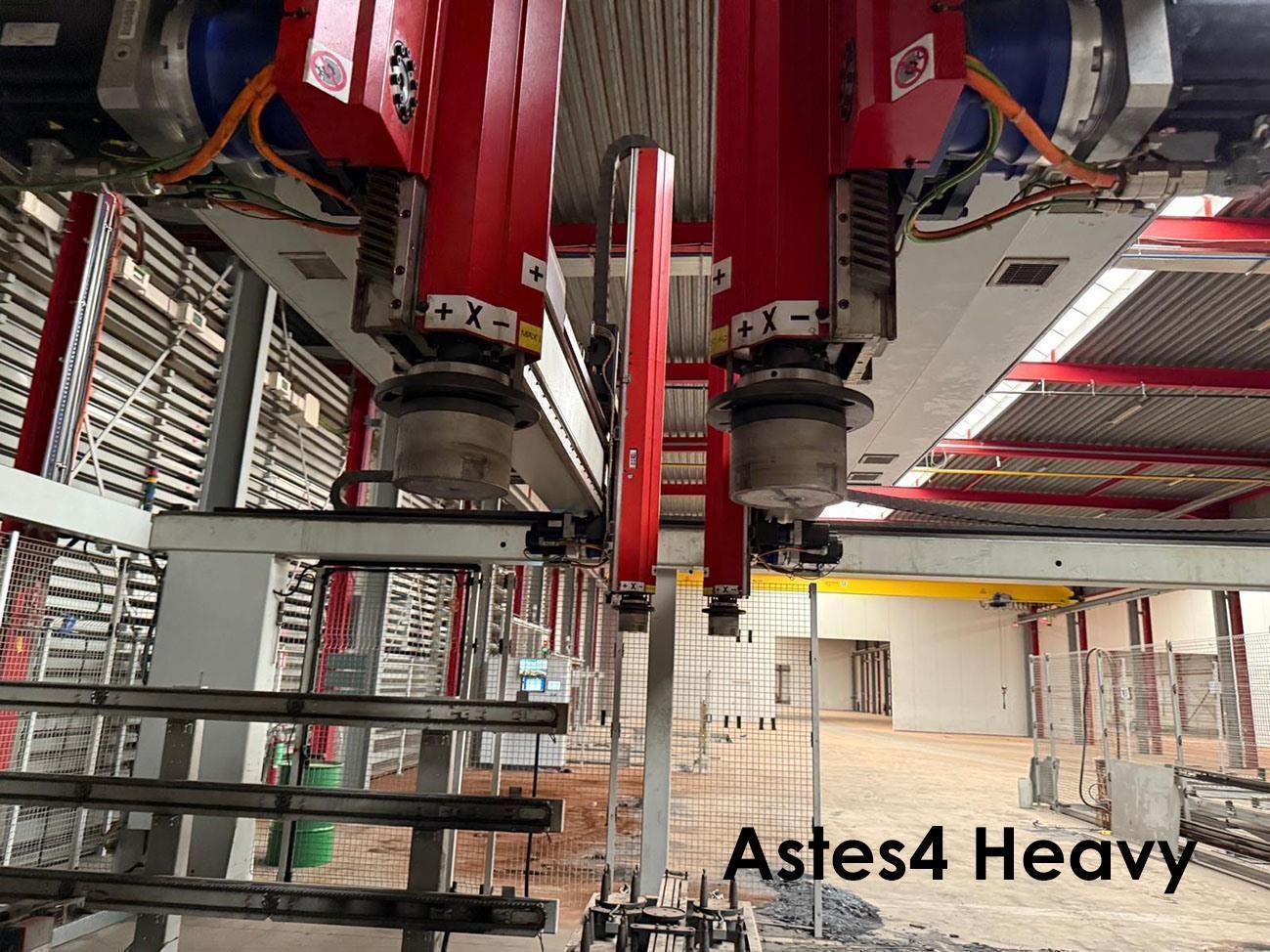

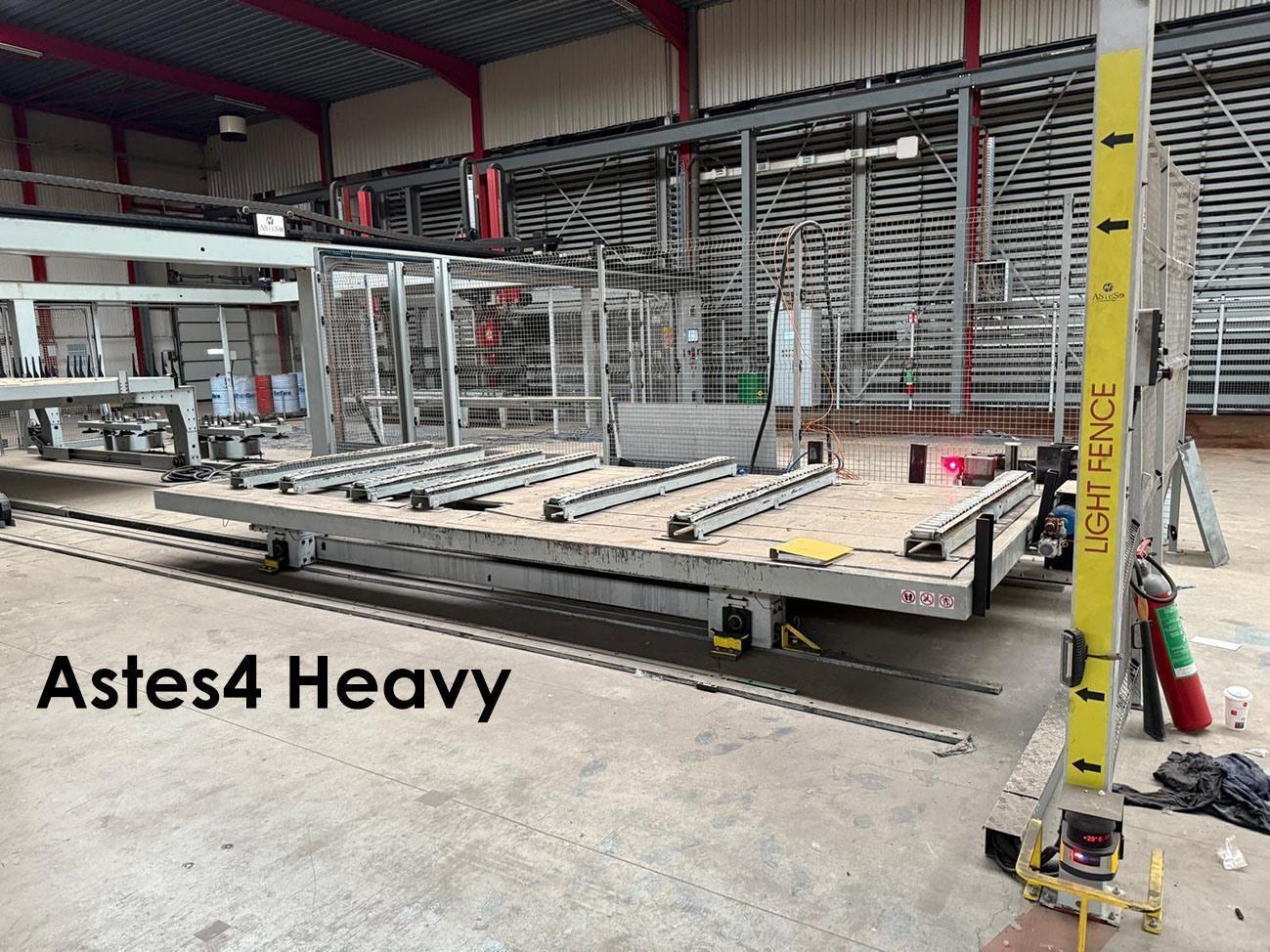

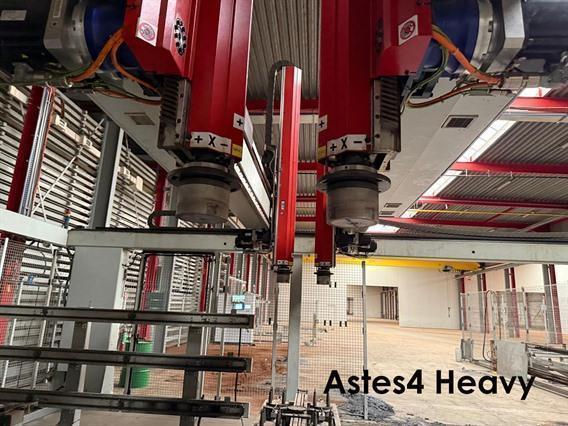

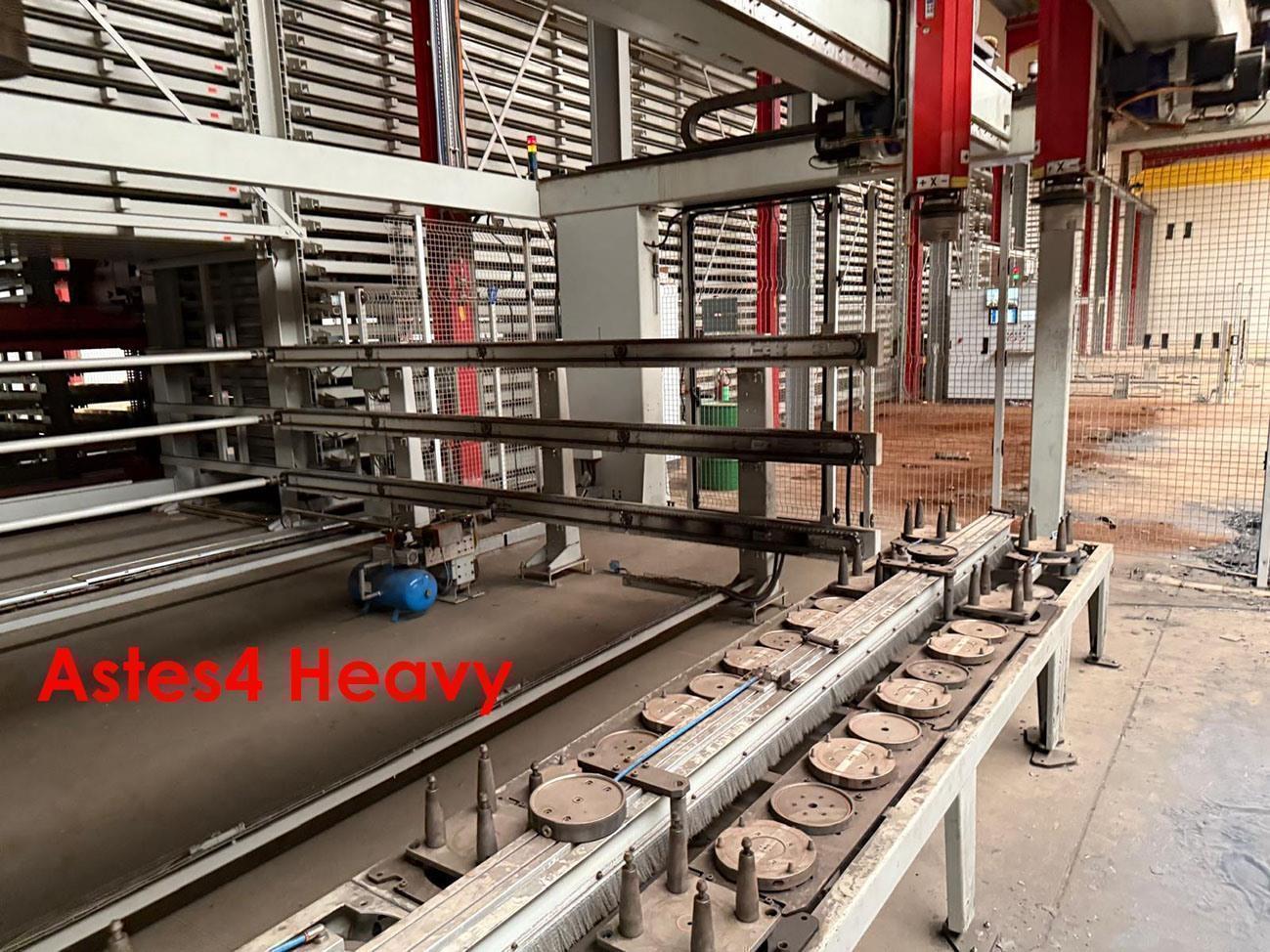

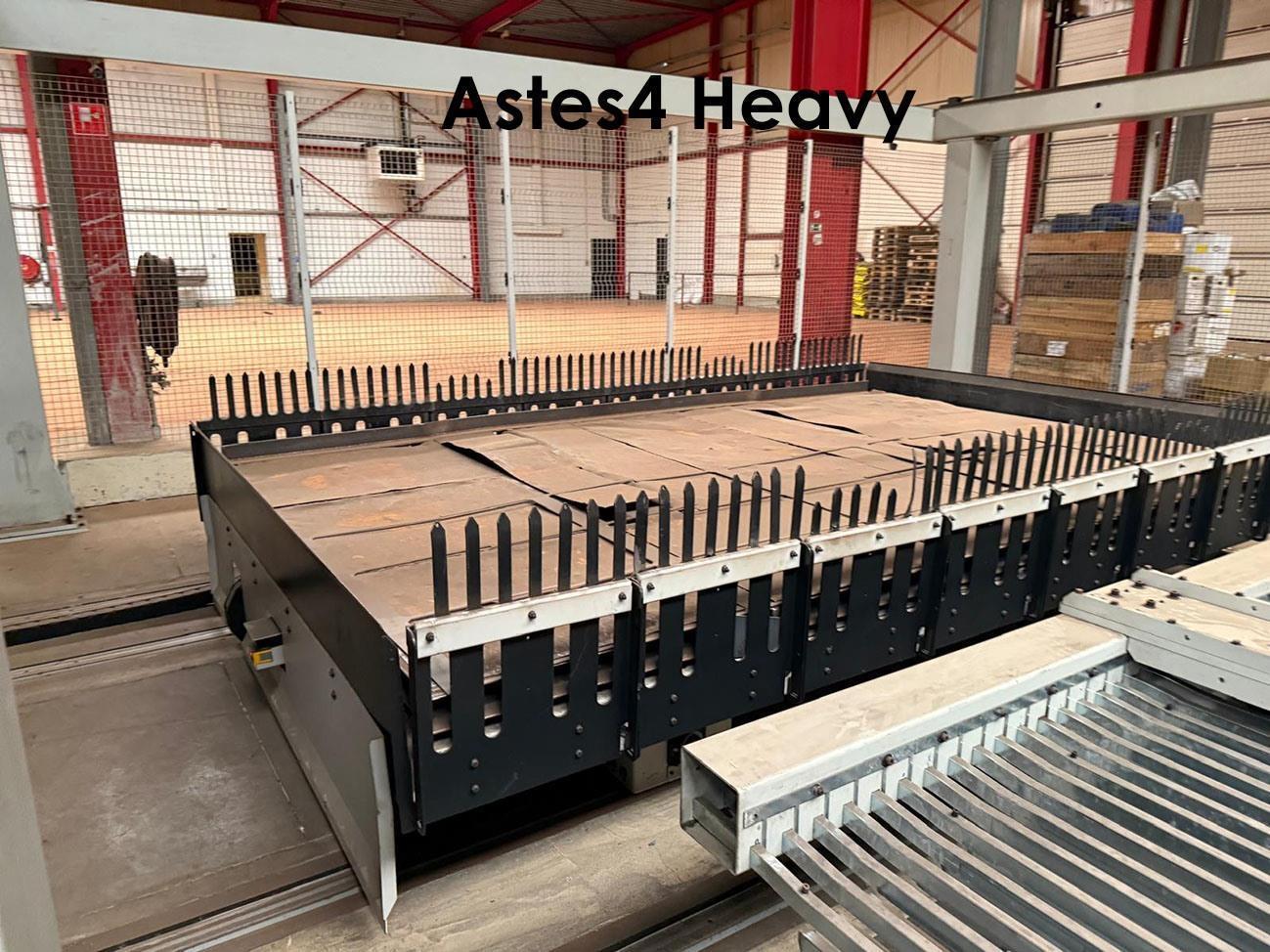

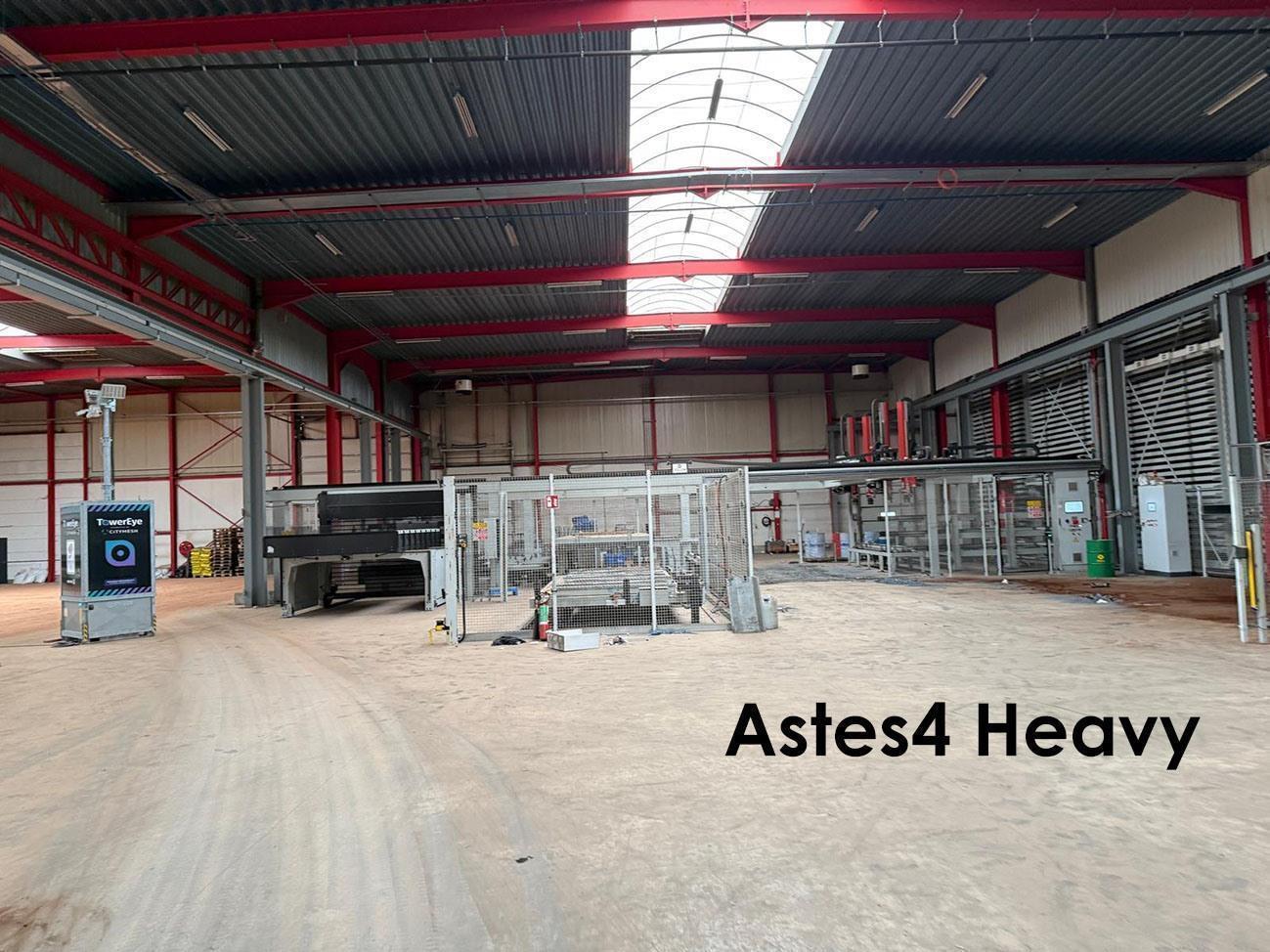

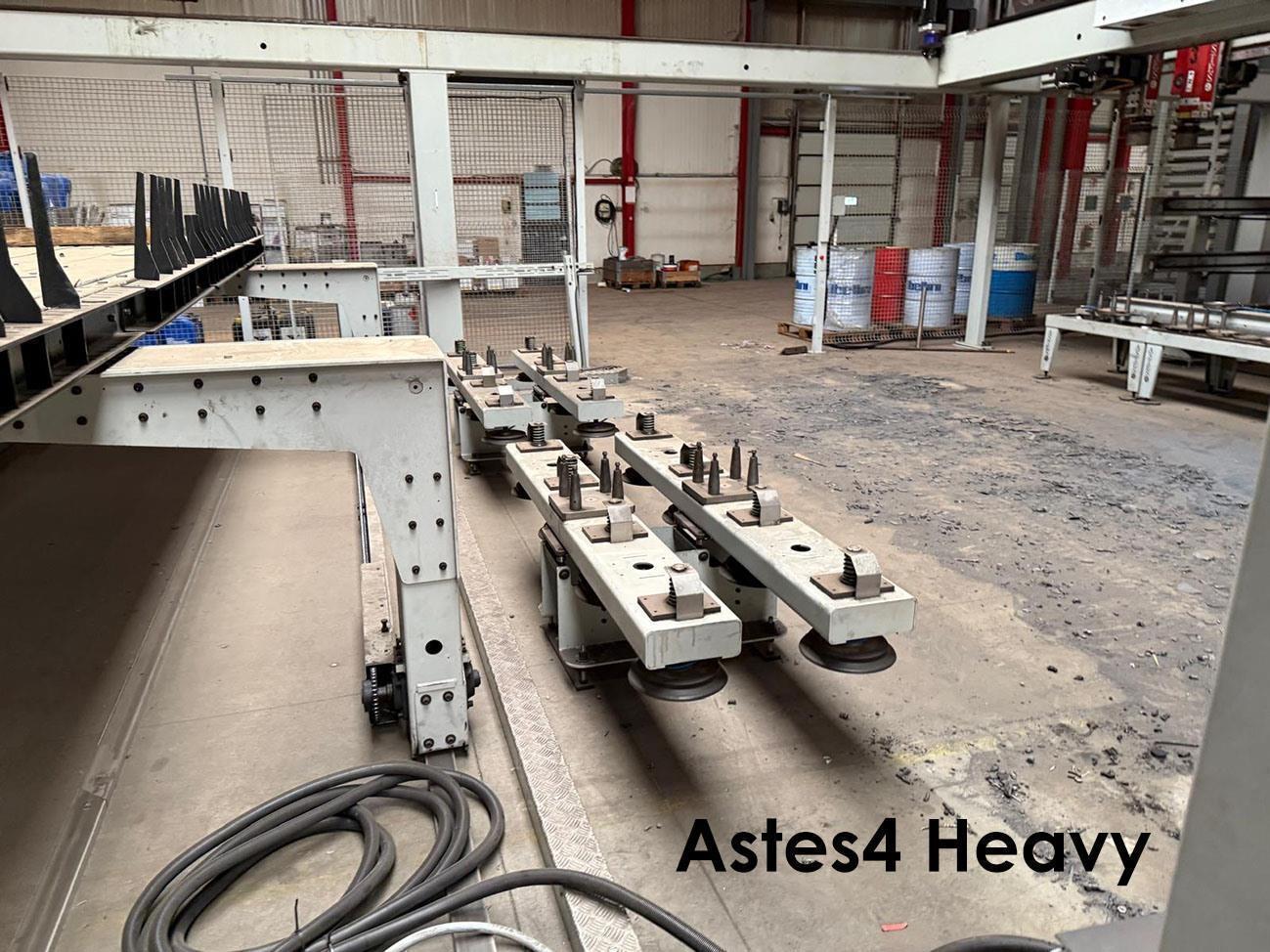

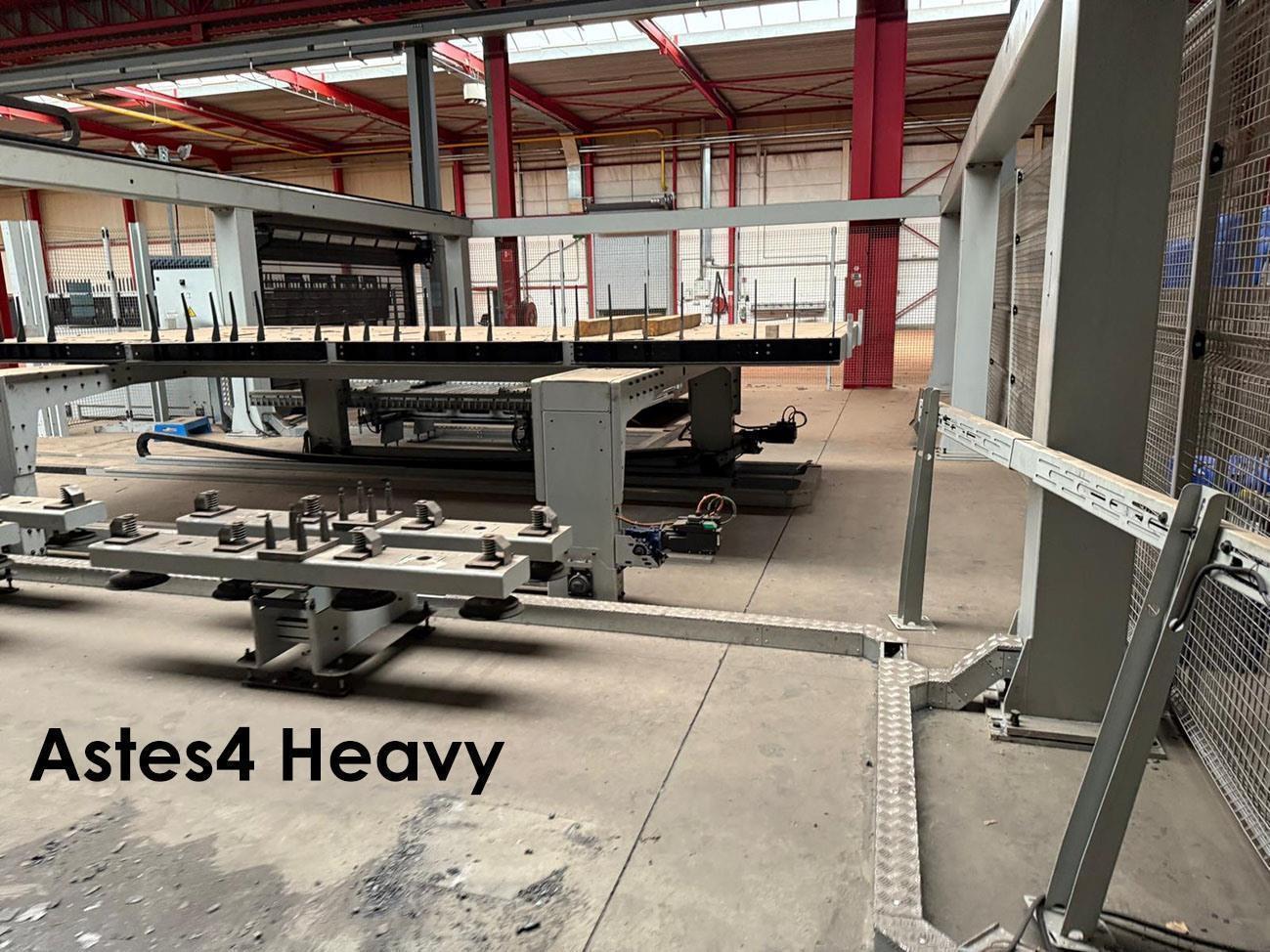

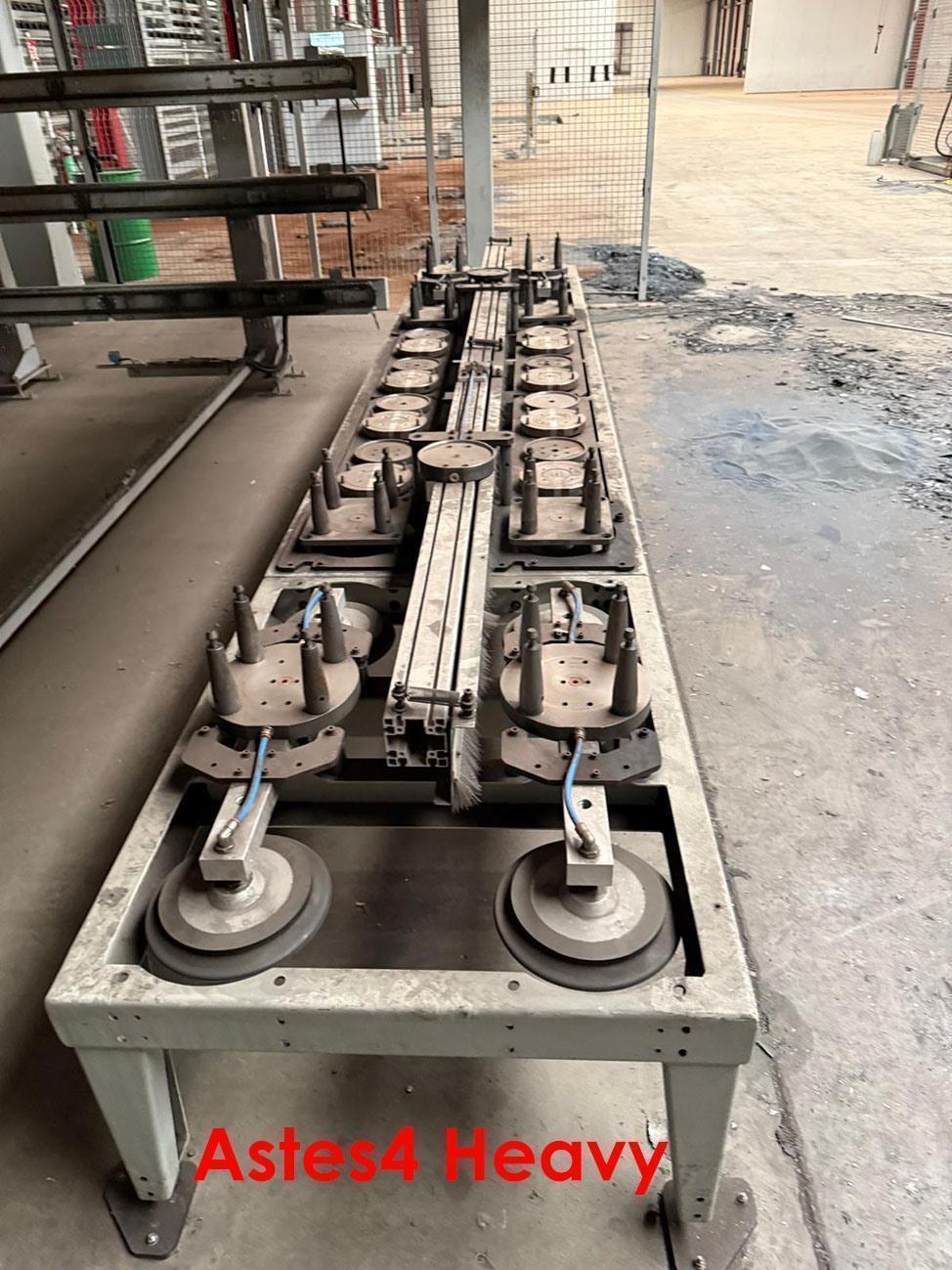

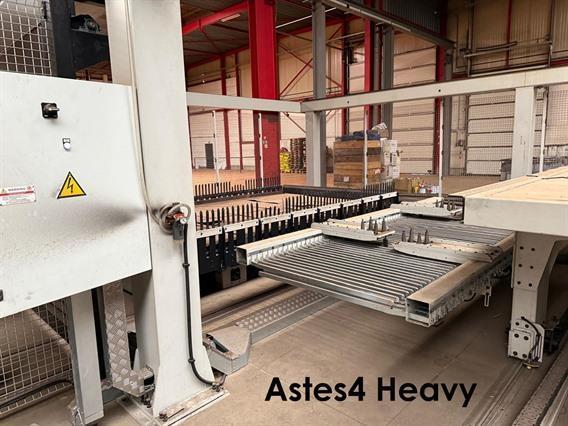

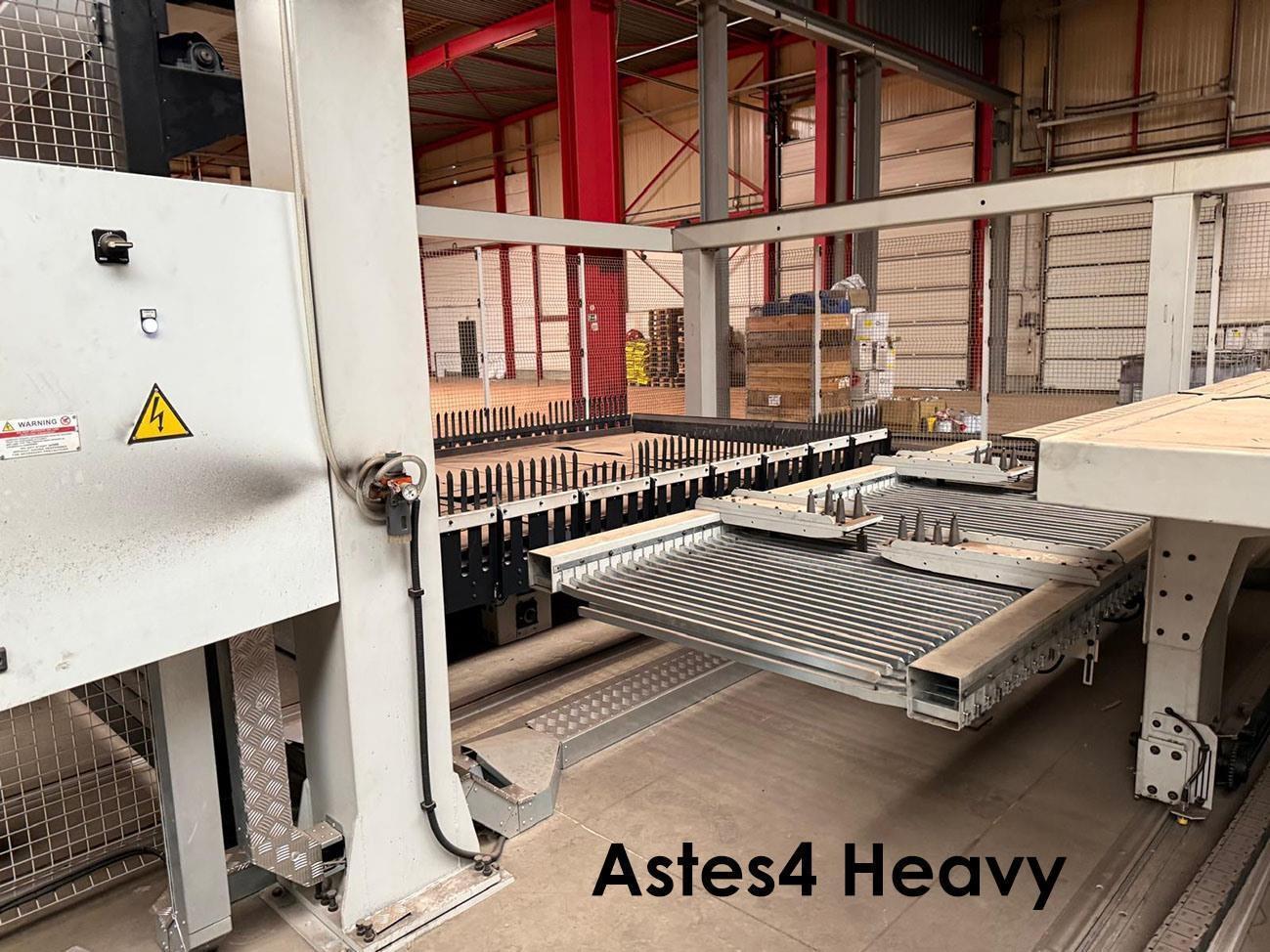

Astes4 Heavy Sorting system
for (un)loading on to laser cutting machine or on to pallets.
fully automated and unique parts picking and sorting technology, Astes4 significantly simplifies the process, preparing cut parts, thereby allowing smooth production flow with minimal logistics and human interference.
Equivalent to Stopa sheet metal storage system and Remmert sheet metal storage system
- Type/Model: Automated plate storage system
- Stocknumber: O.12 15859
- Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
- Sub category: [O.12] Laser cutting machines
- Brand: Astes4 / Tekmag
Stocknumber: O.12 15859
Watch video of working machinery
