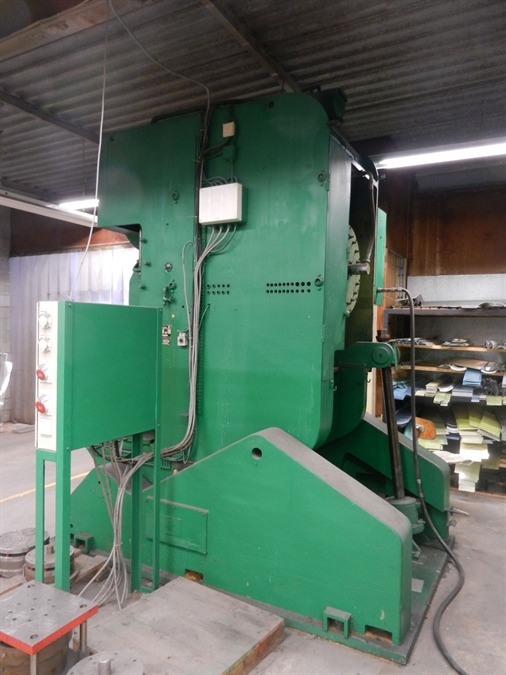

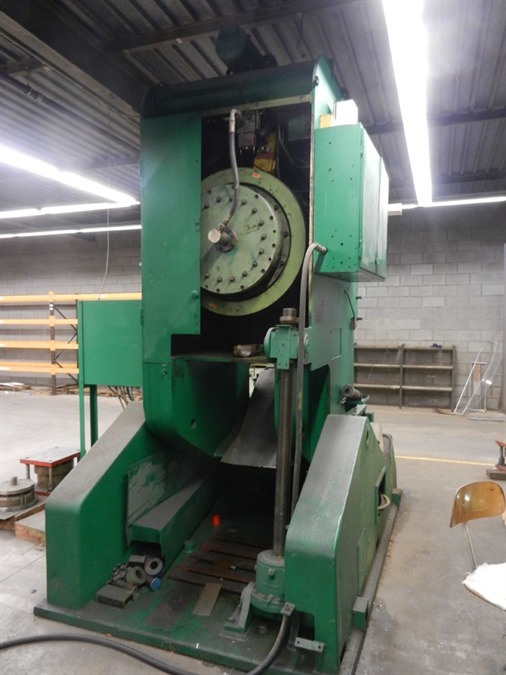

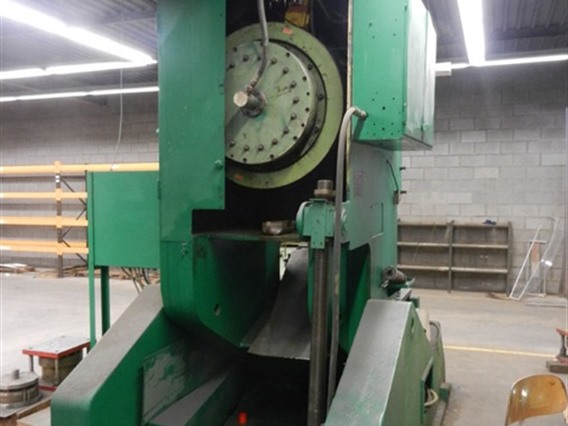

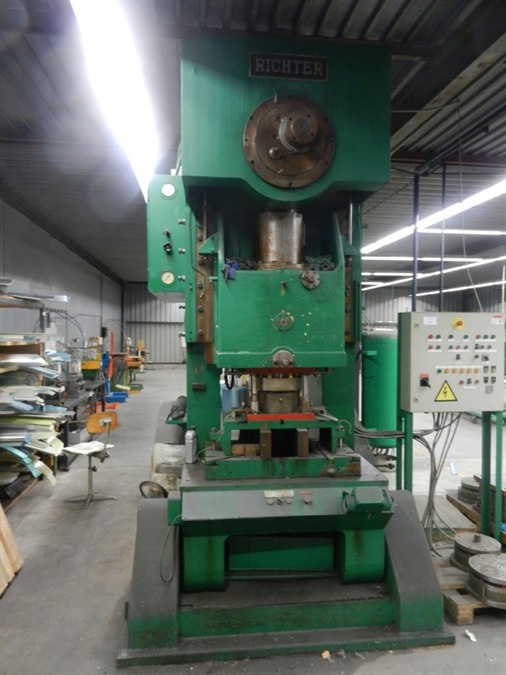

Open gap eccentric presses Adam richter 150 ton

Product added to your favorites

» Request a personalised quote

Technical information

Capacity150 ton
Clutchpneumatic
Deph of throat290 mm
Workingspeed30 str/min
Passage between uprights700 mm
Distance between table -- ram410 mm
Table area1000 x 630 x 80 mm
Dia table hole410 mm
Table fixed / sliding900 mm
Ram area (L x D)760 x 410 mm
Punchholder dia50 mm
Max ram adjustment100 mm
Frame inclinationyes
Electric motor (power)15 hp
Length 2500 mm
Depth 3000 mm
Hight4700 mm
Weight20 ton

Additional info

Type PEKRN150
airclutch
Type/Model: 150 ton
Stocknumber: N.05 7349
Main category: [N] Mechanical presses
Sub category: [N.05] Open gap eccentric presses
Brand: Adam richter

» Request a personalised quote

Stocknumber: N.05 7349

Download all pictures in ZIP
