Portal & Gantry milling machine & CNC Belotti RP 4525+CSL
Technical information
- Longitudinal travel X-axe4500 mm
- Cross travel Y-axe2500 mm
- Travel (height) Z-axe800 mm
- Dimensions Clamping space - table1420 x 2290 mm
- Universal (2 x 360°)+
- Max speedrangeto 24000 rpm
- Digital screenALLEN BRADLEY 10/330
- Power needed24kVa/ 230 V
- Length12000 mm
- Depth6500 mm
- Height4200 mm
- Weight8000 kg
- Number of tools4 tools
Additional info
- Special for plastic - alu moldings !
CNC operated cutting equipment, consist in:
1. Robot framework: on the top part of the portal runs the mobile bridge ( movement X) on board of which and perpendicular between them are the carriagages Y and Z.
2.Work table: single shuttle consisting in two tables moving simultaneously on a single slideway.
3.Processing unit:
- revolver holding 4 electro-spindles, with power ( 1x 4 hp + 1 x 3 hp + 1 x 2.2 hp + 1 x 1 hp). Each electro-spindles is independent with speed regulated by programme from 1000 to 24000 rpm, 5 axis simultaneously .

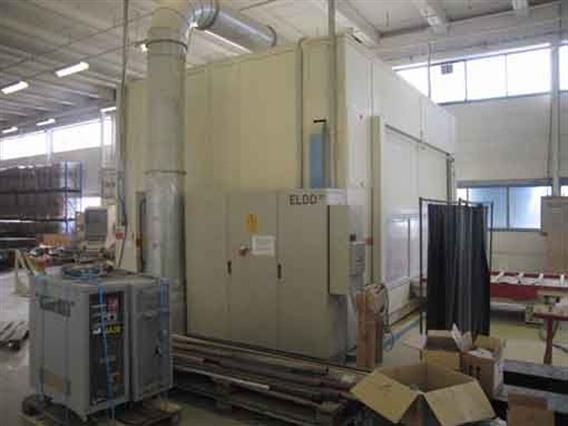

4.CABIN.
5.Electrical Cabinet: with IP 54 protection degree.

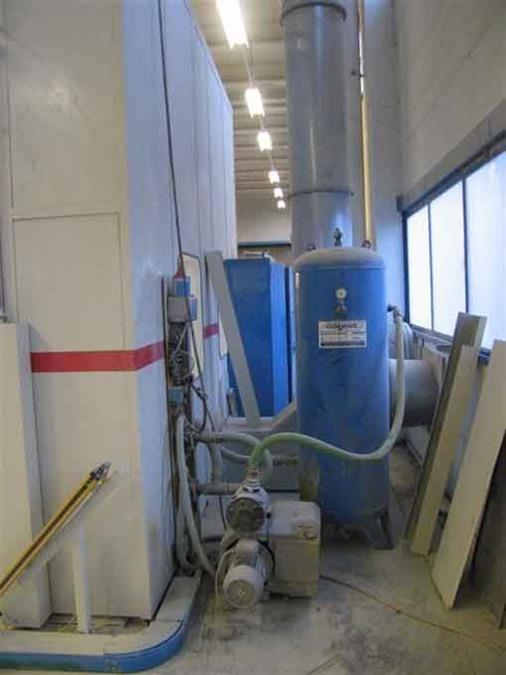

6.Vacuum plant: consist in a 160 m³/h high depression vacuum pump, filter, vacuometer and vacuum solenoid valves.
More information see below.
- Type/Model: RP 4525+CSL
- Stocknumber: B.06 3179 *07
- Main category: [B] Milling machines
- Sub category: [B.06] Portal & Gantry milling machine & CNC
- Brand: Belotti
