Wheelabrator KH3 1000 x 4000 mm 4 turbines
Technical information
- Kind offshot blasting unit
- Turbines4 turbines - 5,5 kW each
Additional info
entry dimensions: 1000 mm wide / 4000 mm high
max workpiece length: 3500 mm
max workpiece weight: 500 kg
Very specific concept of shot blasting chamber!

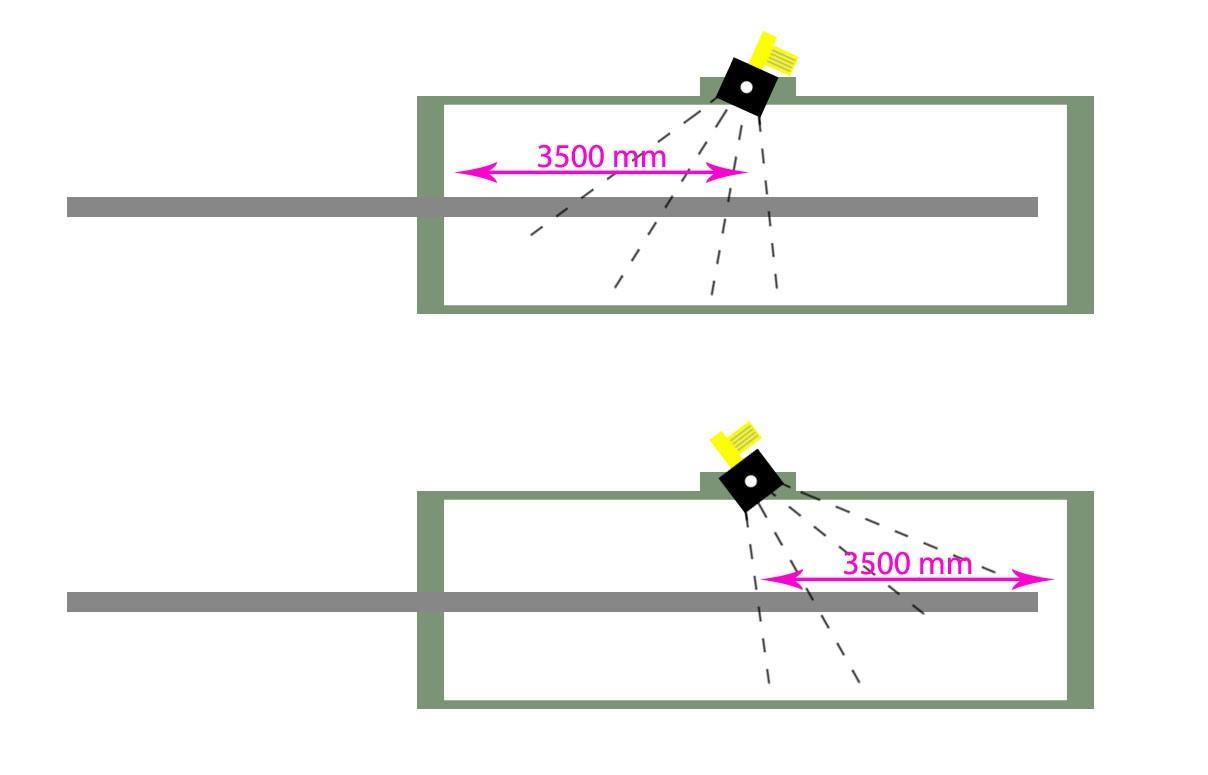

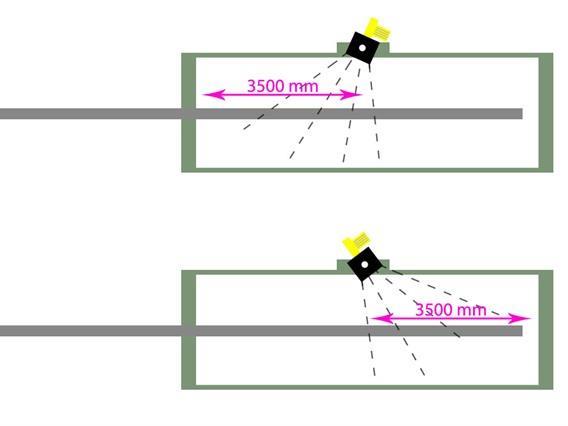

- 4 turbines mounted on vertical frame which can pivot (180°) to direct abrasive material in a specific direction
- ideal for complicated workpieces with lots of difficult areas/corners

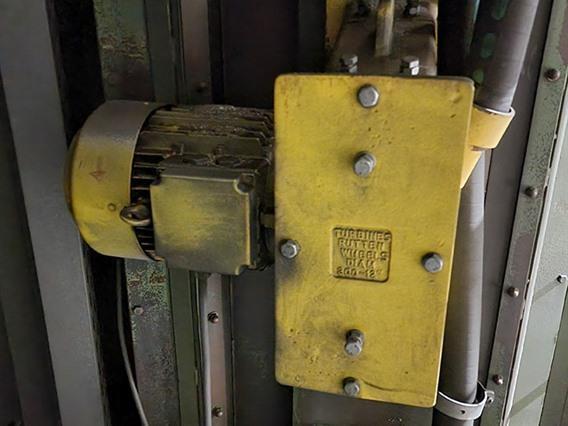

- 5,5 kW power for each turbine
1 > workpiece enters the chamber and one side is shotblasted
2 > workpiece can be turned in order to process the other side - the position of the turbines can be changed for best result
material speed: 63 m/sec
150 kg/min abrasive material per turbine
electric power: 45 kW
with recuperation and abrasive cleaner system
with Donaldson Torit filter
- Type/Model: KH3 1000 x 4000 mm 4 turbines
- Stocknumber: Y.05 12691
- Main category: [Y] Surface treatement machines, Finishing plant & equipment, Grit blasting machines, Sandblasting machines
- Sub category: [Y.05] Shot- & gritblasting
- Brand: Wheelabrator
