Pama ALB127 X: 2500 - Y: 1780 - Z: 1000mm CNC
Technical information
- Spindle Dia127 mm
- Spindle boreISO 50

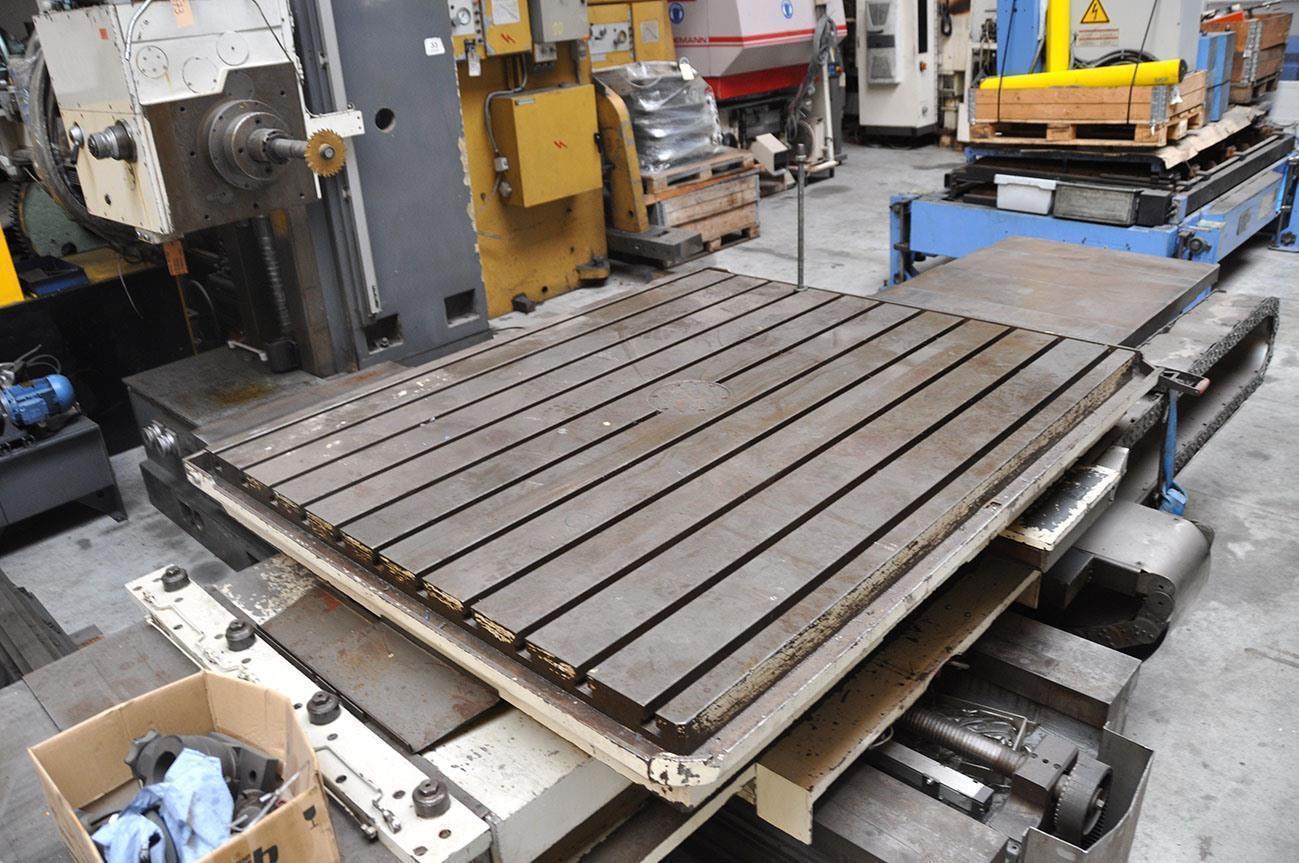

- Table dimensions 1780 x 1520 mm
- Table longitudinal travel (X-axis)2500 mm
- Cross travel Table/colom (Y-axis)1780 mm
- Height travel head (Z-axis)1550 mm
- Max travel spindle1000 mm
- Power on spindle22 kW (30 hp)
- Length 6000 mm
- Depth 7000 mm
- Height3800 mm
Additional info
Stocknumber: F.01 8473
Watch video of working machinery
