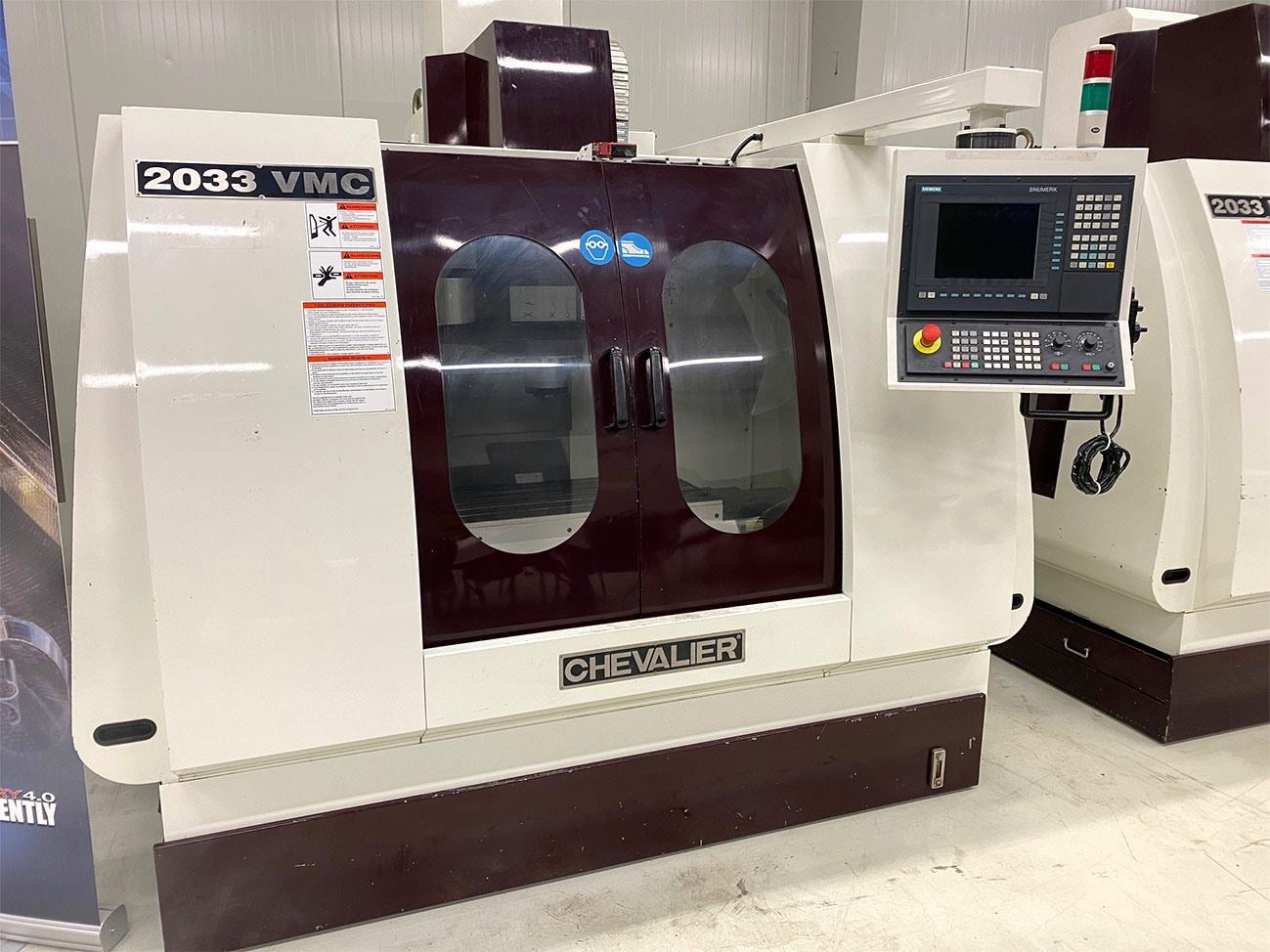

Centri di lavorazione verticali Chevalier X: 850 - Y: 510 - Z: 510 mm CNC

Name: Chevalier X: 850 - Y: 510 - Z: 510 mm CNC
Brand: Chevalier
SKU: D.01 15923

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

X-axis850 mm
Y-axis510 mm
Z-axis510 mm
Table dimensions1000 x 450 mm
Depth of throat (uprights-spindlecenter)550 mm
Admission in spindle (ISO)ISO 40
Power on the spindle7,5 kW

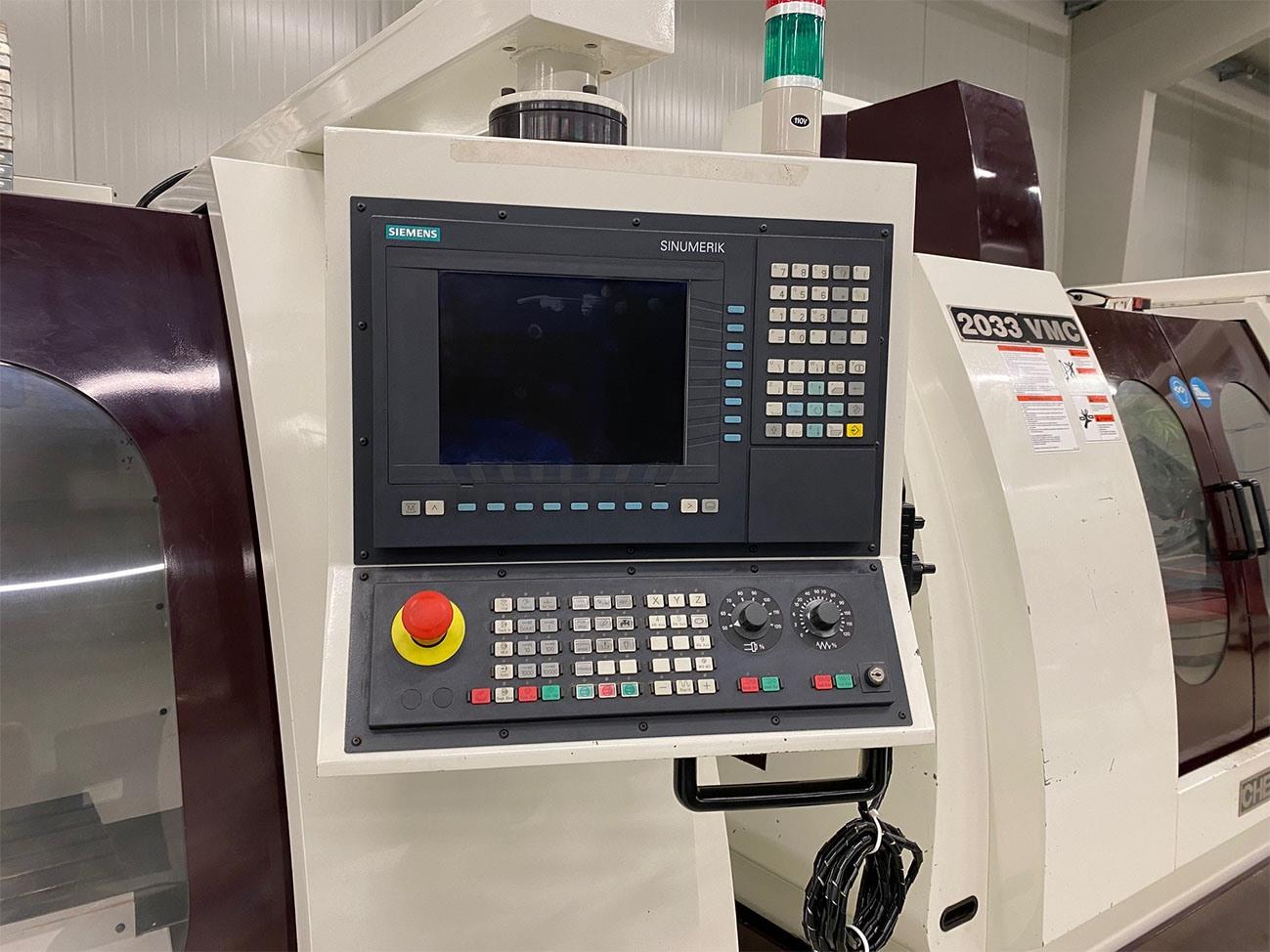

Control Siemens 810
Number of axes3 axes
Toolchangeryes
Number of toolholders20 positions
Number of rotations8000 rpm
Power principal motor 15 kVa
Length2480 mm
Depth2740 mm
Height2220 mm
Weight4,5 ton
ACCESSORIESyes

Informazioni supplementari

distanza tra mandrino e tavola: 150 > 660 mm
Siemens dotato di ShopMill
Tipo/Modello: X: 850 - Y: 510 - Z: 510 mm CNC
Numero di magazzino: D.01 15923
Categoria: [D] Centri di lavorazione
Sottocategoria: [D.01] Centri di lavorazione verticali
Il marchio: Chevalier

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: D.01 15923

+++BekijkVideoWerkendeMachine+++

Chevalier X: 850 - Y: 510 - Z: 510 mm CNC

Scaricare tutte le foto in ZIP
