Vertical machining centers Chevalier X: 850 - Y: 510 - Z: 510 mm CNC

Name: Chevalier X: 850 - Y: 510 - Z: 510 mm CNC
Brand: Chevalier
SKU: D.01 15923

Product added to your favorites

» Request a personalised quote

Technical information

X-axis850 mm
Y-axis510 mm
Z-axis510 mm
Table dimensions1000 x 450 mm
Depth of throat (uprights-spindlecenter)550 mm
Admission in spindle (ISO)ISO 40
Power on the spindle7,5 kW

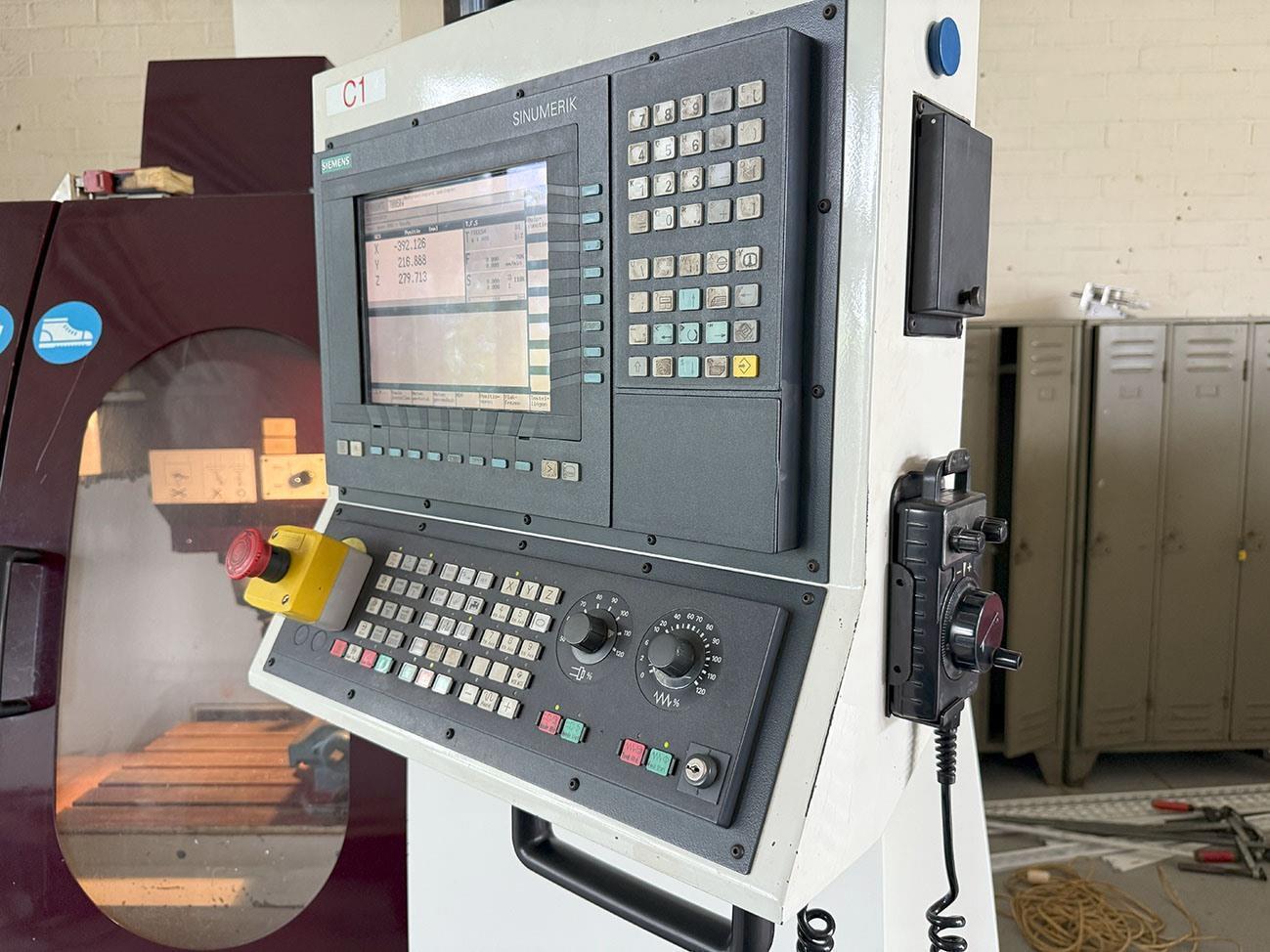

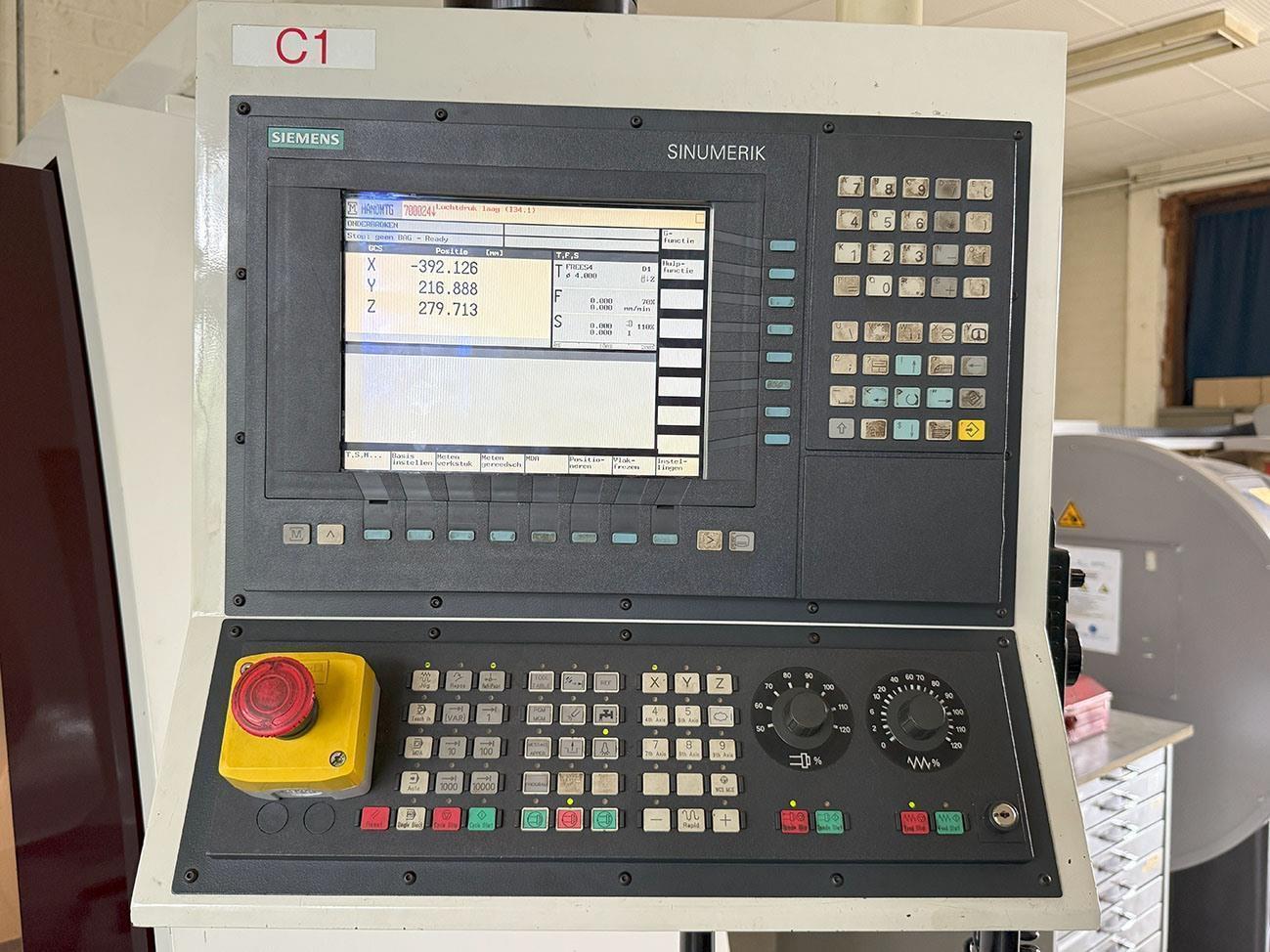

Control Siemens 810
Number of axes3 axes
Toolchangeryes

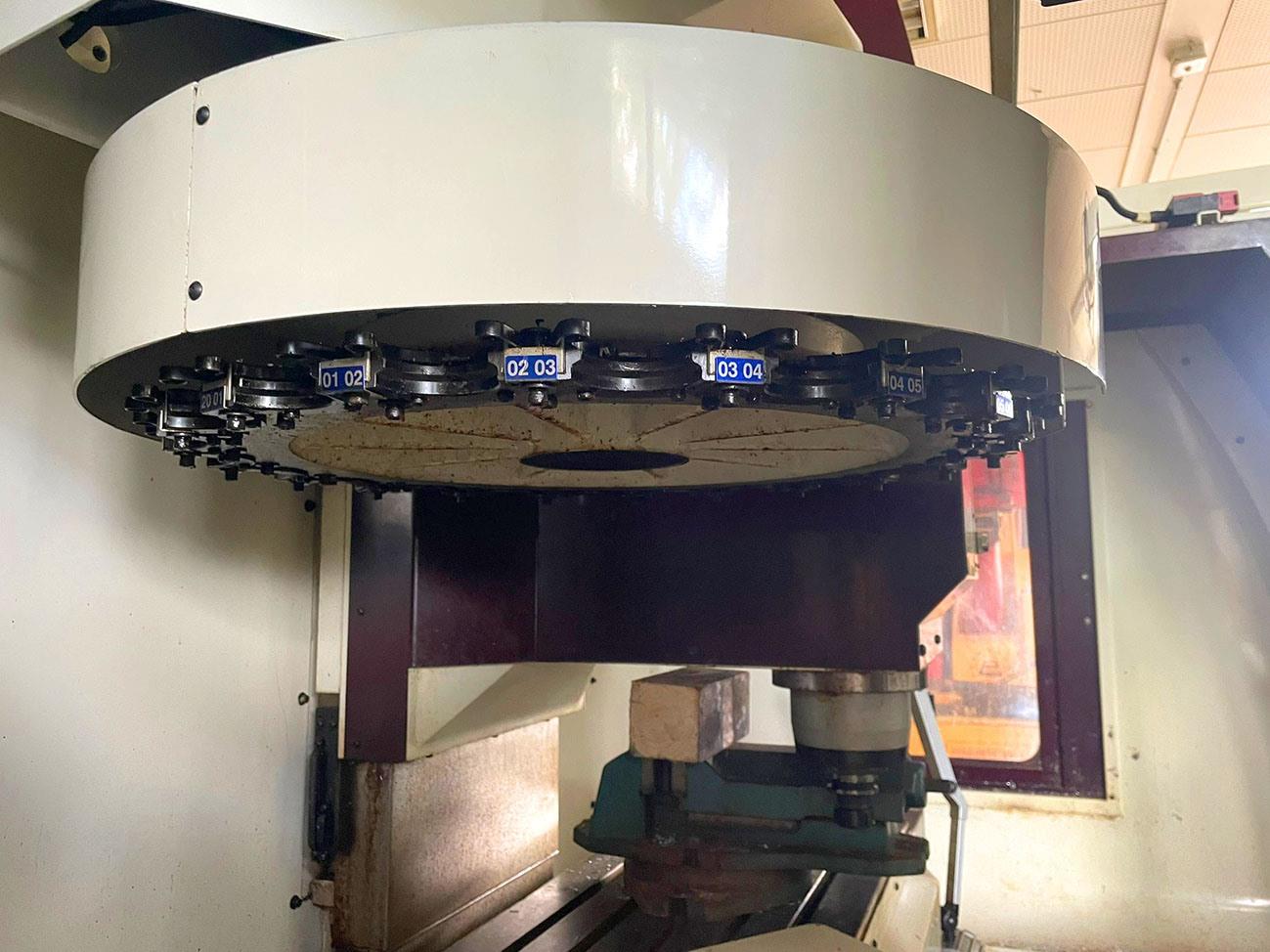

Number of toolholders20 positions
Number of rotations8000 rpm
Power principal motor 15 kVa
Length2480 mm
Depth2740 mm
Height2220 mm
Weight4,5 ton
ACCESSORIESyes

Additional info

distance between spindle and table: 150 > 660 mm
Siemens fitted with ShopMill
Type/Model: X: 850 - Y: 510 - Z: 510 mm CNC
Stocknumber: D.01 15923
Main category: [D] Machining centres
Sub category: [D.01] Vertical machining centers
Brand: Chevalier

» Request a personalised quote

Stocknumber: D.01 15923

Watch video of working machinery

Chevalier X: 850 - Y: 510 - Z: 510 mm CNC

Download all pictures in ZIP
