Cloos Romat 310 welding unit for big pieces

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Ek bilgi

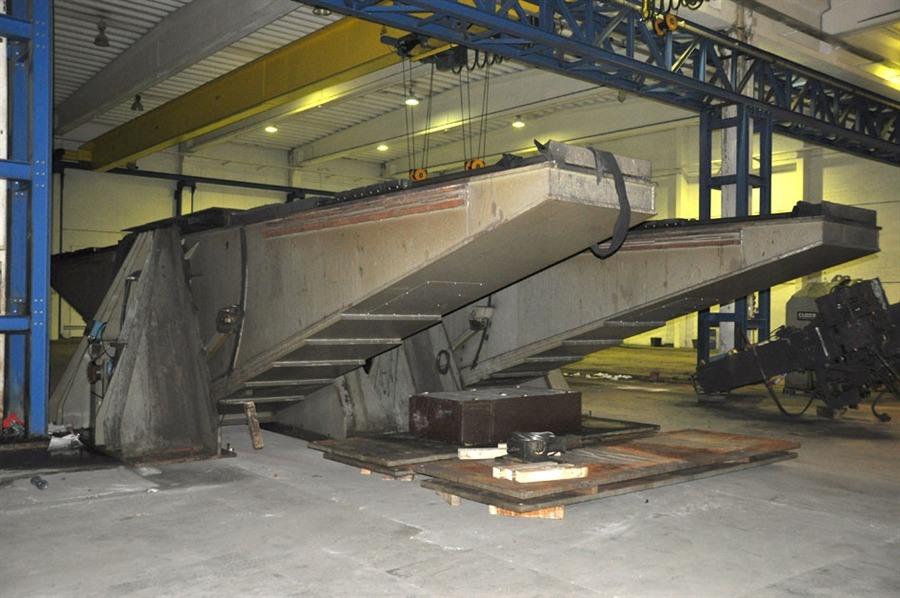

Welding robot for big pieces

The welding manipulators holding the workpiece can tilt up and down (max 45°) in order for the robot to be able to weld straight on the workpiece. This ensures the best possible weld.

Cloos Romat 310 - 11 axes

Rotrol 32 TM

X-travel of robot: 11 000 mm

Depth of throat: 2000 mm

Max distance under robot: 3000 mm

Max distance between manipulators: 10 000 mm

Centerdistance of manipulators: 1750 mm

each manipulator has a movement of 4000 mm

Max height of workpiece: 3500 mm

Max weight of workpiece: 25 ton

2 Cloos GLC 5033 Quinto welding scources linked in series to attain 1000 amp

dimensions: 16 000 x 8000 x 7000 mm (foundation is needed)
Tip/Model: welding unit for big pieces
Stok numarası: V.03 8385
Kategori: [V] rulopatronlu kaynak, manipülatorlar, robotlar, kaynak fıskıyeleri, kaynak tezgahları.
Alt kategori: [V.03] Lasrobots
Marka: Cloos Romat 310

» Kişisel fiyat talep edin

Stok numarası: V.03 8385

İş makinasının videosunu görüntüle

Cloos Romat 310 welding unit for big pieces

ZIP formatındaki tüm fotoğrafları indirin
