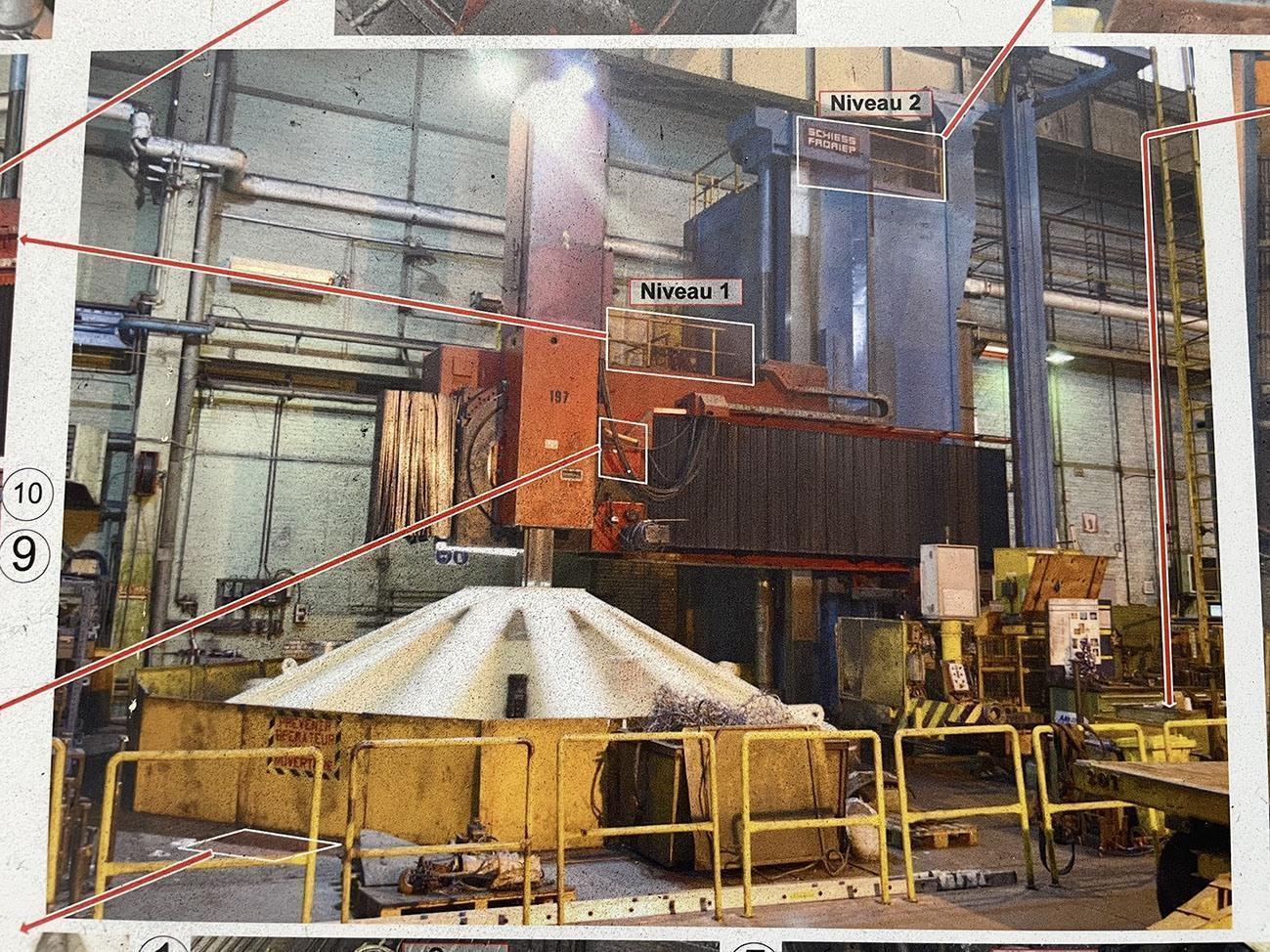

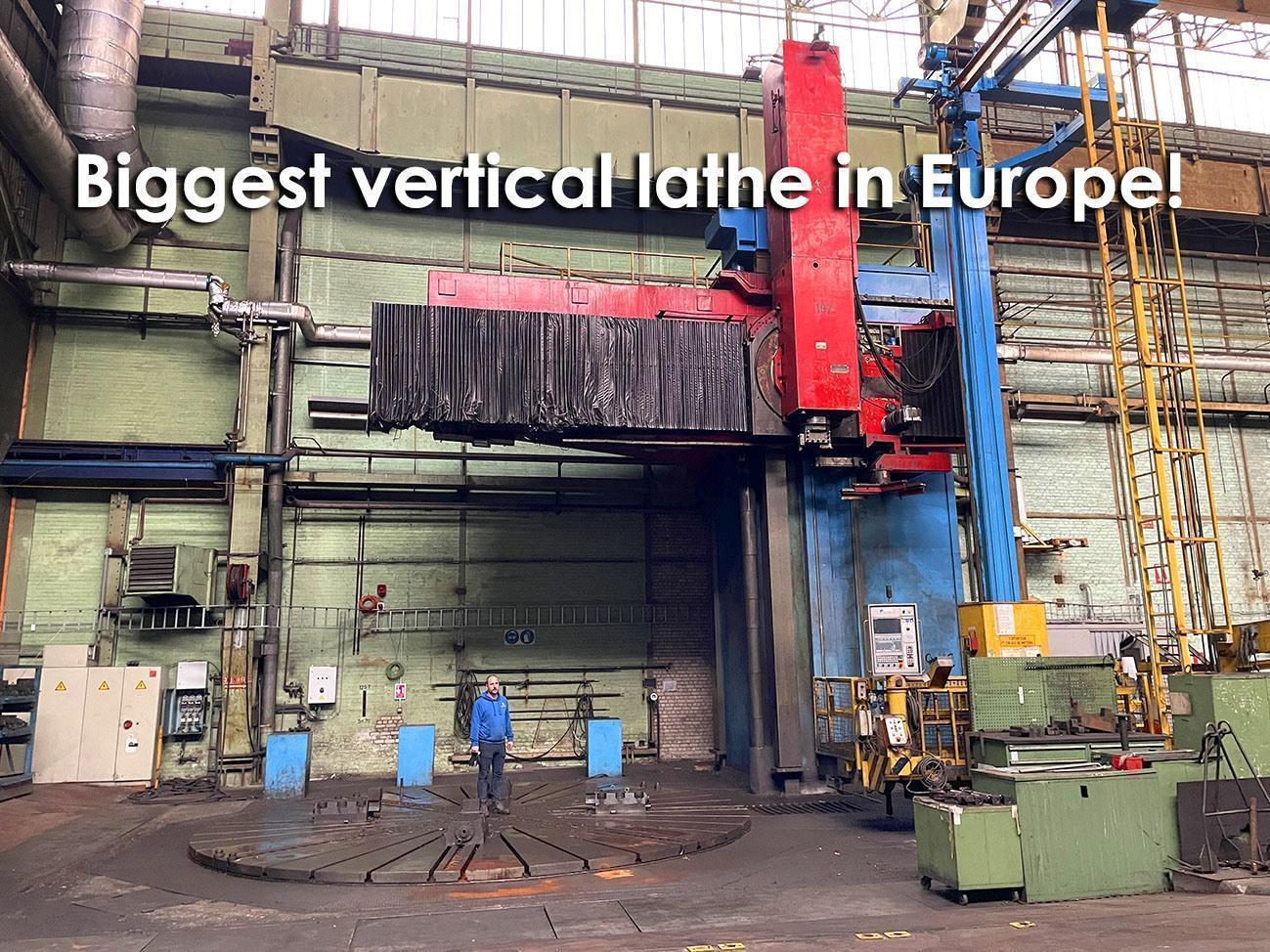

Schiess 80 DF Type: 80 DF 700/900-550/280 Original CNC machine from Schiess (not a conversion from conventional to CNC) Fully hydrostatic machine Welded column Siemens motor Equipped with operator lift to be able to see top of workpiece Very high tolerance machine Table diameter: 7000 mm Max diameter of workpiece: 9000 mm Max load: 315 tons Speed: 0.25 > 25 rpm Max rotational torque: 63 000 kgm Max cutting force with ram extended to 900 mm: 12 500 kg Toolhead can incline -40° to +40° Power: 125 kW weight of table: 71 tons Ram section: 380 x 380 mm Horizontal travel of ram from center of table: 5640 mm Vertical travel of ram: 2800 mm Max height under cross beam: 5547 mm Horizontal travel or cross beam: 4700 mm Equipped with automatic tool changer with 3 positions Total weight of machine: 260 tons!
